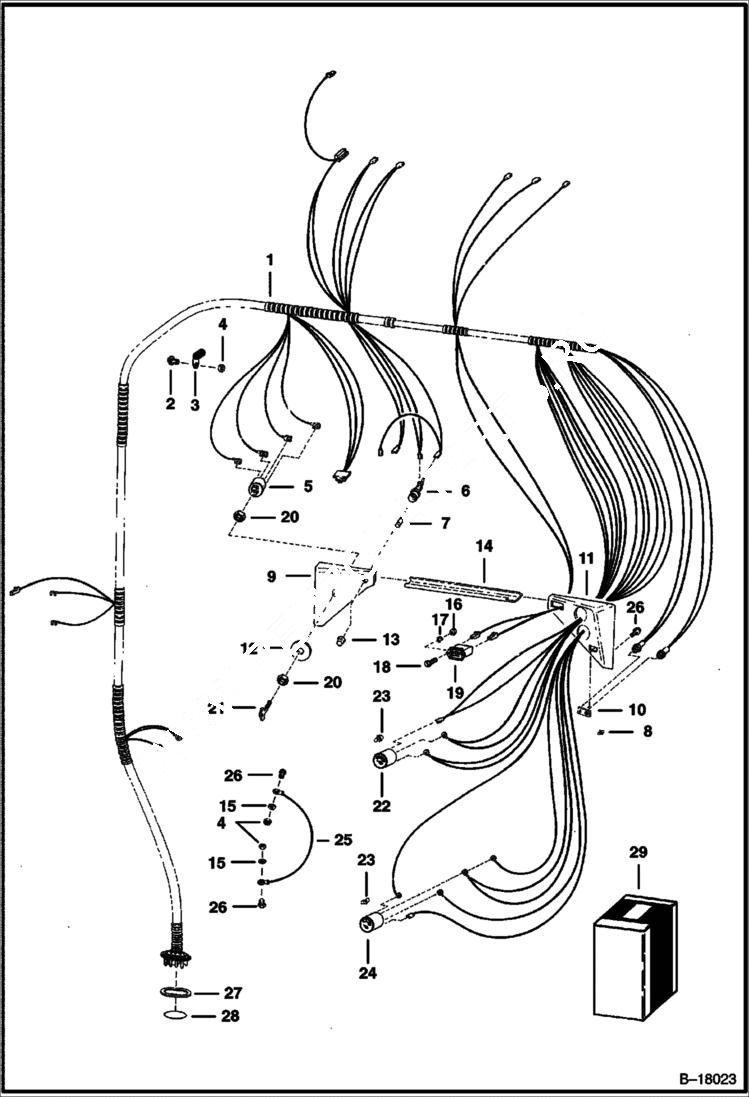

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6531619

HARNESS

2

17C512

BOLT 5

3

30H45

CLIP

4

61D5

NUT

5

SWITCH See BTI289 NLA - ignition - Order Ref. 29 - Was 6519592 - A

5

6665606

SWITCH ignition

6

6513469

HOLDER

7

1319451

FUSE 5

8

6572065

BULB

9

6531615

PANEL

10

6572056

LENS

11

6531551

PANEL

12

6703705

PLATE brake start - for NLA/6519592 switch - Was 6563431 - A

12

6709028

PLATE brake start - for 6665606 switch - Was 6708701 - A

13

6514642

CAP

14

6531618

CROSSMEMBER

15

25E15

WASHER

16

12D6

NUT 10

17

12E6

WASHER

18

65G608

SCREW

19

6664886

HOURMETER Was 6631657 - A

20

6598721

NUT for NLA/6519592 Switch

20

6674202

NUT for 6665606 Switch

21

6512809

KEY for NLA/6519592 Switch

21

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

21

6693241

KEY 10 ignition - single key W/O ring

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

6599696

SOCKET & BULB assy.

23

895771

#161 BULB

24

GAUGE NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

24

6669663

GAUGE eng temp - W/O clamp

25

6594283

WIRE ground

26

84G3112

BOLT 5

27

6564590

FLANGE

28

25K40100

O RING 10

29

6724282

SWITCH KIT
