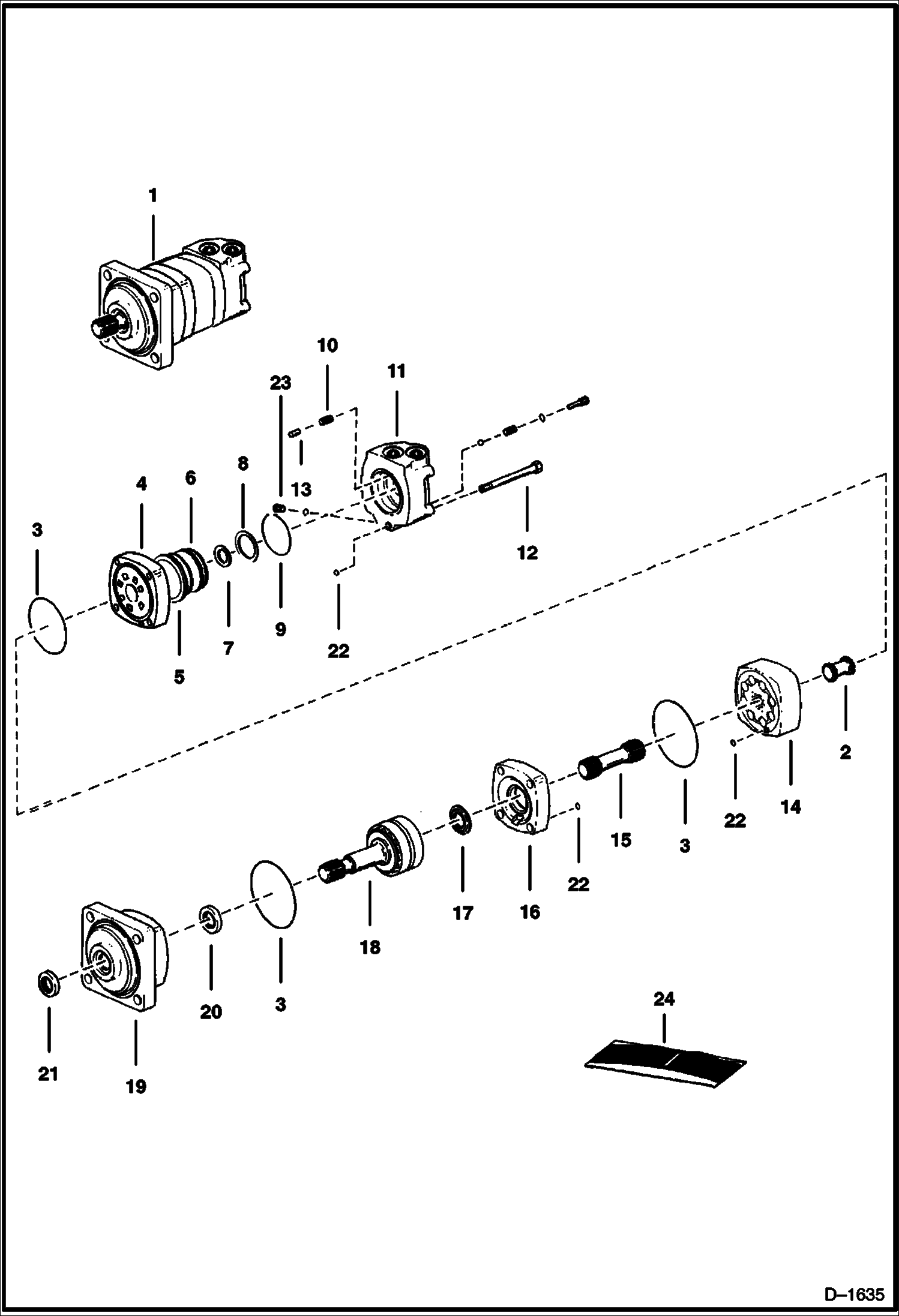

Запчасти Bobcat 400s HYDROSTATIC MOTOR (105-1102-006) HYDROSTATIC SYSTEM

1

6632177

MOTOR, DRIVE HYD

1

MOTOR NLA - Reman. - Order 6632177 - Was 6630506 - A

2

1992084

DR VALVE

3

SEAL NSS

4

6632287

PLATE Valve

5

6632288

VALVE

6

6630027

BALANCE RING balancing

7

SEAL NSS - inner

8

SEAL NSS - outer

9

SEAL NSS

10

1992088

SPRING

11

6632348

HOUSING W/Ref. 23 & 24

12

6632349

BOLT

13

1992102

PIN

14

6632347

GEROLER

15

6630032

SHAFT

16

6632286

WEAR PLATE wear

17

O-RING NSS

18

6632345

SHAFT ASSY W/Shaft

19

6632346

HOUSING

20

SEAL NSS

21

SEAL NSS

22

O-RING NSS

23

1992104

PLUG W/O-Ring

24

6648973

KIT, SEAL Ref. 3, 7-9, 17 & 20 - 22
