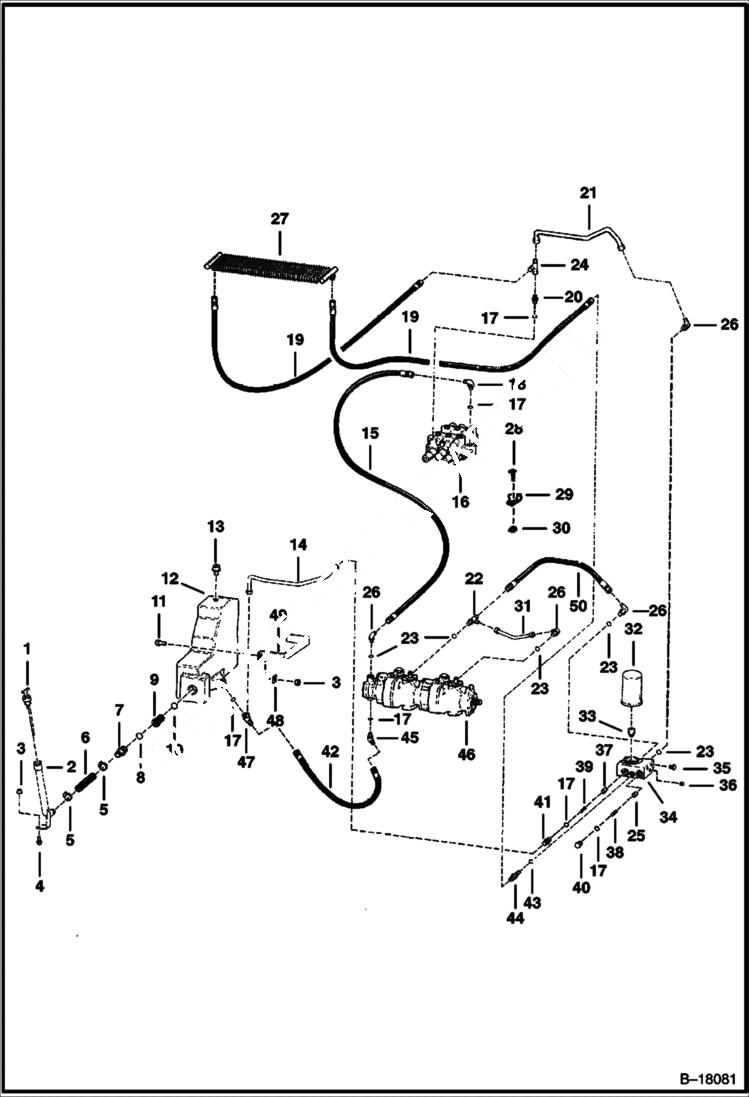

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6564143

DIPSTICK

2

6564146

TUBE

3

85D6

NUT, 5

4

84G3716

SCREW 5

5

44H20

CLAMP Was 6666864 - A

6

6673824

HOSE BULK/FOOT Was 1310810 - A

7

1578365

FITTING

8

79K20

O RING 10

9

6564059

SCREEN

10

25K40108

O RING 10

11

17C620

BOLT

12

6564006

TANK

13

7025626

VENT, BREATHER - Was 6684923 - A

14

6532575

TUBE

15

6530857

HOSE

16

VALVE See Illustration HYDRAULIC VALVE/ B9634

17

79K10

O RING 10

18

6565505

ELBOW

19

6532572

HOSE

20

731794

CONNECTR

21

6532576

TUBE

22

21K6

FITTING W/Ref. 23

23

79K8

O RING 10

24

13K6

TEE

25

6565620

POPPET

26

17K6

ELBOW W/Ref. 23

27

6564086

OIL COOLER

28

10C512

BOLT Was 6553808 - A

29

30H41

CLIP

30

61D5

NUT

31

6564119

TUBE

32

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6599543 - A

33

6563977

INSERT

34

BLOCK NLA - Order 6725968 & 1-47K-6 Plug - Was 6531676 - A

34

BLOCK NLA - Was 6725968 - A

35

17C612

BOLT 5

36

40K2

PLUG

37

6734350

POPPET Was 6562654 - A

38

6532403

SPRING

39

6563978

SPRING

40

6561811

PLUG

41

6562656

ADAPTER

42

6714728

HOSE Was 6701002 - A

43

79K6

O RING 10

44

755056

CONNECTR

45

17K7

ELBOW W/Ref. 17

46

PUMP See Illustration HYDROSTATIC PUMP/ B17883

47

21K7

TEE W/Ref. 17

48

6559447

WASHER

49

6564151

BAND

50

6532571

HOSE
