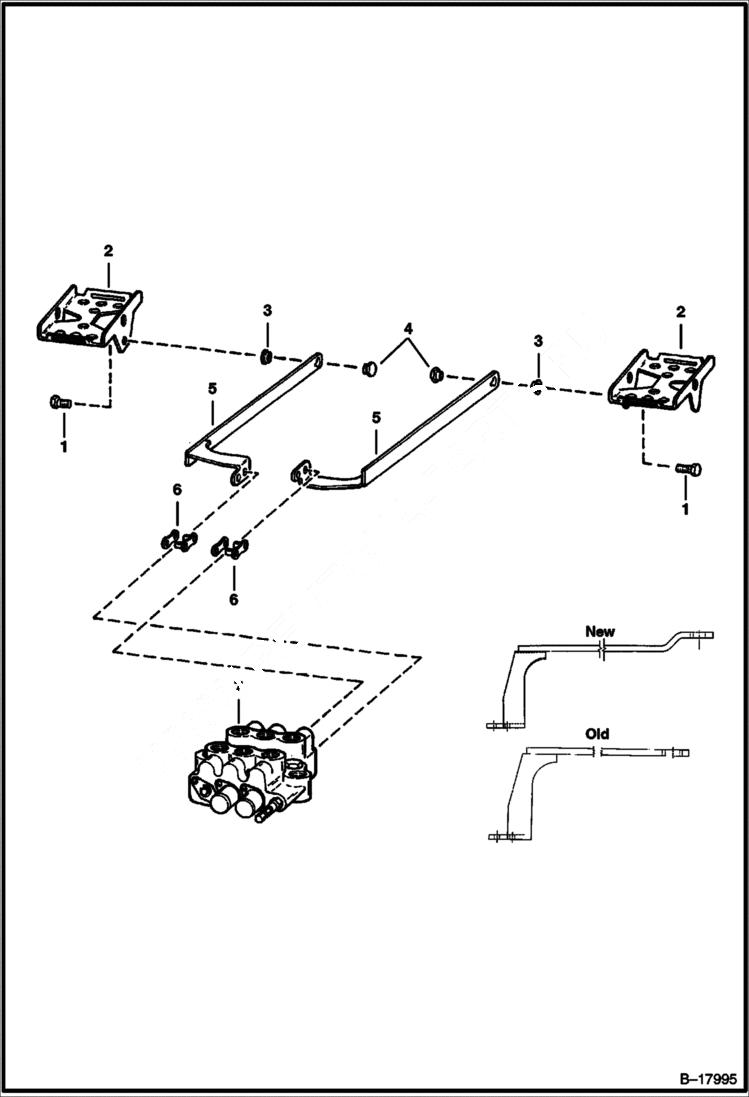

Запчасти Bobcat 400s CONTROL PEDALS HYDRAULIC SYSTEM

1

17C610

BOLT

2

7115219

PEDAL Was 6726680 - A

2

6707056

PEDAL

3

6598906

BUSHING nylon

4

6559479

NUT

5

BAR NLA - Order 1-6707056 & 1-6707053 - Was 6594296 - A

5

6731725

BAR Was 6707053 - A

6

6515186

CONNECTOR connector

7

VALVE See Illustration HYDRAULIC VALVE/ B9634
