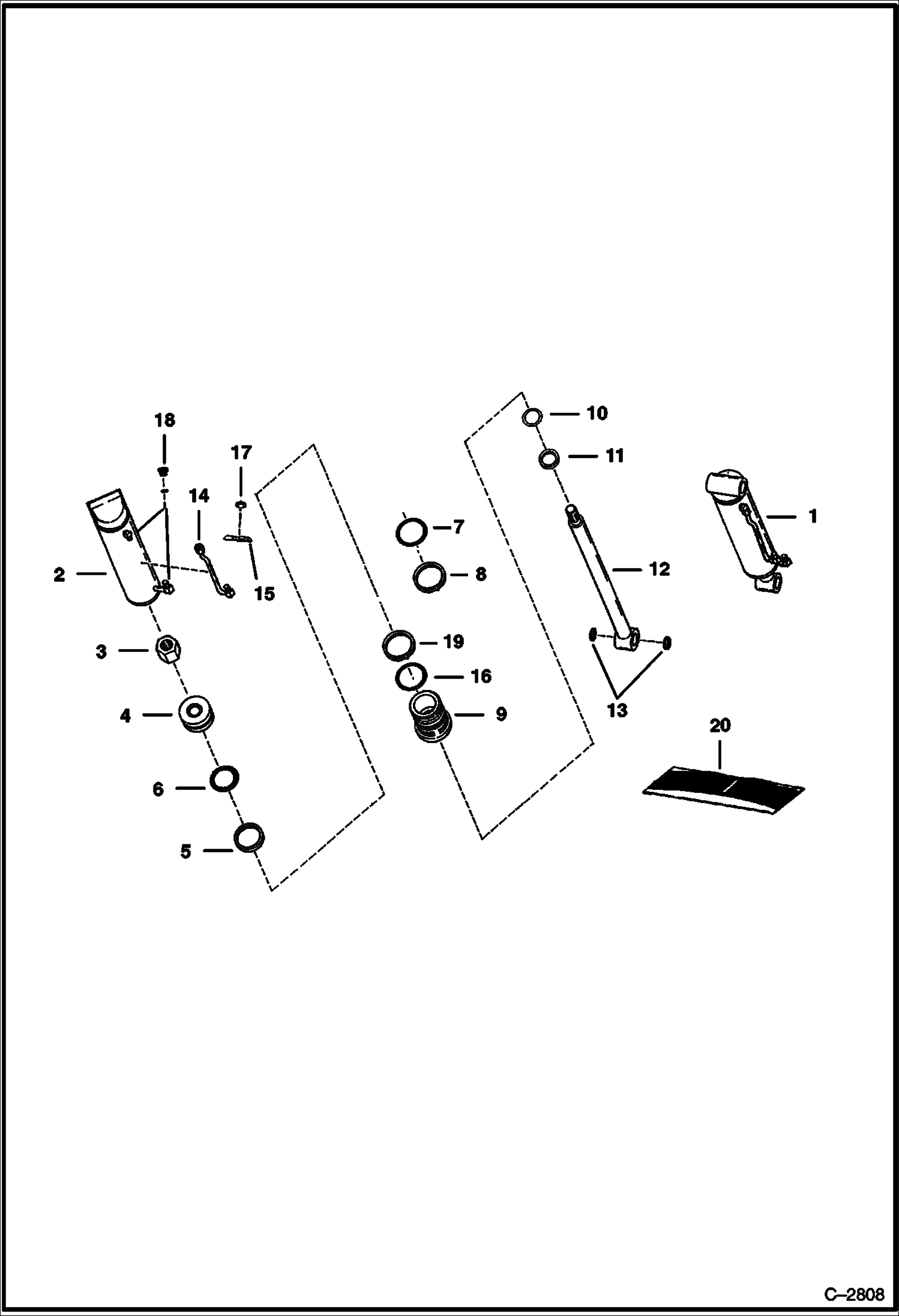

Запчасти Bobcat 400s TILT CYLINDER HYDRAULIC SYSTEM

1

6589196

CYLINDER tilt - Ref. 2-17

2

6589878

CASE

3

92D14

NUT

4

6592573

PISTON

5

25K30218

O RING 10 Was 54K30218 - B

6

947088

RING, BACK-UP

7

25K40224

O RING 10 Was 54K40224 - B

8

73K232

RING, BACK-UP

9

6589195

HEAD Was 6587744 - A

10

6667324

SEAL

11

6665208

SEAL

12

6592918

ROD W/Ref. 13

13

1990599

WIPER

14

6592564

TUBE Was 6591809 - A

15

6562266

CLAMP Was 6502426 - D

16

58K234

O RING 10 Was 54K40300 - B

17

95D6

NUT Was 91D000006B - A

18

90KV5

PLUG W/O-Ring

18

95K6

O'RING

19

7008355

SEAL, QUAD

20

7137944

SEAL KIT Ref. 6-8, 10, 11 & 16 - Was 6803334 - A
