Запчасти Bobcat 400s TILT CYLINDER HYDRAULIC SYSTEM

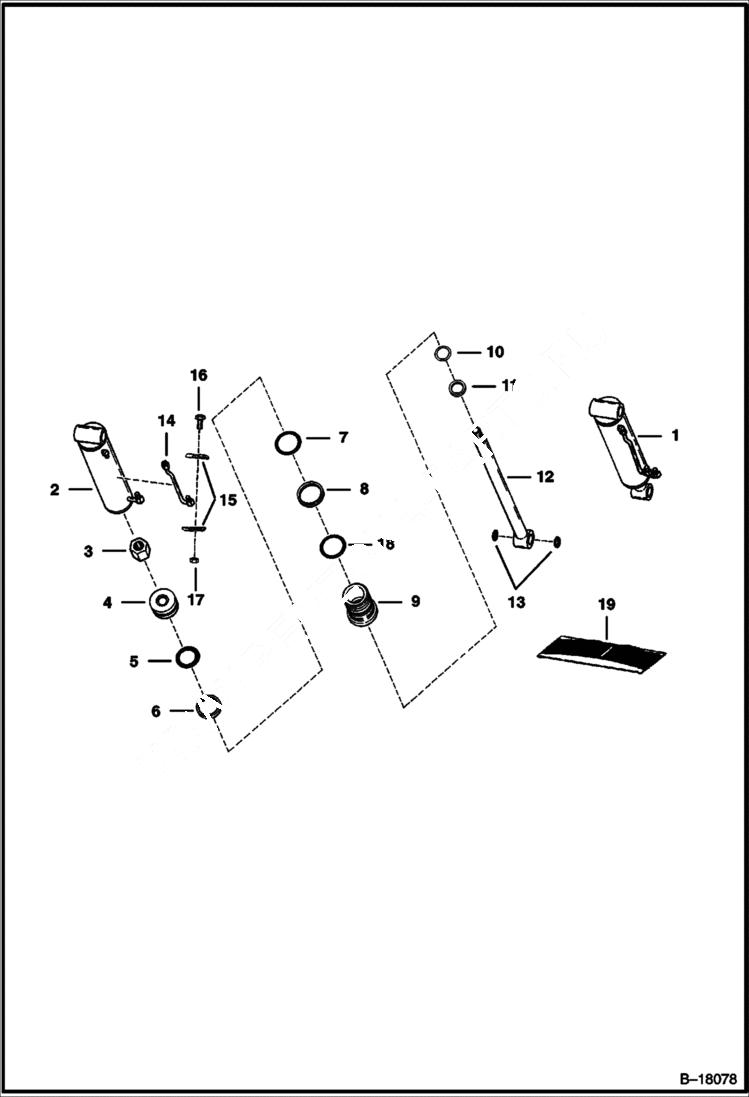

Схема запчастей Bobcat 400s - TILT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - tilt - Ref. 2-17 - Order 6589196 - Was 6592700 - A

2

CASE NLA - Order 6589878 & 6589195 - Was 6592576 - A

3

92D14

NUT Was 86D000014B - B

4

6592573

PISTON

5

25K30218

O RING 10 Was 54K30218 - B

6

947088

RING, BACK-UP

7

25K40224

O RING 10 Was 54K40224 - B

8

73K232

RING, BACK-UP

9

6587744

HEAD Was 6592572 - A

10

6667324

SEAL

11

6665208

SEAL

12

6592918

ROD W/Ref. 13

13

1990599

WIPER

14

6592564

TUBE

15

6502426

CLAMP Was 6552426 - A

16

17C616

BOLT 5

17

85D6

NUT, 5

18

58K234

O RING 10 Was 54K40300 - B

19

6589873

SEAL KIT Ref. 5-8, 10 & 11 - Was 6587858 - A

Выбрано товаров: 19
