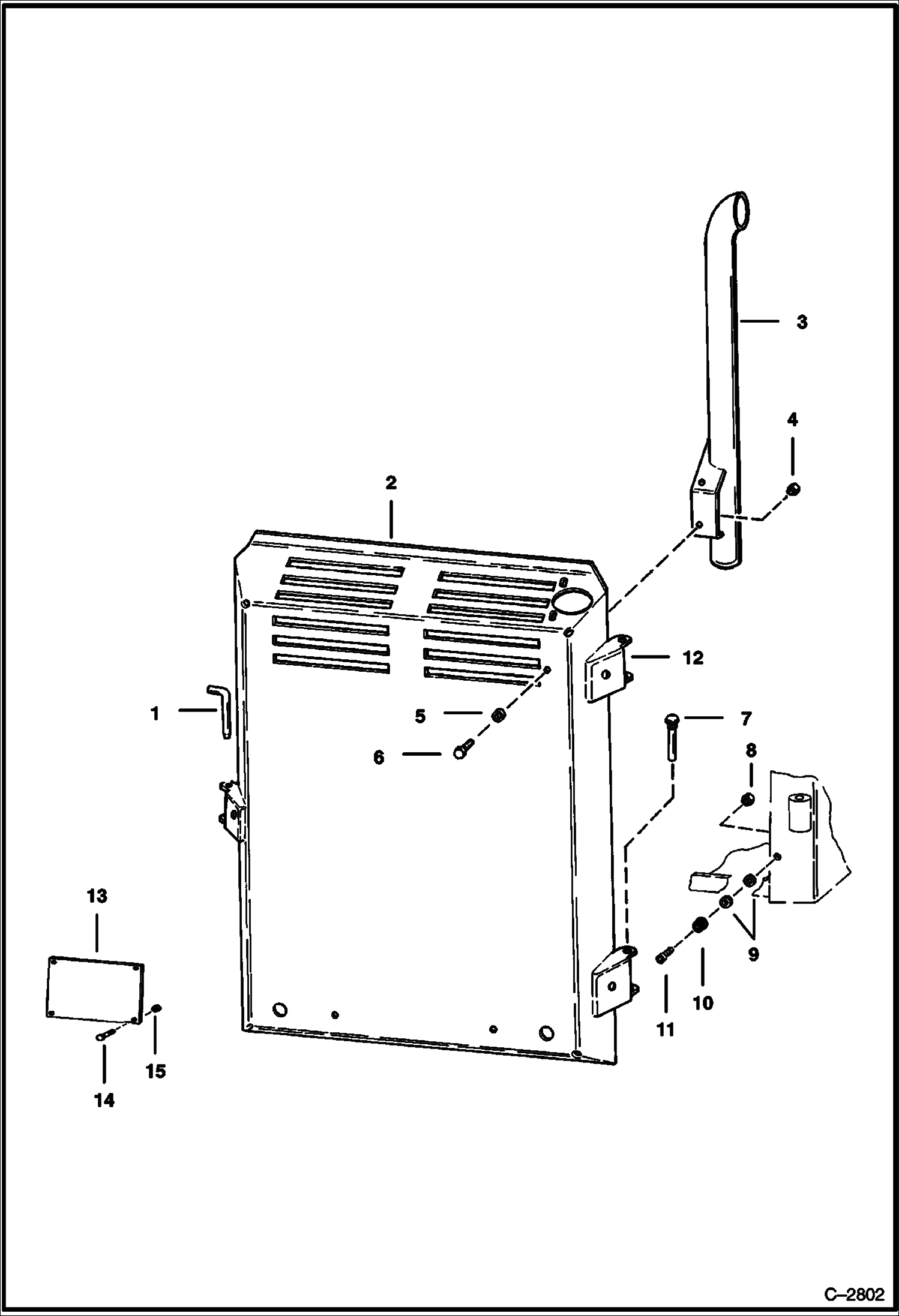

Запчасти Bobcat 400s REAR DOOR MAIN FRAME

1

6564192

PIN

2

DOOR NLA - Order 6707894 Door, (2) Of Ref. 13 (6707884 Covers), (8) Of Ref. 14 (25G000514B Bolts) and (8) Of Ref. 15 (83D000005B Nuts) - Was 6564865 - A

3

6565813

EXHAUST PIPE long

3

6712642

EXHAUST PIPE short

4

61D6

NUT 5

5

25E17

WASHER 5

6

17C612

BOLT 5

7

6564340

PIN

8

83D5

NUT 5

9

25E16

WSHR

10

6511847

BUMPER

11

73G516

SCREW

12

6562225

HINGE

13

6707884

COVER

14

25G514

BOLT

15

83D5

NUT 5
