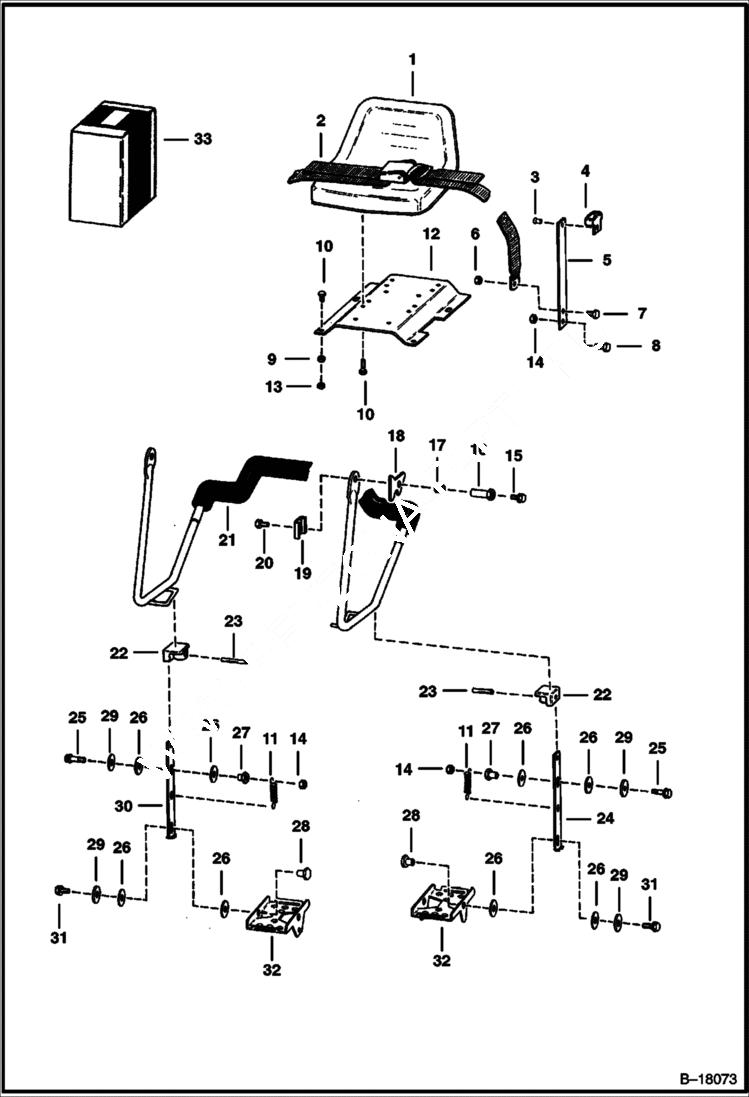

Запчасти Bobcat 400s SEAT & SEAT BAR MAIN FRAME

1

6591598

SEAT Milsco

1

6643253

SEAT, OPERATOR VINYL Michigan Seat Co.

2

SEAT BELT NLA - Order Ref. 33 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. 5 (6725373 Spring Plate) - Was 6667875 - A

2

SEAT BELT NLA - W/Spring Plates - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

6630207

RIVET 5 Was 6512797 - A

4

GUIDE NLA - Order 6703703 - Was 6565355

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 13.75'' Use W/Ref.2 (NLA/6564774 Seat Belt) - Was 6565354 - A

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 12.25 in. Use W/Ref. 2 (NLA/6667875 Seat Belt) - Order 6711908 Spring Plate, Ref. 4 & (2) of Ref. 3 - Was 6711907 - A

5

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

85D7

NUT

7

17C716

BOLT

8

17C612

BOLT 5

9

774220

NUT

10

17C512

BOLT 5

11

6594284

SPRING

12

6594257

BRACKET

13

85D5

NUT 5

14

85D6

NUT, 5

15

35C608

BOLT

16

6568742

BUSHING

17

6704453

SPRING

18

6563313

RETAINER

19

6563557

WASHER

20

17C608

BOLT

21

6704562

SEAT BAR Was 6564882 - A

22

6702343

BLOCK

23

14J2512

PIN 5

24

6704559

LOCK W/Ref. 22, 23 - Was 6704557 - A

25

35C624

BOLT

26

6700170

WASHER nylon

27

6559479

NUT

28

6594298

NUT

29

872229

WASHER

30

6704558

LOCK W/Ref. 22, 23 - Was 6704556 - A

31

35C616

BOLT 5

32

6594297

PEDAL

33

KIT NLA - W/Ref. 2-5 - Order Ref. 2 (6675074 Seat Belt) & (2) of Ref. 5 (6725373 Spring Plate) - Was 6713061 - A
