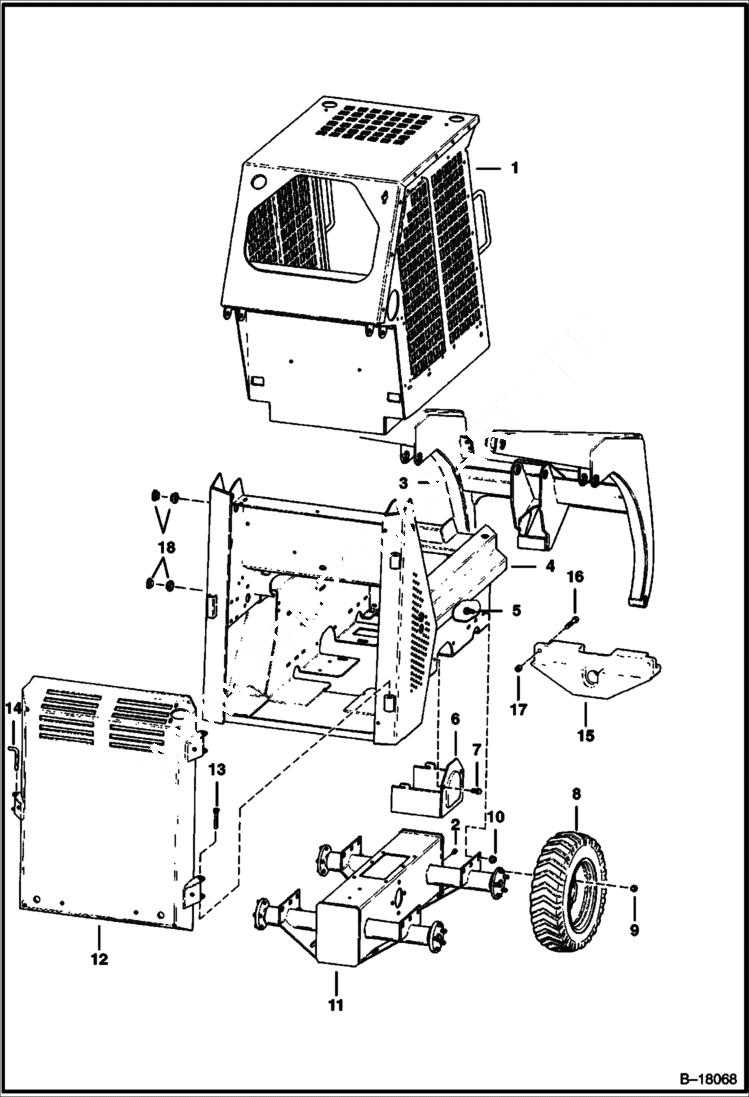

Запчасти Bobcat 400s MAIN FRAME MAIN FRAME

1

CAB See Illustration OPERATOR CAB/ B18071

2

6731121

PLUG Was 11F12 - A

3

LIFT ARM See Illustration LIFT ARMS/ B18075

4

6708125

MAIN FRAME Was 6594288 - A

5

37C820

BOLT Was 6560578 - A

6

6564185

COVER

7

84G3712

BOLT 5

8

TIRES & RIMS See Illustration TIRES & RIMS/ B17527

9

6561152

NUT

10

83D8

NUT 5

11

CHAINCASE See BTI306 NLA - Order 1-6706429 , 2-6707053 , 2-6707056 - Was 6594289 - A

11

CHAINCASE See BTI344 NLA - Was 6706429 - A

12

6564865

REAR DOOR See Illustration REAR DOOR/ C2802

13

6564340

PIN

14

6564192

PIN

15

6564681

WEIGHT

16

17C828

BOLT

17

57D8

NUT 10

18

6563829

BUSHING Weld On
