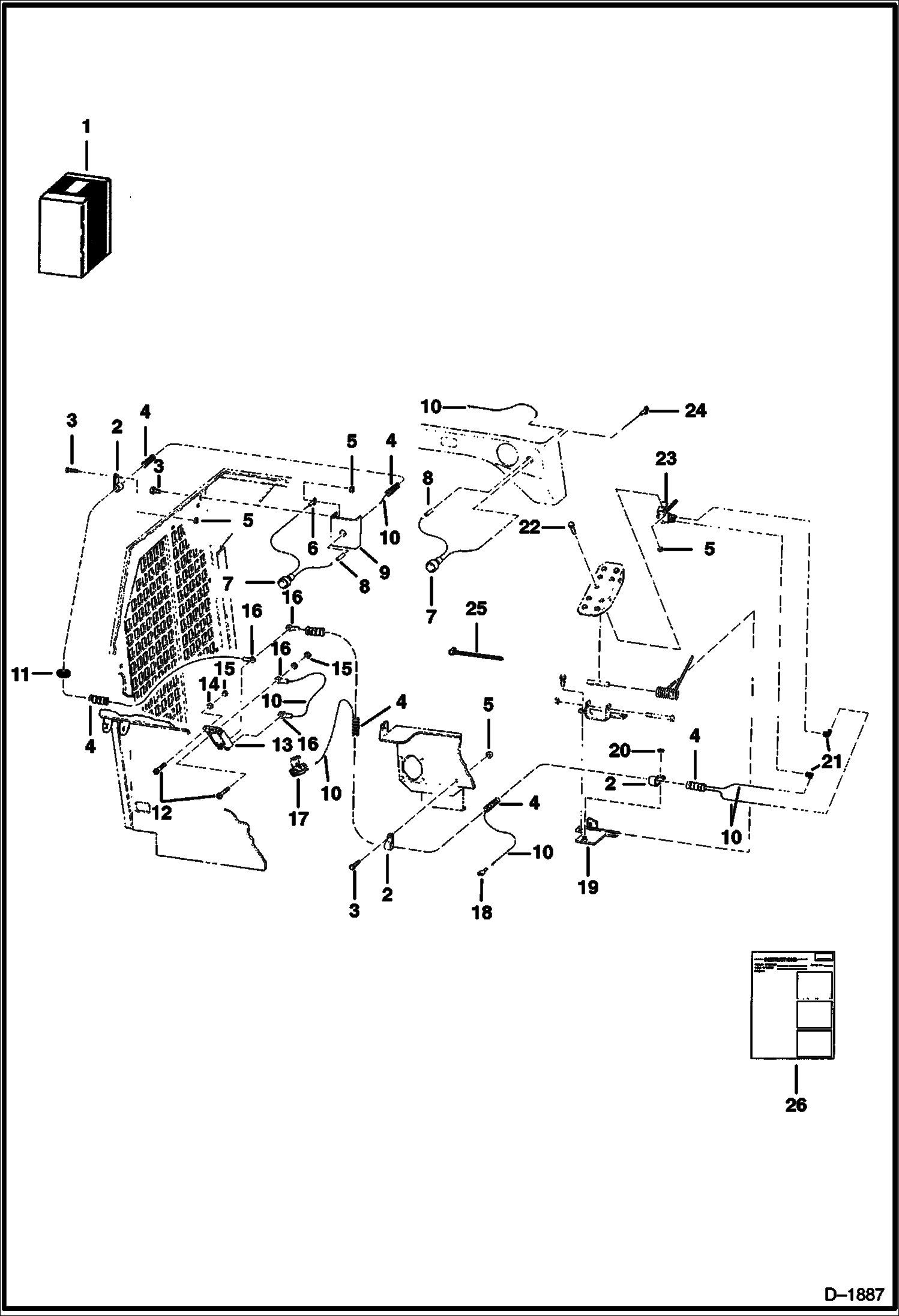

Запчасти Bobcat 400s PARKING BRAKE LIGHT ACCESSORIES & OPTIONS

1

6531301

KIT Ref. 2-26

2

30H31

CLAMP 10

3

35C512

BOLT

4

6584978

CONDUIT bulk - sold per foot

5

85D5

NUT 5

6

31R106

TERMINAL

7

6648078

LIGHT

8

6510603

SPLICER

9

BRACKET NLA - Was 6531302 - A

10

631094

WIRE FT bulk - Sold Per Foot

11

730630

GROMMET

12

87G610

SCREW

13

6644960

BUZZER

14

25E10

WASHER

15

12D6

NUT 10

16

31R103

TERM RING

17

6513275

CONNECTOR 443 Only

18

733611

TERMINAL 440B Only

19

6531303

PLATE

20

61D6

NUT 5

21

6648765

TERMINAL

22

17C512

BOLT 5

23

6579011

SWITCH

24

84G3110

SCREW

25

6610510

TIE

26

6570635

INSTRUCTIONS
