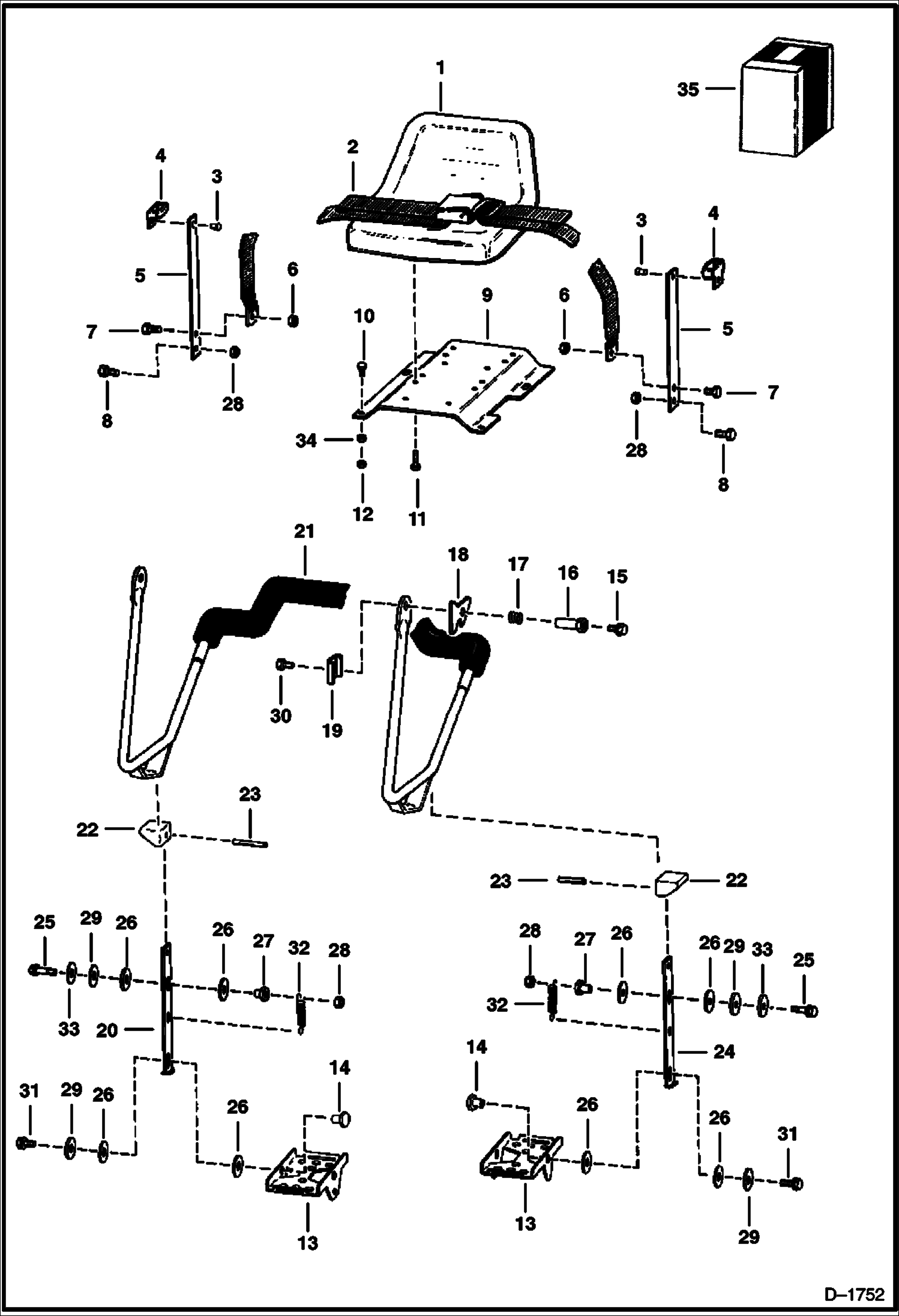

Запчасти Bobcat 400s SEAT & SEAT BAR MAIN FRAME

1

6591598

SEAT With Drain Holes - Was 6643253 - B

2

SEAT BELT NLA - Use W/NLA 6565354 - 13.75'' (349 mm) Guide - Order Ref. 35 - Was 6564774 - A

2

SEAT BELT NLA - Use W/NLA 6711907 - 12.25'' (311 mm) Guide - Order 6725403 Seat Belt - Was 6667375 - A

2

SEAT BELT NLA - W/Spring Plates - Order 6675074 Seat Belt & (2) of 6725373 Spring Plates - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

6630207

RIVET 5 Was 6512797 - A

4

GUIDE NLA - Order 6703703 - Was 6565355

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 13.75'' (349 mm) - Use W/Ref. 2 (NLA 6564774 Seat Belt)

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 12.25'' (311 mm) - Use W/Ref. 2 (NLA 6667375 Seat Belt) - Order 6711908, Ref. 4 & (2) of Ref. 3 - A

5

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

85D7

NUT

7

17C716

BOLT

8

17C612

BOLT 5

9

6594257

BRACKET

10

17C512

BOLT 5

11

17C510

BOLT Was 35C000508B - B

12

85D5

NUT 5

13

6594297

PEDAL

14

6594298

NUT retaining

15

35C608

BOLT

16

6568742

BUSHING retaining

17

6578252

SPRING Was 6503387 - A

18

6563313

RETAINER

19

6563557

WASHER

20

6594294

LINK R.H.

20

6704556

LOCK R.H.

21

SEAT BAR See BTI278 NLA - Was 6564882 - A

21

6704562

SEAT BAR

22

6702343

BLOCK Was 6563148 - A

23

14J2512

PIN 5 Was 14J002510B - B

24

6594293

LINK L.H.

24

6704557

LOCK L.H.

25

17C624

BOLT 5 Was 35C000624B - B

26

6700170

WASHER nylon - Was 6563152 - A

27

6559479

NUT

28

85D6

NUT, 5

29

872229

WASHER

30

17C608

BOLT

31

35C616

BOLT 5

32

6594284

SPRING

33

25E17

WASHER 5

34

774220

NUT

35

KIT NLA - Seat belt - W/Ref. 2 & 5 - Order Ref. 2 - Was 6713061 - A
