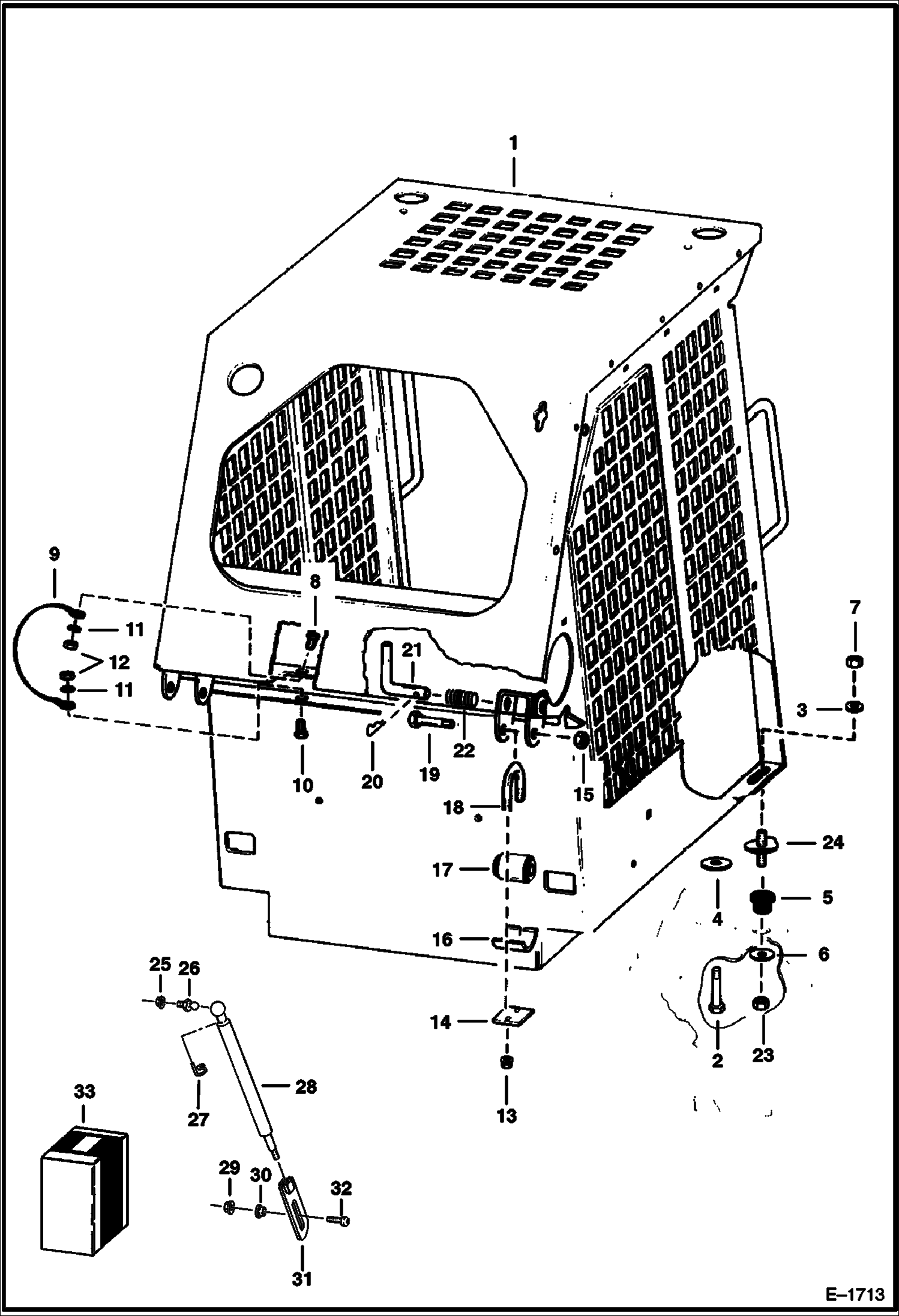

Запчасти Bobcat 400s OPERATOR CAB MAIN FRAME

1

CAB See BTI296 NLA - Was SALES

2

17C840

BOLT

3

6553709

WASHER

4

6543321

WASHER

5

6560633

DAMPENER rubber

6

6515817

WASHER

7

59D8

NUT 5 Was 85D000008B - B

8

17C512

BOLT 5

9

6594283

WIRE ground

10

84G3112

BOLT 5

11

25E15

WASHER

12

61D5

NUT

13

83D6

NUT 5

14

6565068

PLATE

15

85D10

NUT, 5

16

6563997

RETAINER

17

6562602

BUSHING

18

6563998

U-BOLT

19

17C1048

BOLT

20

1306637

CLIP

21

6593389

PIN

22

6593390

SPRING

23

85D8

NUT, 5

24

6702971

BOLT

25

83D5

NUT 5

26

6706519

STUD ball

27

6706520

RING retaining

28

6664206

GAS SPRING

29

95D6

NUT Was 91D000006B - A

30

6706272

BUSHING

31

6706092

END gas spring

32

25G616

SCREW

33

6707163

KIT Ref. 25-33
