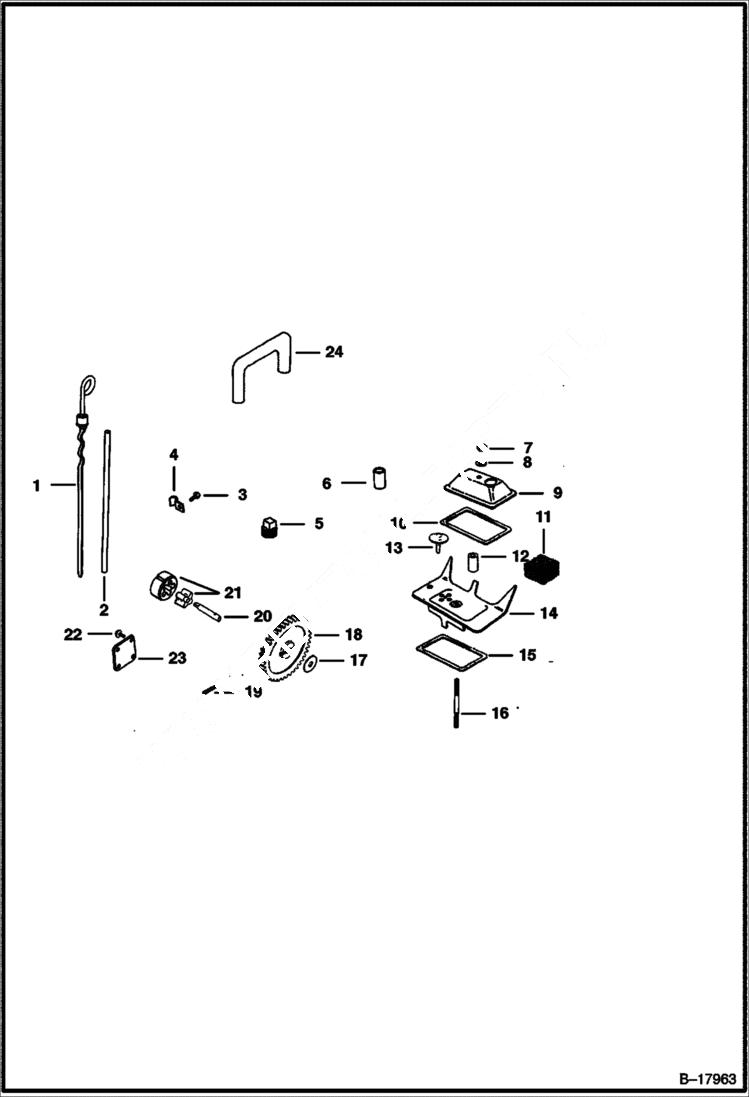

Запчасти Bobcat 400s OIL PUMP, DIPSTICK & BREATHER POWER UNIT

1

6599825

DIPSTICK

2

6599862

TUBE

3

45G1006

BOLT

4

6599868

CLIP

5

6599724

PLUG oil fill

6

6599880

GROMMET Was 6592085 - A

7

61D4

NUT 5

8

25E14

WSHR

9

6599851

COVER

10

6599836

GASKET

11

6599796

FILTER

12

6599822

SEAL

13

VALVE NSS - Was 6599888 - A

14

6669304

COVER W/Ref. 13 - Was 6599853 - A

15

6599836

GASKET

16

6518915

STUD

17

6599885

SPACER

18

6599831

GEAR oil pump

19

220940

PIN ROLL

20

6599841

SHAFT

21

6599807

ROTOR SET

21

OIL PUMP ASMBLY NLA - Was 6690313 - A

22

46G1006

SCREW

23

6599850

COVER

24

6599861

BREATHER TUBE
