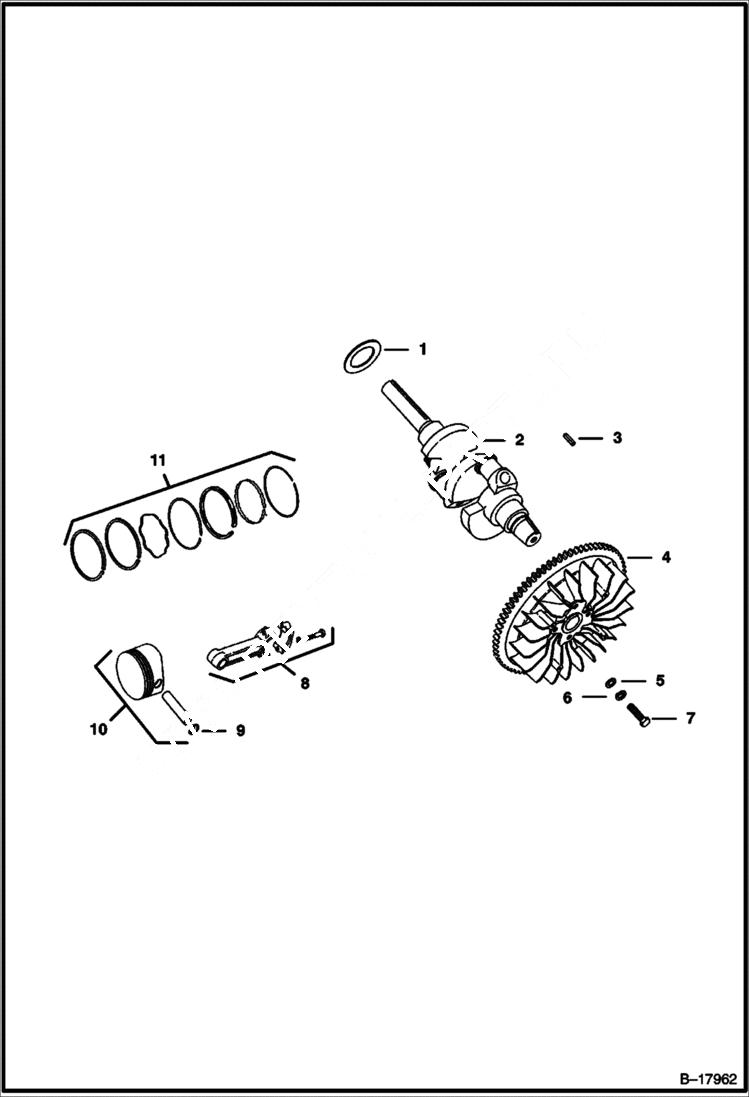

Запчасти Bobcat 400s PISTONS, CRANKSHAFT & FLYWHEEL POWER UNIT

1

6599890

WASHER thrust

2

6599811

CRANKSHAFT

2

CRANKSHAFT NLA - Was 6630565 - A

3

KEY NLA - Was 7J2106 - A

4

6599817

FLYWHEEL

5

6599859

WASHER

6

23E6

WASHER

7

18C620

BOLT

8

6632140

ROD connecting (Std.) - Was 6630566 - A

8

6632141

ROD connecting (.010 ) - Was 6630567 - A

9

6599793

RETAINER

10

6632370

PISTON W/Ring Assy. (Std.)

10

6632371

PISTON W/Ring Assy. (.003) - W/Ref. 9 & 11

10

6632372

PISTON W/Ring Assy. (.010) - W/Ref. 9 & 11

10

6632373

PISTON W/Ring Assy. (.020) - W/Ref. 9 & 11

10

6632375

PISTON W/Ring Assy. (.030) - W/Ref. 9 & 11

11

6632150

RING SET Std. & .003

11

6632151

RING SET 0.01

11

6632152

RING SET .020 - Was 6599857 - A

11

6632153

RING SET .030 - Was 6599858 - A
