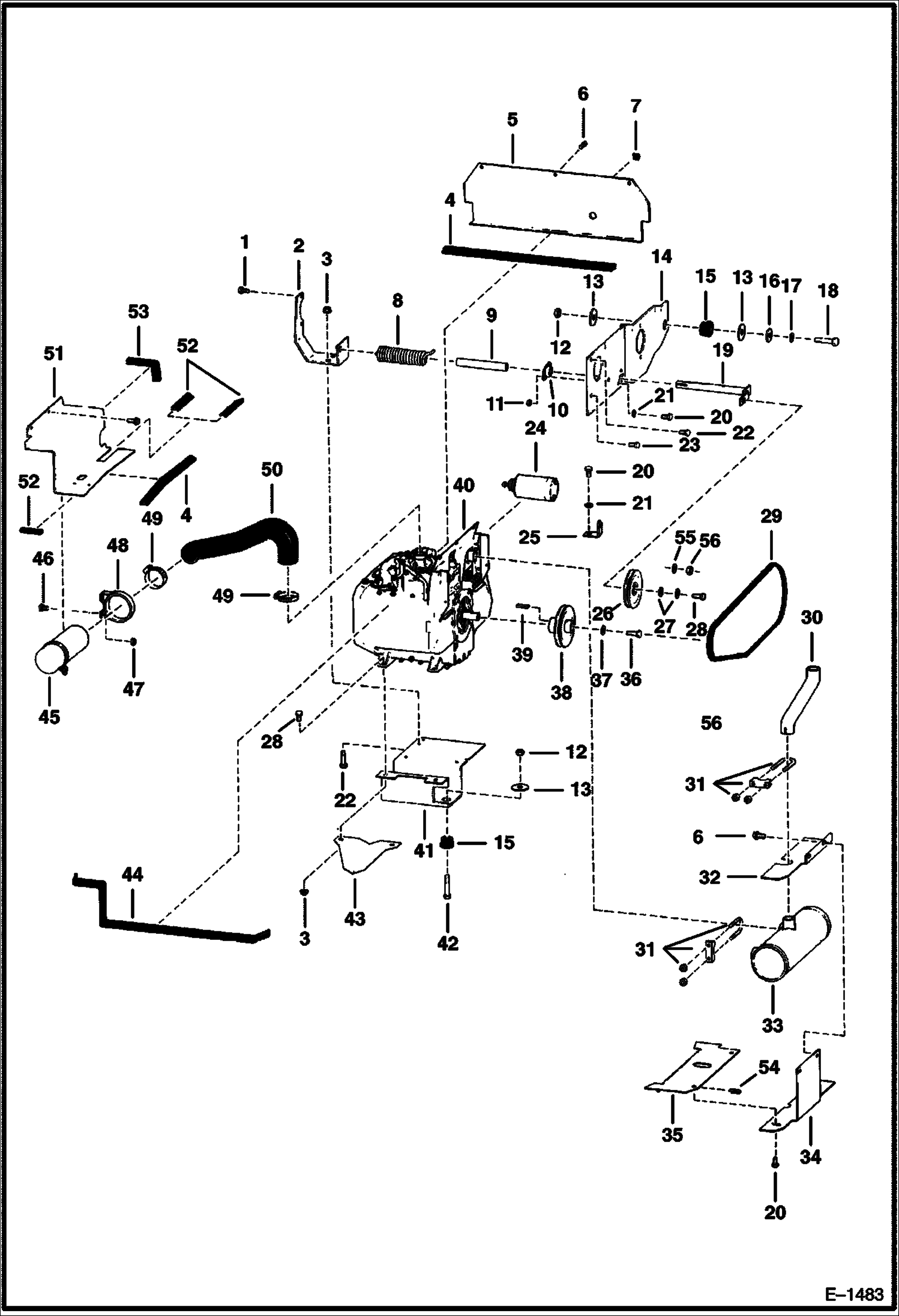

Запчасти Bobcat 400s ENGINE & ATTACHING PARTS POWER UNIT

1

17C536

BOLT

2

6564260

MOUNT

3

57D6

NUT 5

4

4126590

MOULDING bulk - sold per foot

5

6564265

SHIELD

6

84G3112

BOLT 5

7

6599925

BUMPER

8

6678782

SPRING Was 6564892 - A

9

6564788

TUBE

10

6599468

BEARING

11

61D4

NUT 5

12

85D8

NUT, 5

13

6564692

WASHER

14

6565277

MOUNT engine & hydro. pump

15

6560633

DAMPENER rubber

16

6565472

WASHER

17

25E21

WASHER 5

18

17C844

BOLT

19

BRACKET NLA - W/ Stud - Order 6532348 bracket, Ref. 55 & 56

19

6532348

BRACKET W/stud

20

17C412

BOLT 5

21

25E13

WASHER 5

22

17C616

BOLT 5

23

17C716

BOLT

24

STARTER See Illustration STARTER/ B17955 See Illustration STARTER/ B17954

25

6565509

BRACKET starter - for standard starter

26

PULLEY NLA - idler - Order 6689692 pulley - Was 6564011 - A

26

6689692

PULLEY, IDLER Was 6689645 - A

27

27E6

WASHER 5

28

17C620

BOLT

29

6564100

BELT

30

6564571

EXHAUST PIPE

31

710706

CLAMP

32

6565747

SHIELD

33

6564668

MUFFLER spark arrestor

34

6564263

SHIELD

35

6565319

SHIELD

36

18C720

BOLT

37

25E20

WASHER

38

6563907

PULLEY

39

7J3112

KEY

40

ENGINE See Illustration ENGINE/ B17956

41

6564261

MOUNT engine

42

17C836

BOLT

43

6564314

TROUGH oil drain

44

6564269

INSULATION

45

AIR CLEANER See Illustration AIR CLEANER/ B17728

46

10C512

BOLT Was 6553808 - A

47

61D5

NUT

48

6633630

CLAMP Was 606585B - A

49

42H32

HS CLAMP5 Was 6513595 - A

50

6564784

HOSE

51

6564782

SHIELD

52

MOULDING NLA - bulk - sold per foot - Was 6620417 - A

53

6513152

SEAL bulk - sold per foot

54

6513992

RETAINER

55

6532347

SPACER Use W/Ref. 19 (6532348 bracket)

56

83D6

NUT 5 Use W/Ref. 19 (6532348 bracket)
