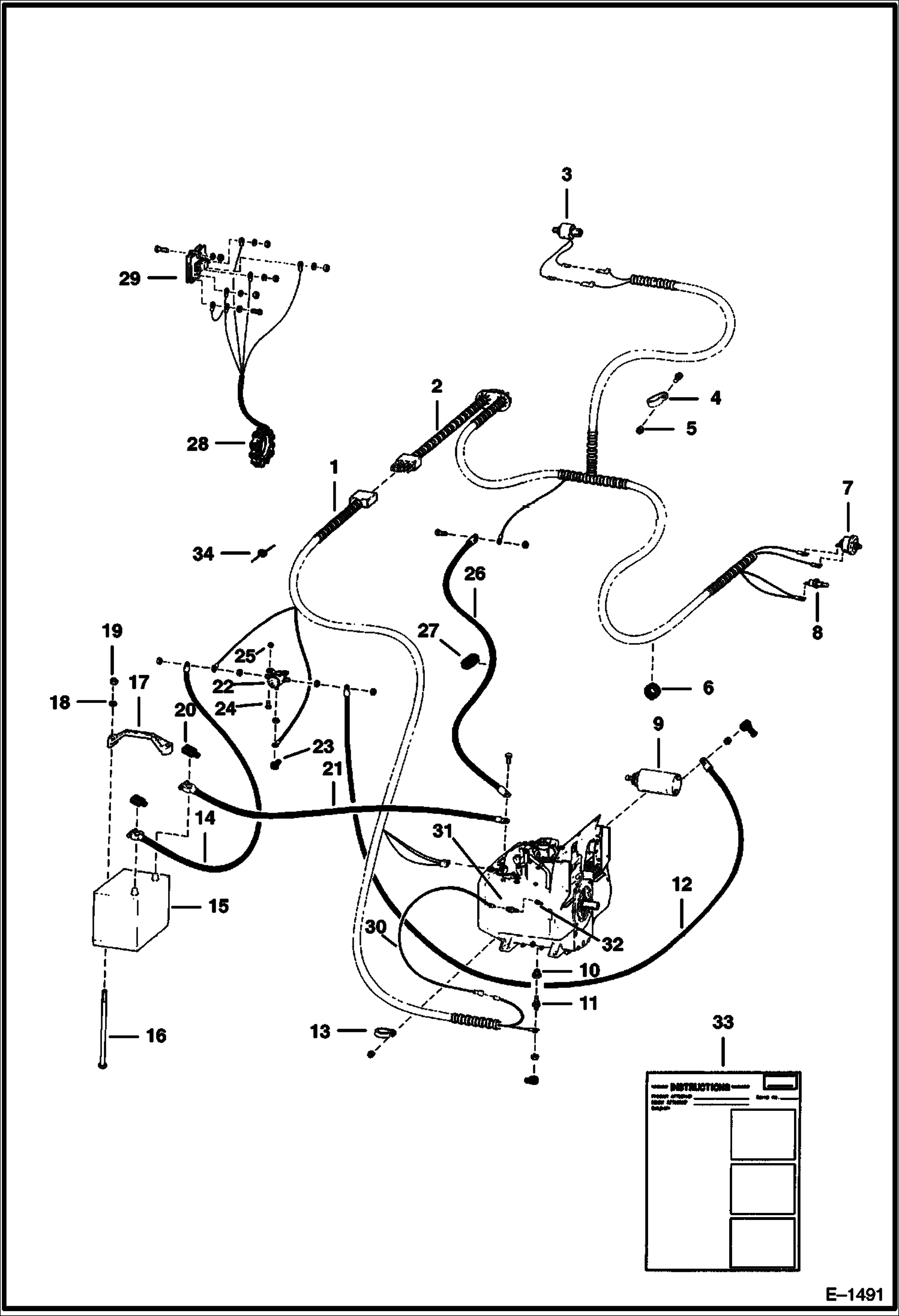

Запчасти Bobcat 400s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

6565023

HARNESS

2

6565024

HARNESS

3

6565369

SOLENOID fuel

4

CLAMP NLA - Was 31H000033B - A

5

61D5

NUT

6

730630

GROMMET

7

6664577

SWITCH hydro, pressure

8

6632633

SWITCH hyd temp

9

STARTER See Illustration STARTER/ B17955 See Illustration STARTER/ B17954

10

19F2

BUSHING

11

SWITCH See BTI259 NLA - engine temp.

11

6658818

SENDER See BTI259 eng temp - threaded connector

12

6564306

CABLE

13

31H17

CLAMP

14

6564307

CABLE battery

15

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

15

6630154

CAP gang - Danger

15

6630155

CAP gang - Poison

15

6514898

CAP tilt tite

16

6569623

BOLT

17

7024123

CLAMP Was 6563462 - A

18

25E15

WASHER

19

59D5

NUT 5

20

2356058

BOOT

21

6564403

CABLE battery

22

6631939

SOLENOID

23

6560172

COVER Rubber

24

17C408

BOLT

25

85D4

NUT 5

26

6563025

CABLE

27

6504108

GROMMET

28

STATOR See Illustration IGNITION/ B17965

29

REGULATOR See Illustration IGNITION/ B17965

30

6593681

WIRE

31

6631695

SWITCH oil pressure

32

6631726

REDUCER

33

6593682

KIT See Illustration OIL PRESSURE SWITCH KIT/ B17974 OIL PRESSURE SWITCH

34

6564873

RESISTOR
