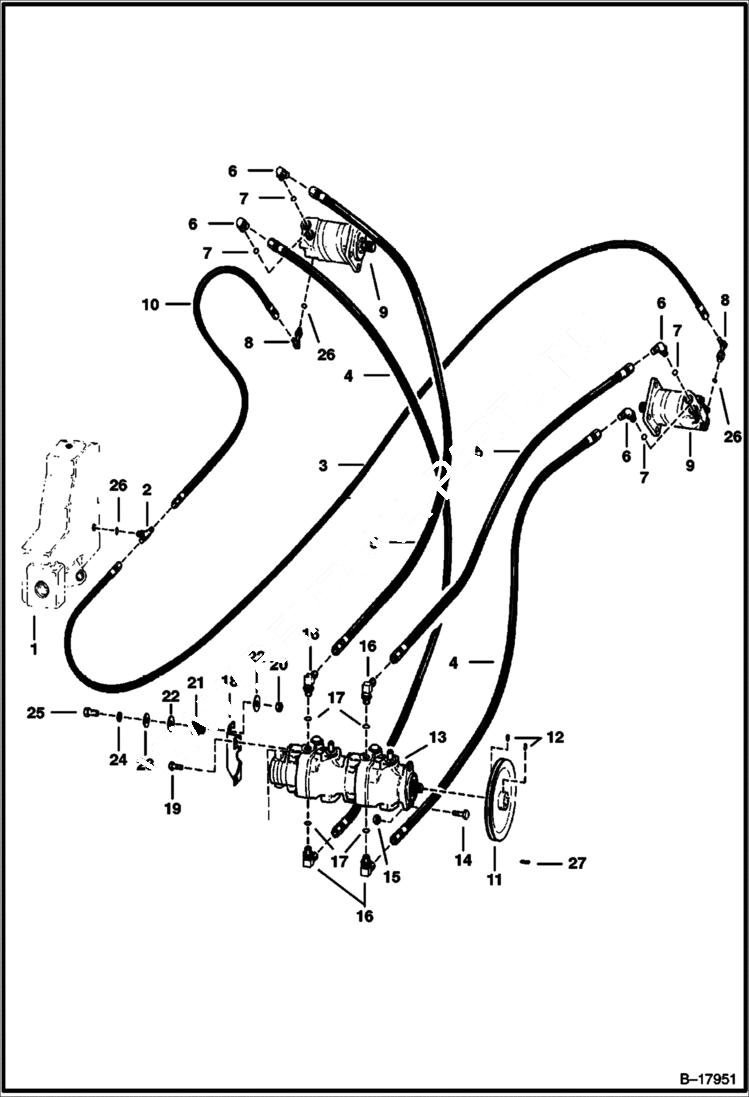

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6564006

TANK

2

19K3

FITTING

3

6530858

HOSE Was 6565085 - A

4

6530861

HOSE Was 6565080 - A

5

6530860

HOSE Was 6565079 - A

6

18K7

FITTING W/Ref. 7

7

79K10

O RING 10

8

6564153

ELBOW

8

17K3

ELBOW W/Ref. 26

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635 See Illustration HYDROSTATIC MOTOR/ B17953

10

6530862

HOSE 10'' (254 mm) - Was 6565084 - A

10

6529344

HOSE 14'' (355,6 mm)

11

PULLEY See BTI239 NLA - Use W/(1) of Ref. 12 (16G408 screw) - Was 6564007 - A

11

6594351

PULLEY Use W/(2) of Ref. 12 (13G408 screw)

12

16G408

SCREW

12

13G408

SCREW

13

PUMP See Illustration HYDROSTATIC PUMP/ B17883

14

17C628

BOLT

15

57D6

NUT 5

16

ELBOW NLA - W/Ref. 17 - Was 17KB001012B - A

17

79K12

O RING 10 Was 79K000016B - D

18

6564055

MOUNT

18

7172914

BRACKET, PUMP GEAR Use W/ 7003484 pump

19

17C628

BOLT

20

85D8

NUT, 5

21

6560633

DAMPENER rubber

22

6564692

WASHER

23

6565472

WASHER .062'' (1,5748 mm) thick

23

6515817

WASHER Use W/ 7003484 pump - .1793'' (4,554 mm) thick

24

25E21

WASHER 5

25

17C844

BOLT

26

79K4

O RING 10

27

6594352

KEY Use W/Ref. 11 (6594351 pulley)
