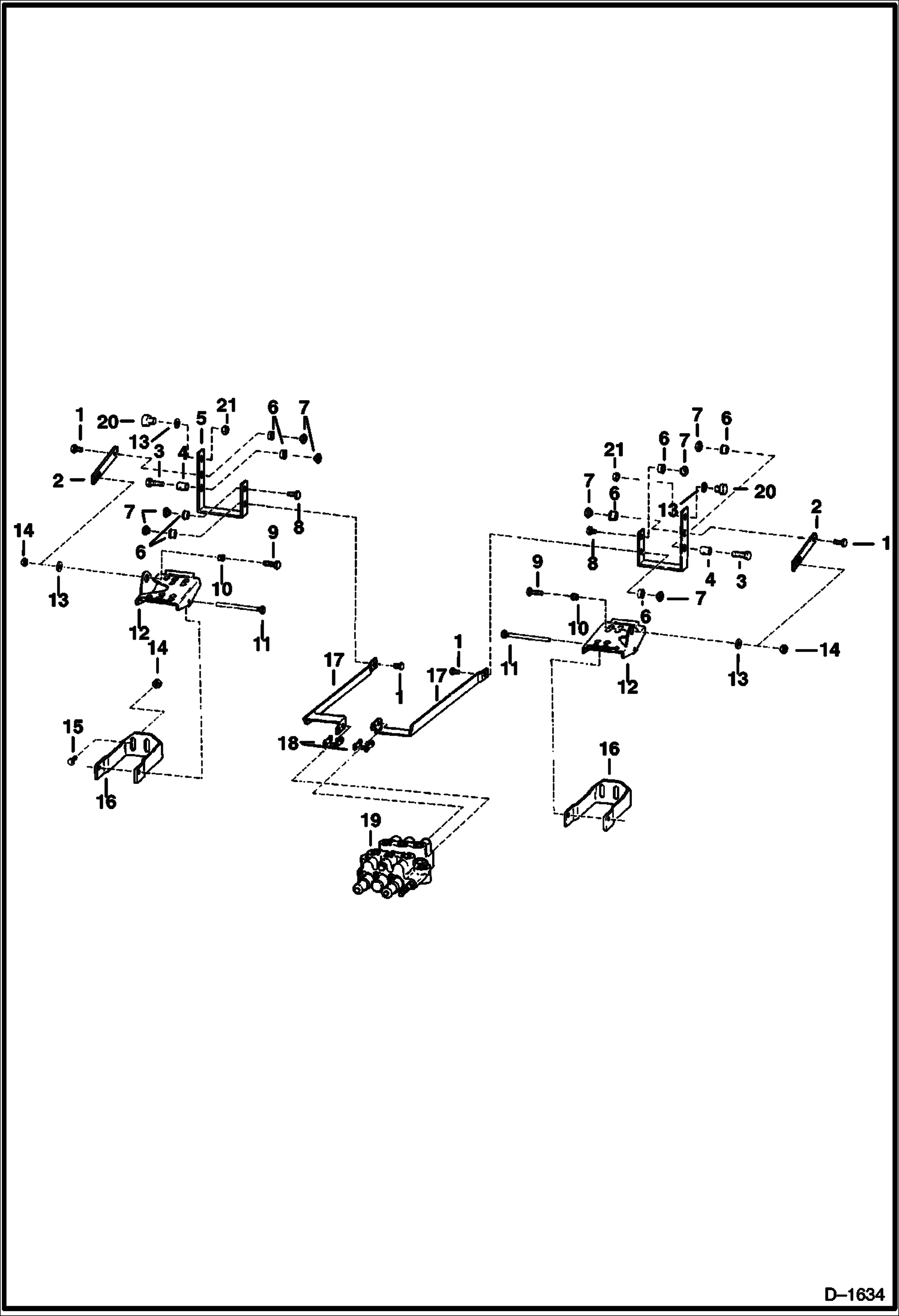

Запчасти Bobcat 400s CONTROL PEDALS HYDRAULIC SYSTEM

1

17C612

BOLT 5

2

6564803

LINK

3

17C624

BOLT 5

4

6564125

SPACER

5

6593353

BELLCRANK

6

6598906

BUSHING nylon

7

6559479

NUT

8

35C612

BOLT

9

35C624

BOLT

10

6665701

BUSHING, PRESS FIT Was 6630081 - A

11

6564657

PIN

12

7115219

PEDAL Was 6726680 - A

13

6563914

WASHER

14

57D6

NUT 5

15

7C620

BOLT Was 6704349 - B

16

6564804

MOUNT

17

6565173

BAR

18

6515186

CONNECTOR connector

19

VALVE See Illustration HYDRAULIC VALVE/ B9634

20

6630971

CAM ROLLER

21

86D6

NUT
