Запчасти Bobcat 400s LIFT CYLINDER (W/Weld On Tube) HYDRAULIC SYSTEM

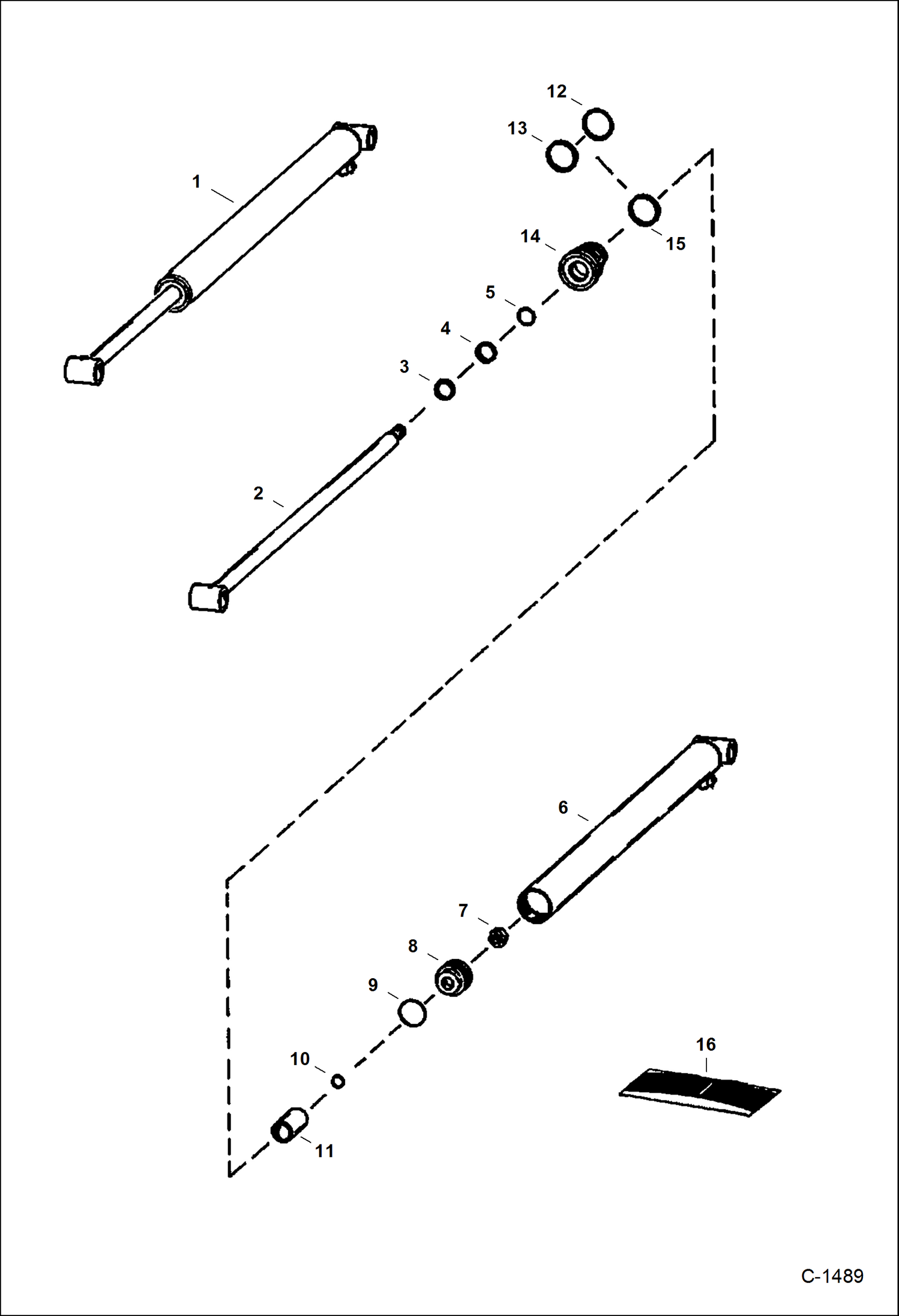

Схема запчастей Bobcat 400s - LIFT CYLINDER (W/Weld On Tube) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - Order 6592983

2

6592903

ROD

3

6666542

SEAL, WIPER ROD Was NSS - D

4

6667323

SEAL Was NSS - D

5

O-RING NSS

6

CASE NLA - Order 6592989 & 6529382

7

92D12

NUT Was 86D000012B - B

8

6558196

PISTON

9

O-RING NSS

10

O-RING NSS

11

6500892

SPACER

12

O-RING NSS

13

WASHER NSS

14

6504933

HEAD

15

7008781

SEAL, QUAD

16

7137771

SEAL KIT Ref. 3-5, 7, 9, 10, 12, 13, & 15 - Was 6803472 - A

Выбрано товаров: 16
