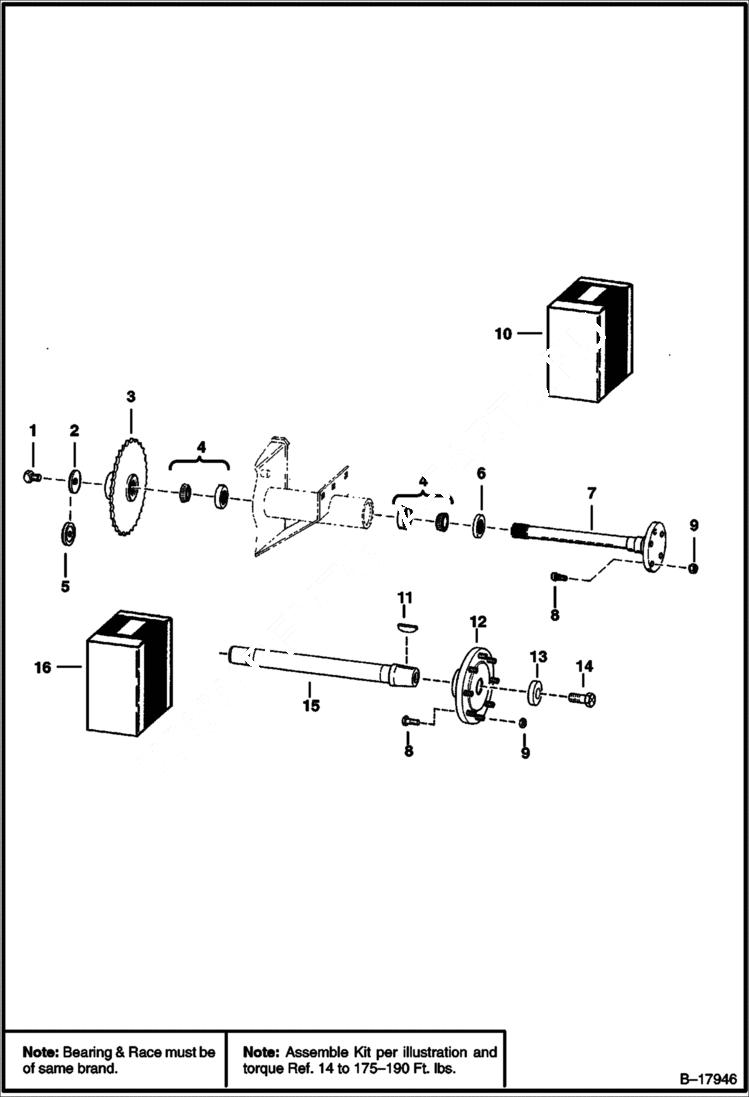

Запчасти Bobcat 400s AXLE DRIVE TRAIN

1

18C1024

BOLT hex

2

6563795

WASHER

3

7134079

SPROCKET, AXLE Was 6563798 - A

4

6598803

BEARING

5

6592765

WASHER recessed - To take up end play

6

6598829

SEAL, OIL

7

AXLE NLA - W/Ref. 8 - Order 6722929 - Was 6563805 - A

8

6679105

STUD wheel - Was 6506362 - A

9

6561152

NUT wheel

10

6592942

KIT See Illustration AXLE SEAL KIT/ B4041 AXLE SEAL

11

6J1210

KEY

12

6706031

HUB 9/16'' Studs - W/Ref. 8

13

6552871

WASHER

14

18C1228

BOLT

15

6706032

SHAFT, AXLE

16

6722929

KIT W/Ref. 8 & 11 - 15
