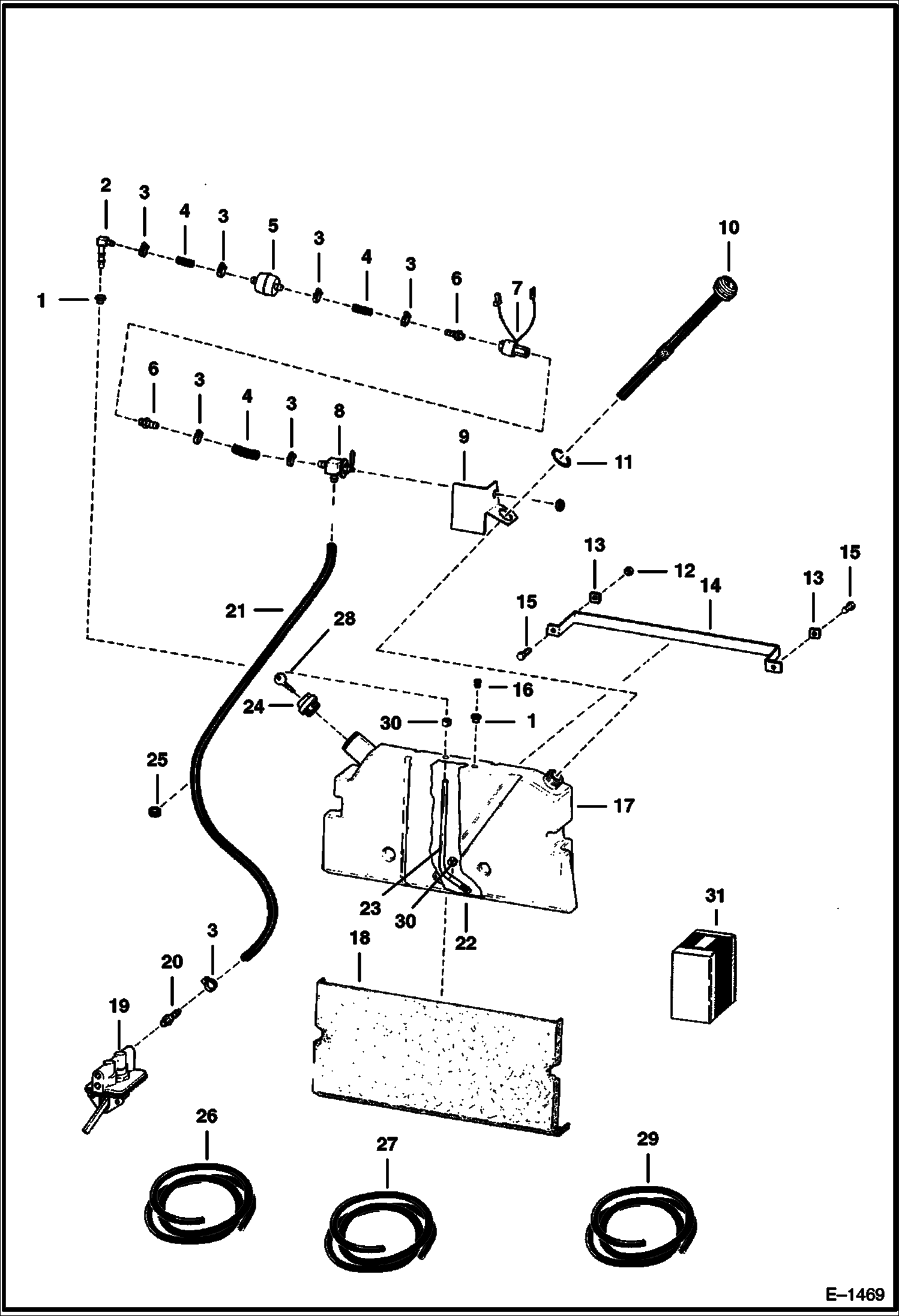

Запчасти Bobcat 400s FUEL SYSTEM MAIN FRAME

1

6553411

BUSHING 0.38'' ID

2

6598908

ELBOW Was 6681462 - A

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

HOSE NLA - 1-1/2'\ in. (38,1 mm) - Order Ref. 26

5

6511393

FILTER Was NLA - D

6

6505813

CONNECTOR

7

7024822

SOLENOID, FUEL Was 6559117 - A

8

6599455

VALVE shut-off

9

6564038

MOUNT

10

6598910

GAUGE

11

25K60204

O RING 10

12

61D6

NUT 5

13

6559447

WASHER

14

6564037

BAND

15

84G3716

SCREW 5

16

6599645

PLUG, STEEL

17

6733225

TANK Was 6708327 - A

18

6564268

INSULATION

19

PUMP See Illustration FUEL SYSTEM/ B12577

20

6630064

ADAPTER

21

HOSE NLA - 37 in. (939,8 mm) - Order Ref. 26

22

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

23

HOSE NLA - 14.75in. (374,6 mm) - Order 2 of 6569752 - Was 6564040 - A

24

6632468

CAP Was 6555717 - A

24

CAP NLA - locking - Code GC020 - W/Ref. 28 - Was 6654373 - A

24

6662770

CAP locking - Code PK510 - W/ Ref. 28

25

1023368

GROMMET

26

6577821

HOSE bulk - sold per foot - Was 672221 - A

27

TAPE NLA - heat reflective - bulk-Sold Per Foot - purchase locally - Was 6630040 - A

28

6654374

KEY Code GC020

28

6587458

KEY Code PK510

29

6569752

HOSE BULK/FT bulk - sold per foot

30

6661213

RING, COMPRESSION
