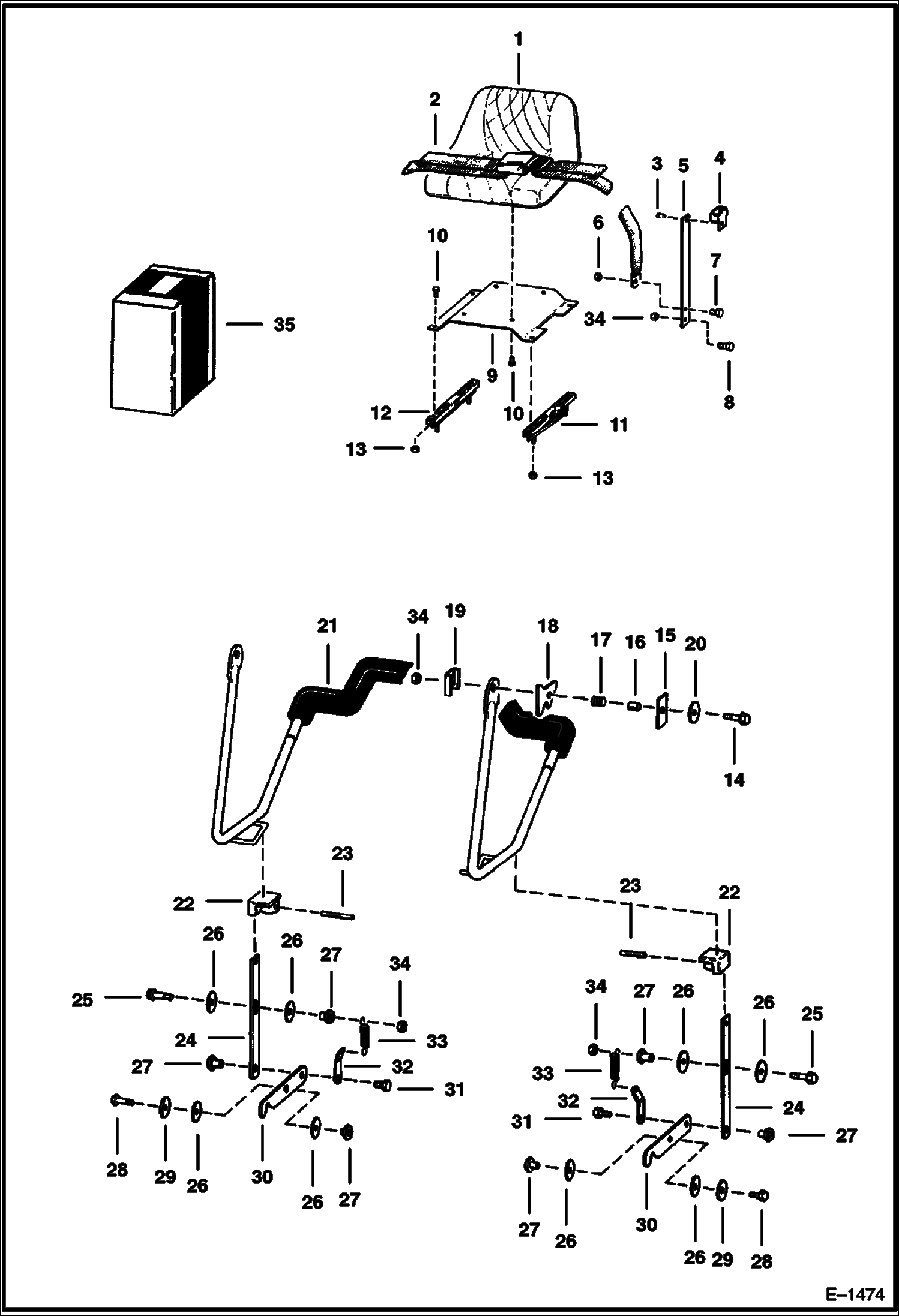

Запчасти Bobcat 400s SEAT & SEAT BAR MAIN FRAME

1

6591598

SEAT

2

SEAT BELT NLA - Use W/ 6565354 - 13.75 in guide assy. - Order Ref. 35 - Was 6565354 - A

2

SEAT BELT NLA - Use W/6711907 - 12.25 in. Guide assy. - Order 6728403 - Was 6667875 - A

2

SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt and (2) of 6725373 Spring Plate - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

6630207

RIVET 5

4

GUIDE NLA - Order 6703703 - Was 6565355

5

GUIDE ASSY NLA - W/Ref. 3 & 4 - 13.75 in. long - Use W/NLA 6564774 seat belt - Was 6565354 - A

5

GUIDE ASSY NLA - W/Ref. 3 and 4- 12.25 in. long - Use W/NLA 6667875 Seat belf - Order 6711908 Spring Plate - Ref. 4 and (2) of Ref. 3 - Was6711907 - A

5

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

85D7

NUT

7

17C716

BOLT

8

17C612

BOLT 5

9

6594257

BRACKET Was 6565287 - A

10

17C510

BOLT

11

6599779

ADJUSTER

12

6599780

TRACK

13

85D5

NUT 5

14

17C632

BOLT 5

15

6564506

WASHER

16

6564507

BUSHING

17

6704453

SPRING Was 6503387 - A

18

6563313

RETAINER

19

6563557

WASHER

20

25E17

WASHER 5

21

SEAT BAR See BTI278 NLA - Was 6564882 - A

22

6563148

BLOCK, SPRING

23

14J2512

PIN 5 Was 14J002510B - B

24

6564129

LINK

25

31C620

BOLT

26

6700170

WASHER nylon

27

6559479

NUT

28

35C612

BOLT Was 31C000612B - A

29

872229

WASHER

30

6593352

LOCK

31

17C608

BOLT

32

6564483

BRACKET

33

6505076

SPRING

34

85D6

NUT, 5

35

KIT NLA - W/ Ref. 2 and 5 - Order Ref. 2 (6725403 seat belt) - A
