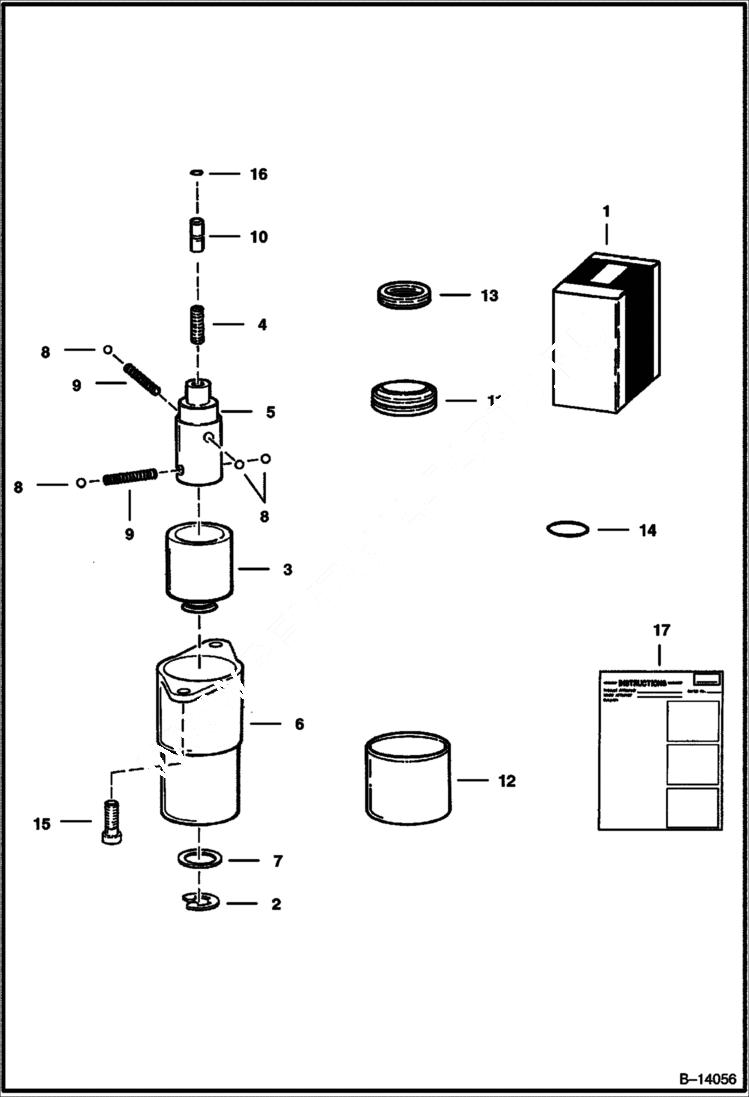

Запчасти Bobcat 400s FLOAT OPTION KIT ACCESSORIES & OPTIONS

1

6816719

FLOAT KIT float option - Ref. 2-17 - Was 6597449 - A

2

799119

RING

3

6531270

SLEEVE, DETENT

4

6586918

SCREW

5

6587575

ADAPTER detent

6

6589226

COVER, END 0.63'' flange

7

6592098

WASHER

8

6592105

BALL detent

9

6592107

SPRING detent

10

6596807

PLUG plastic - 0.46'' long

11

6646372

SEAL See BTI374 quad ring seal

12

6660644

CAP

13

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

14

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

15

29G416

BOLT

16

54K20002

O'RING 10

17

6724789

INSTRUCTIONS
