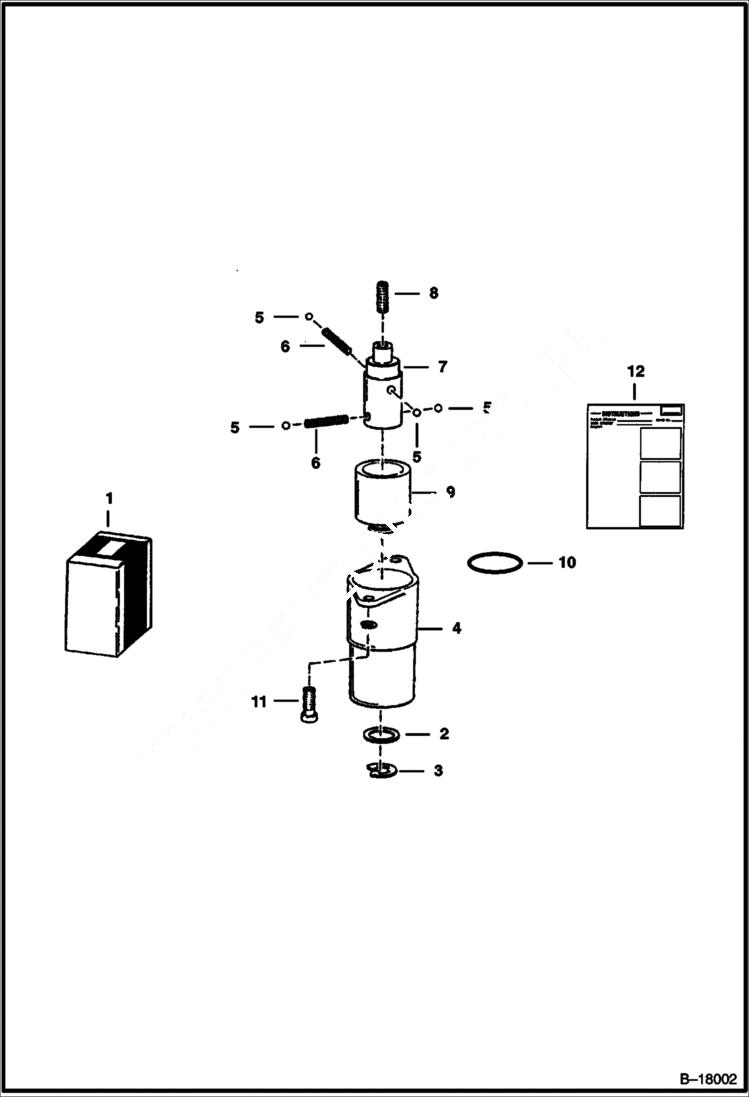

Запчасти Bobcat 400s FLOAT OPTION KIT ACCESSORIES & OPTIONS

1

KIT NLA - float option - Ref. 2-12 - Order 6816719 - Was 6589867 - A

2

799119

RING

3

6592098

WASHER

4

BONNET NLA - W/.25 Flange - Was 6592094 - A

4

6589226

COVER, END 0.63'' flange

5

6592105

BALL detent

6

6592107

SPRING detent

7

6587575

ADAPTER detent - Was 6592099 - A

8

6535747

SCREW Was 6632374 - A

9

6592096

SLEEVE detent

10

6659554

SEAL spool - Was 6646372 - A

11

6588163

SCREW .875'' - Was 69G000412B - B

11

6588982

SCREW 1.00''

12

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570146 - A
