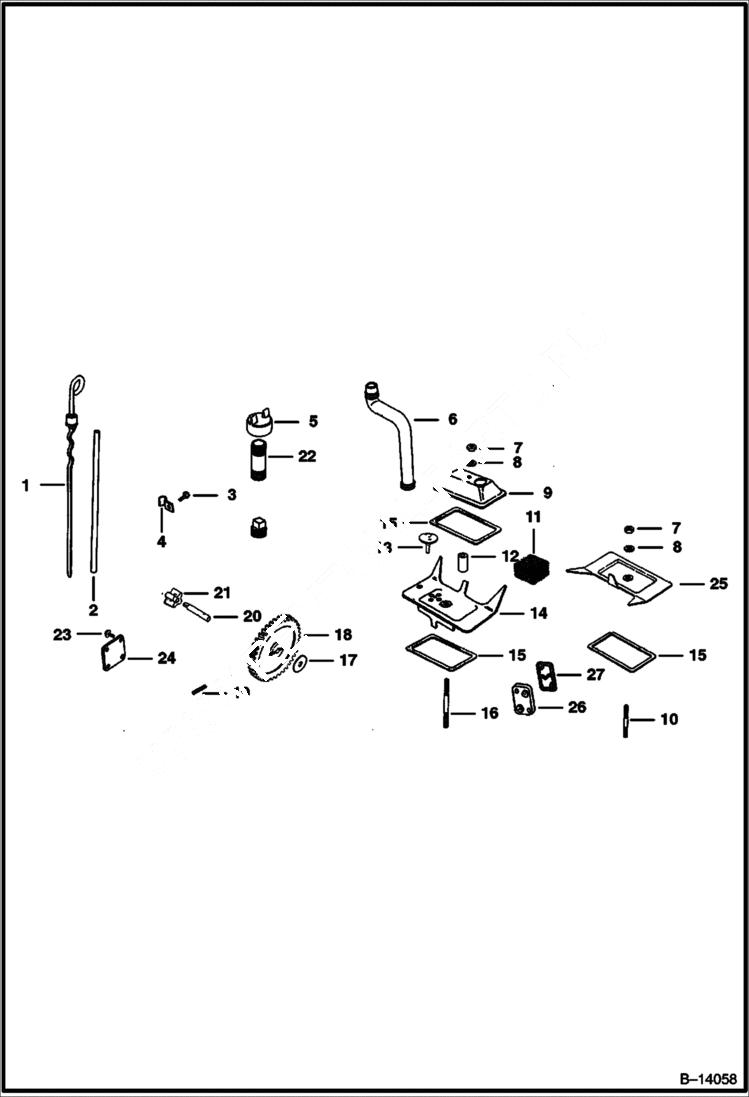

Запчасти Bobcat 400s OIL PUMP, DIPSTICK & BREATHER POWER UNIT

1

6599825

DIPSTICK

2

6632119

TUBE

3

45G1006

BOLT

4

6599868

CLIP

5

6632120

CAP

6

6632085

HOSE

7

61D4

NUT 5

8

6518949

WASHER

9

6599851

COVER

10

6599786

STUD

11

6599796

FILTER

12

6599822

SEAL

13

VALVE NSS - Was 6599888 - A

14

6669304

COVER W/Ref. 13 - Was 6599853 - A

15

6599836

GASKET

16

6518915

STUD

17

6599885

SPACER

18

6599831

GEAR oil pump

19

220940

PIN ROLL

20

6599841

SHAFT

21

6599807

ROTOR SET oil pump - Was 6632169 - A

22

6632118

NIPPLE

23

46G1006

SCREW

24

6599850

COVER

25

6599852

COVER

26

6632523

COVER Oil Filter

27

6632138

GASKET Oil Filter
