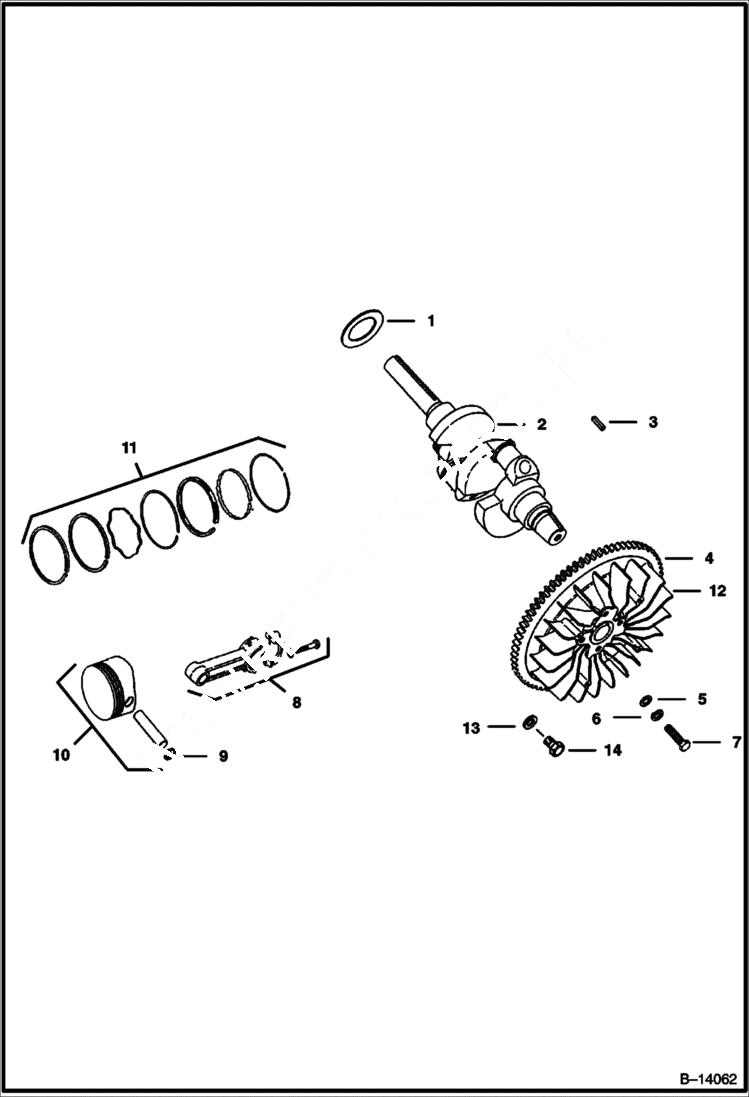

Запчасти Bobcat 400s PISTONS, CRANKSHAFT & FLYWHEEL POWER UNIT

1

6599890

WASHER thrust (.119/.122)

1

6632067

WASHER thrust (.128/.131)

1

6632068

WASHER thrust (.137/.140)

2

CRANKSHAFT NLA - Was 6630565 - A

3

7J2014

KEY

4

FLYWHEEL NLA - Was 6632136 - A

5

6599859

WASHER

6

23E6

WASHER

7

18C620

BOLT

8

6632140

ROD Std.

8

6632141

ROD .10

9

6599793

RETAINER

10

6632376

PISTON Std.

10

6632377

PISTON .003

10

6632378

PISTON .10

10

6632379

PISTON .020

10

6632380

PISTON .030

11

6632150

RING SET Std. & .003

11

6632151

RING SET .010

11

6632152

RING SET .020

11

6632153

RING SET .030

12

6632123

FAN

13

6632124

SLEEVE

14

35C408

BOLT
