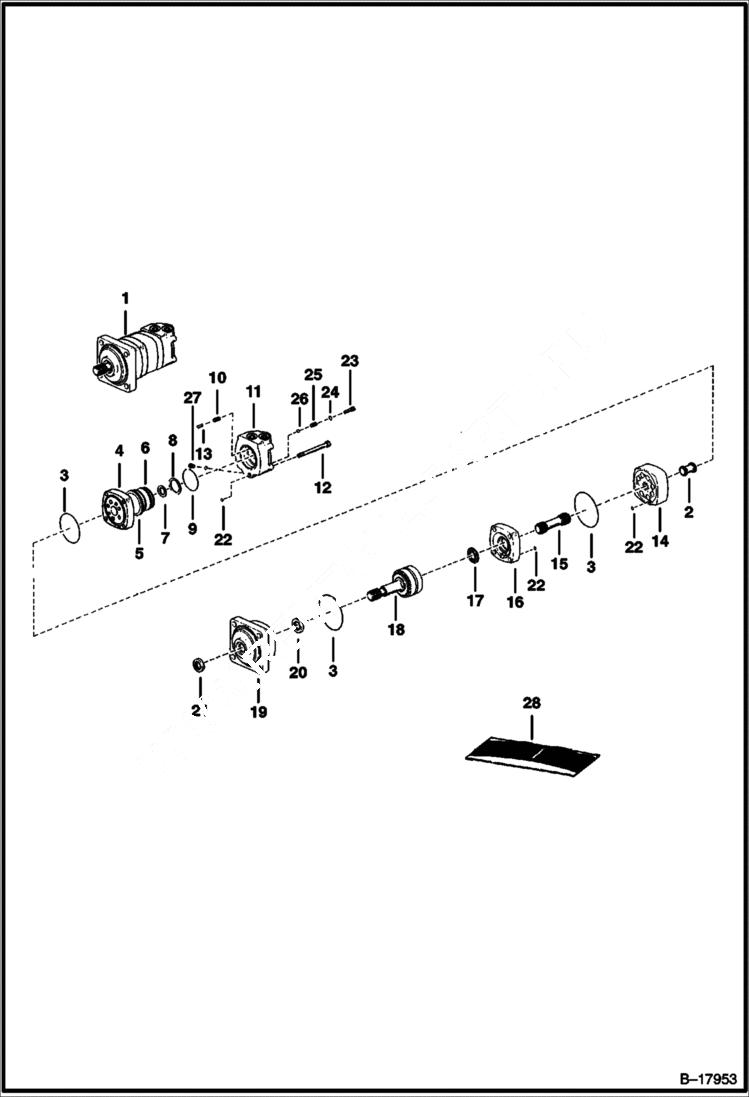

Запчасти Bobcat 400s HYDROSTATIC MOTOR (105-1102-005) (S/N 13097 & Below) HYDROSTATIC SYSTEM

1

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635 NLA - Order 6632177 Motor - Also for L.H. Motor Order (1) - 6529344 Hose & (1) - 17K000003B Elbow - For R.H. Motor Order (1) -17K-3 Elbow

2

1992084

DR VALVE

3

SEAL NSS

4

1992085

PLATE VLV

5

VALVE NLA - Was 1992086 - A

6

6630027

BALANCE RING balancing

7

SEAL NSS - inner

8

SEAL NSS - outer

9

SEAL NSS

10

1992088

SPRING

11

HOUSING NLA - W/Ref. 23-27 - Was 6630025 - A

12

6651950

BOLT Was 6630030 - A

13

1992102

PIN

14

GEROLER NLA - Was 6630026 - A

15

6630032

SHAFT

16

PLATE NLA - wear - Was 1992080B - A

17

SEAL NSS

18

BEARING ASSY NLA - W/Shaft - See Ref. 1 - Was 6630024 - A

19

HOUSING NSS - Was 6630031 - A

20

SEAL NSS

21

SEAL NSS

22

O-RING NSS

23

1992107

PLUG W/O-Ring

24

O-RING NSS

25

6190116

SPRING

26

10J8

BALL

27

1992104

PLUG W/O-Ring

28

6630079

SEAL KIT Ref. 3, 7-9, 17, 20-22 & 24
