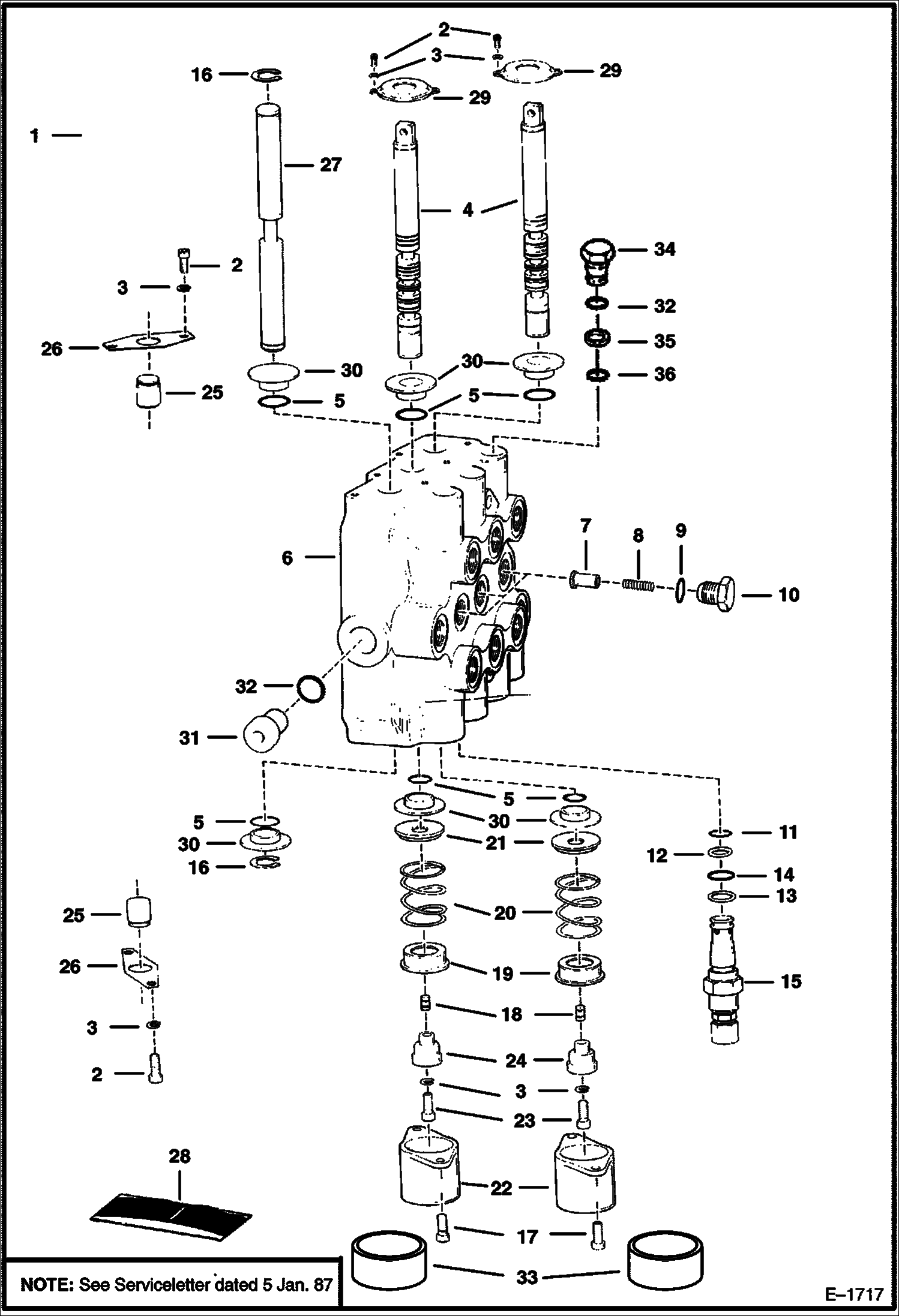

Запчасти Bobcat 400s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

VALVE NLA - Ref. 2-27, 29 & 30 - Was 6586290 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

SPOOL NSS

5

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

6

BODY NSS

7

6592115

SEAT

8

6592117

SPRING, LOAD CHECK

9

79K8

O RING 10

10

6592116

NUT load check

11

O-RING NSS

12

WASHER NSS

13

O-RING NSS

14

WASHER NSS

15

6676195

VALVE main - Was 6598959 - B

16

799119

RING

17

69G414

BOLT Was 6588164 - A

18

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

18

6596807

PLUG plastic - 0.46'' long

18

54K20002

O'RING 10

19

6592100

COLLAR

20

6587580

SPRING Was 6592106 - A

21

7211397

WASHER, SPRING Was 6587523 - A

22

BONNET NLA - W/.25'' Flange - Order 6587633, 6662848 & (2) 6588164 - Was 6592097 - A

22

7101345

BONNET, DETENT HYD VALVE W/.50'' Flange - Was 6587633 - A

23

6588166

SCREW Was 74G000416B - A

24

6592109

ADAPTER

25

PLUG NLA - Order Ref. 27

26

RETAINER NLA

27

6521958

PLUG

28

6816251

KIT, SEAL See BTI374 - Ref. 5, 9, 11-14, 18, 32, 35 & 36 - Was 6816717 - A

28

6661328

SEAL KIT Ref. 19-22 - Was 6592474 - A

28

6809425

SEAL KIT Ref 9, 32, 35 & 36

28

6589867

KIT See Illustration FLOAT OPTION KIT/ B18002 float option - Was 6539282 - A

29

6592123

RETAINER

30

6592103

BUSHING See Service Letter 5 Jan. 87

30

6538466

BUSHING With part number stamped on face

31

47K7

PLUG .875-14, W/Ref. 32

31

47K9

PLUG 1.1875-12, W/Ref. 37

32

79K10

O RING 10

33

6662848

CAP Use with 6587633 Bonnet - Ref. 22

34

6592720

PLUG

35

80K14

BACK-UP WASHER Was 73K000014B - B

36

58K014

O-RING 10 back-up washer required

36

6677106

O-RING Back-up Washer Not Required
