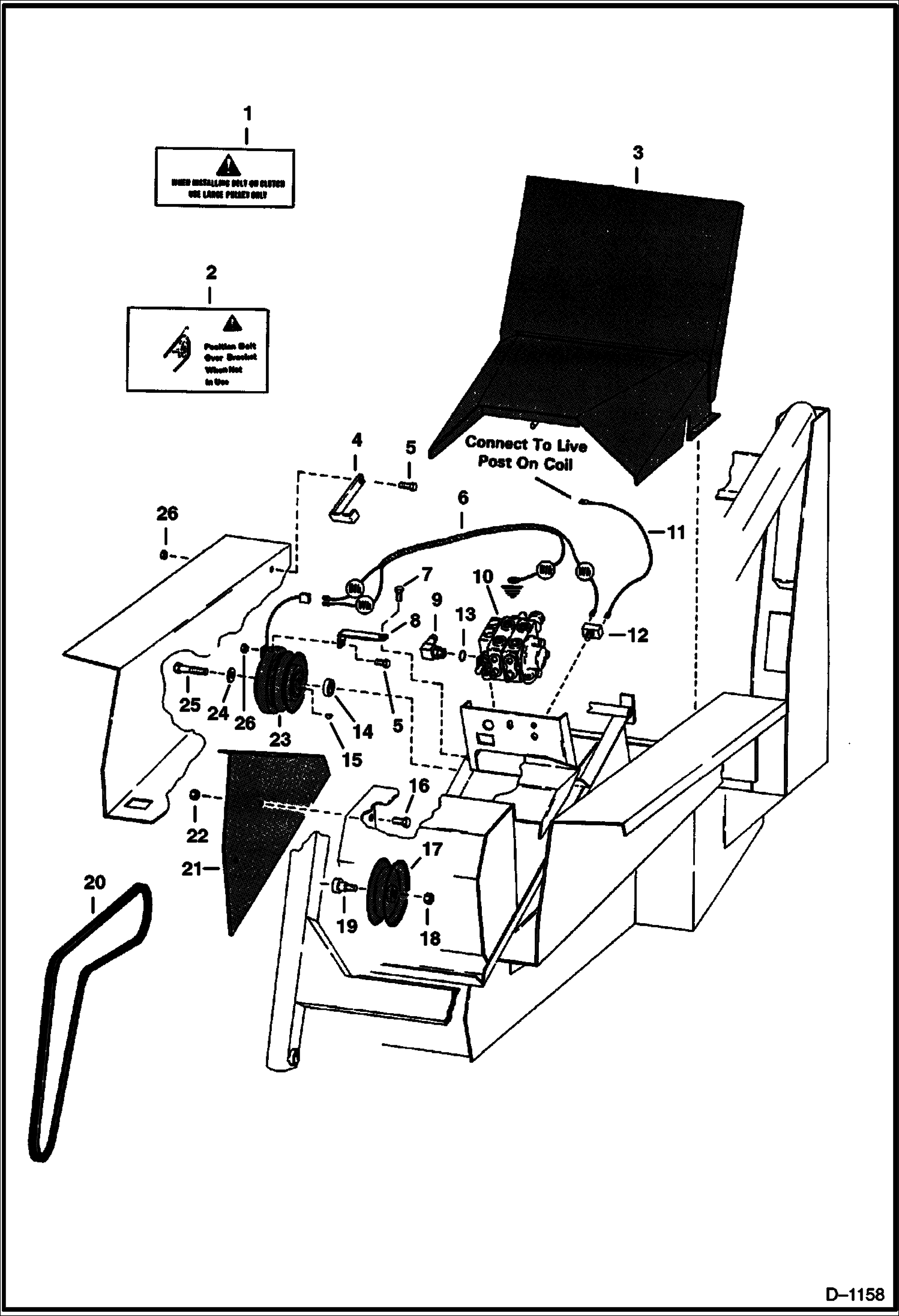

Запчасти Bobcat 300s P.T.O. DRIVE ACCESSORIES & OPTIONS

1

6542058

DECAL caution

2

6544150

DECAL belt position

3

SEAT PAN NLA - Was 6500589 - A

4

6544144

BRACKET belt position

5

17C424

BOLT

6

6541786

HARNESS wiring

7

17C412

BOLT 5

8

6541784

BRACKET

9

1308764

ELBOW

9

1308764

ELBOW

9

6519208

ELBOW

9

6519208

ELBOW

10

VALVE hydraulic control

11

WIRE NLA

12

6515521

SWITCH toggle

13

79K10

O RING 10 Use W/1308764

13

79K14

O RING 10 Use W/6519208

14

BUSHING NLA - Was 616823B - A

15

5J806

KEY

16

17C608

BOLT

17

6519202

PULLEY idler

18

NUT NLA - Was 65D000010B - A

19

6541783

SUPPORT idler pulley

20

6541810

V-BELT

21

6541800

SHIELD

22

NUT NLA - Was 65D000006B - A

23

CLUTCH NLA

24

25E21

WASHER 5

25

17C840

BOLT

26

61D4

NUT 5
