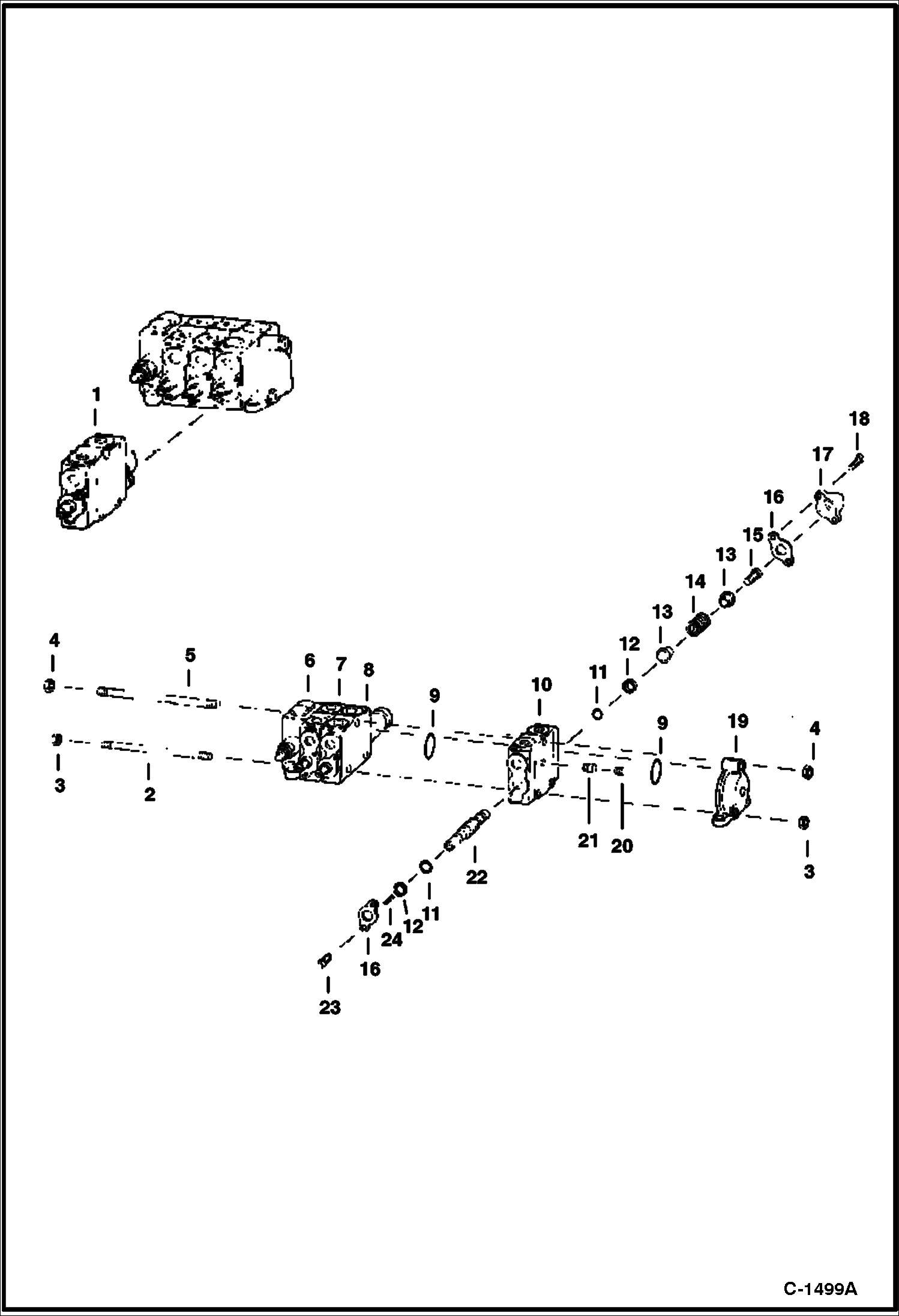

Запчасти Bobcat 300s VALVE SECTION - AUXILIARY CONTROL Husco ACCESSORIES & OPTIONS

1

SECTION NLA - valve - Auxiliary - Was 6517502 - A

2

948187

TIE ROD stud

3

61D5

NUT

4

62D6

NUT 5

5

SCREW NSS - stud

6

6517499

SECTION valve - Inlet

7

6517501

SECTION valve - Tilt

8

SECTION NLA - valve - Lift - Was 6508329 - A

9

25K40208

O RING 10

10

HOUSING NLA - valve

11

25K30018

O RING 10

12

948021

SEAL wiper

13

948017

SEAT spring

14

948018

SPRING compression

15

948191

CAPSCREW cap

16

948016

PLATE seal

17

948192

CAP spool

18

73G414

CAPSCRW10 cap - Was 11G000414B - A

19

948010

CAP valve - Outlet

20

948022

SPRING

21

948015

POPPET

22

SPOOL NLA - valve

23

SCREW NLA - Was 71G000406B - A

24

6518625

PLUNGER end
