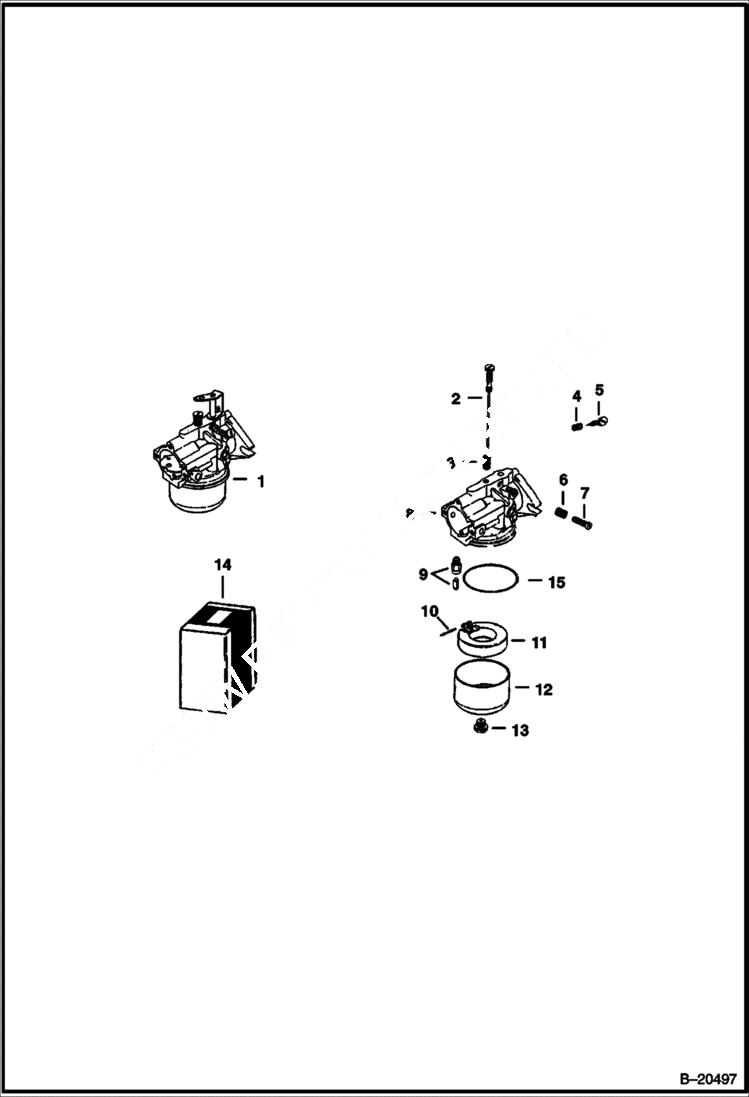

Запчасти Bobcat 300s CARBURETOR POWER UNIT

1

6518858

CARBURETOR W/Ref. 2-13

2

6518989

NEEDLE main fuel adjusting

3

6518934

SPRING

4

6518933

SPRING

5

6518940

NEEDLE idle adjusting

6

6518936

SPRING

7

6518937

SCREW throttle lever adjusting

8

HOUSING NLA - carburetor

9

NEEDLE NSS

9

SEAT NSS

10

PIN NSS - float hinge

11

6518935

FLOAT For Kohler Carburetor

11

6670850

FLOAT For Walbro Carburetor

12

BOWL NLA - fuel

13

6518938

NUT bowl - Includes Gasket

14

6518877

REPAIR KIT carburetor - Includes Ref. 9 & 10 Plus Gaskets - Used with Kohler 47-853-31 Carburetor

14

6648829

REPAIR KIT carburetor - Includes Ref. 9 & 10 Plus Gaskets - Used with Walbro Carburetor

15

6669075

GASKET carburetor bowl
