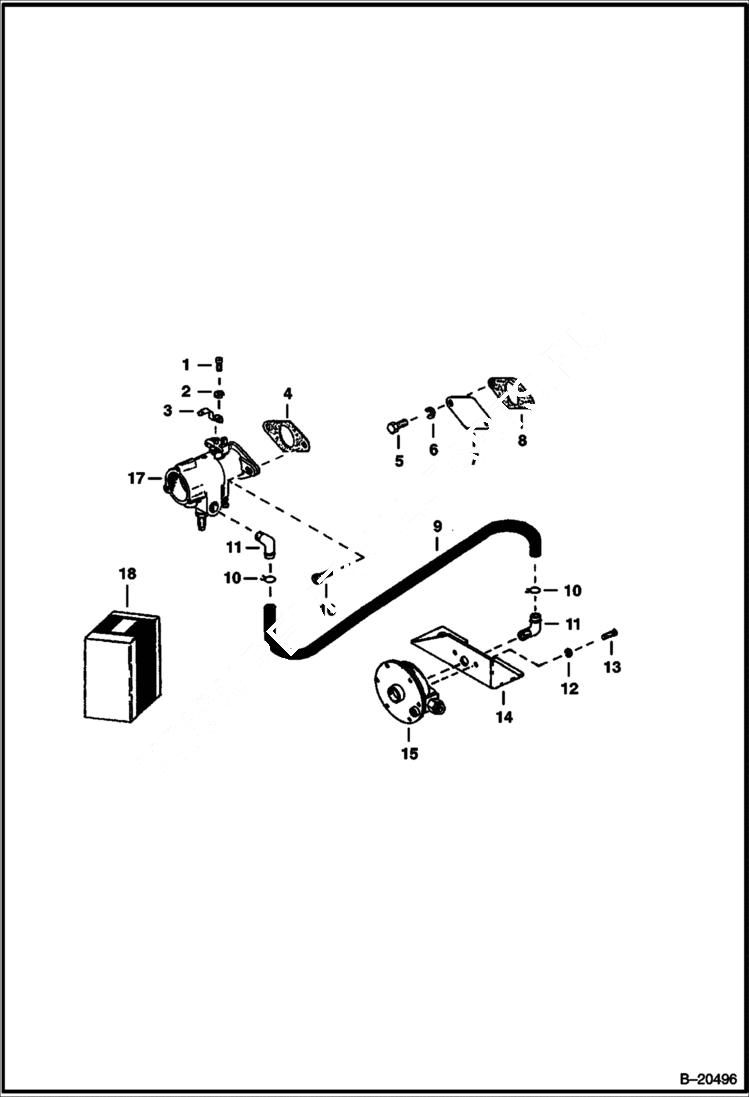

Запчасти Bobcat 300s FUEL SYSTEM POWER UNIT

1

85G805

SCREW

2

17E8

WASHER

3

LEVER NLA - throttle - Was 6519491 - A

4

6518866

GASKET

5

17C624

BOLT 5

6

4E6

WASHER

7

6517213

COVER fuel pump

8

6513269

GASKET fuel pump

9

HOSE NLA - fuel - ORder 8.25'' of 743563 - Was 6519486 - A

10

42H12

CLAMP 10 Was 17H-12 - A

11

ELBOW NSS - Was 6519489 - A

12

17E10

WASHER

13

42G1007

BOLT

14

BRACKET NLA - Was 6519487 - A

15

6519361

REGULATOR

16

SCREW NLA - Was 47G516 - A

17

6519490

CARBURETOR LPG

18

6542800

LP KIT See Illustration LP GAS TANK & ATTACHING PARTS/ C1605 CONVERSION - REF. 1-17 & 1-23
