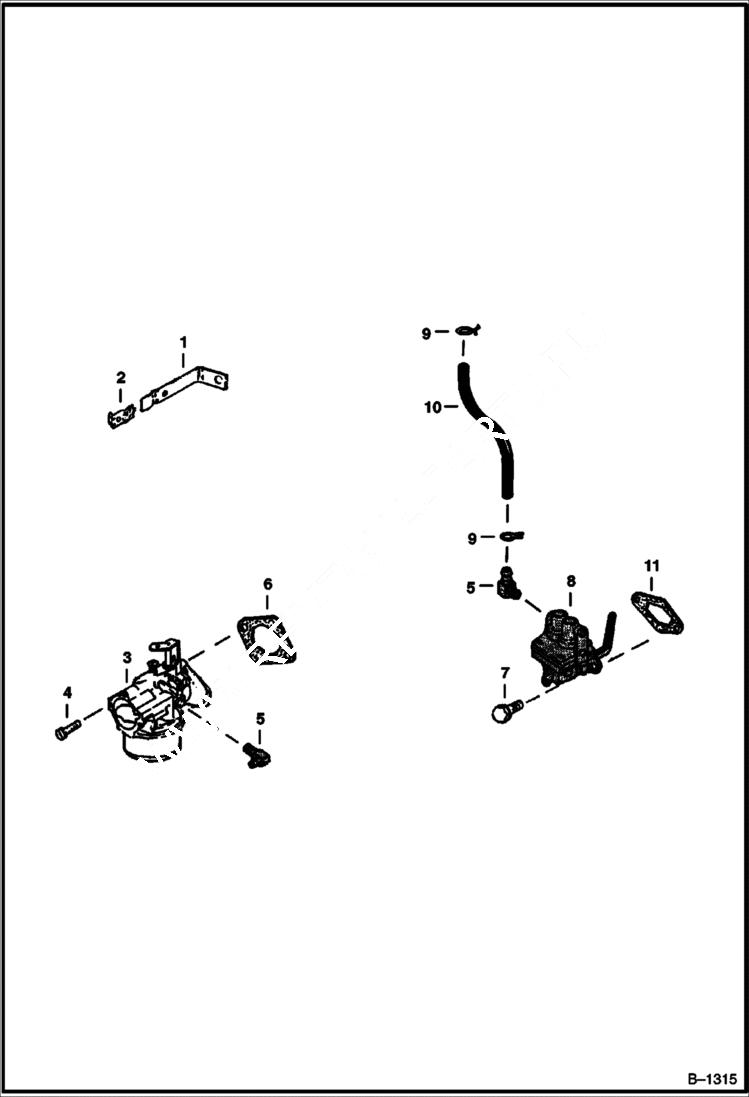

Запчасти Bobcat 300s FUEL SYSTEM POWER UNIT

1

6518913

BRACKET choke

2

6518907

CLIP choke cable

3

6518858

CARBURETOR See Illustration CARBURETOR/ B20497

4

SCREW NLA - Was 47G516 - A

5

6632130

ELBOW Was 6518958 - A

6

6518866

GASKET carburetor

7

43G412

SCREW

8

6518798

FUEL PUMP

9

42H12

CLAMP 10 Was 17H000008B - A

10

6518959

FUEL LINE

11

6513269

GASKET fuel pump
