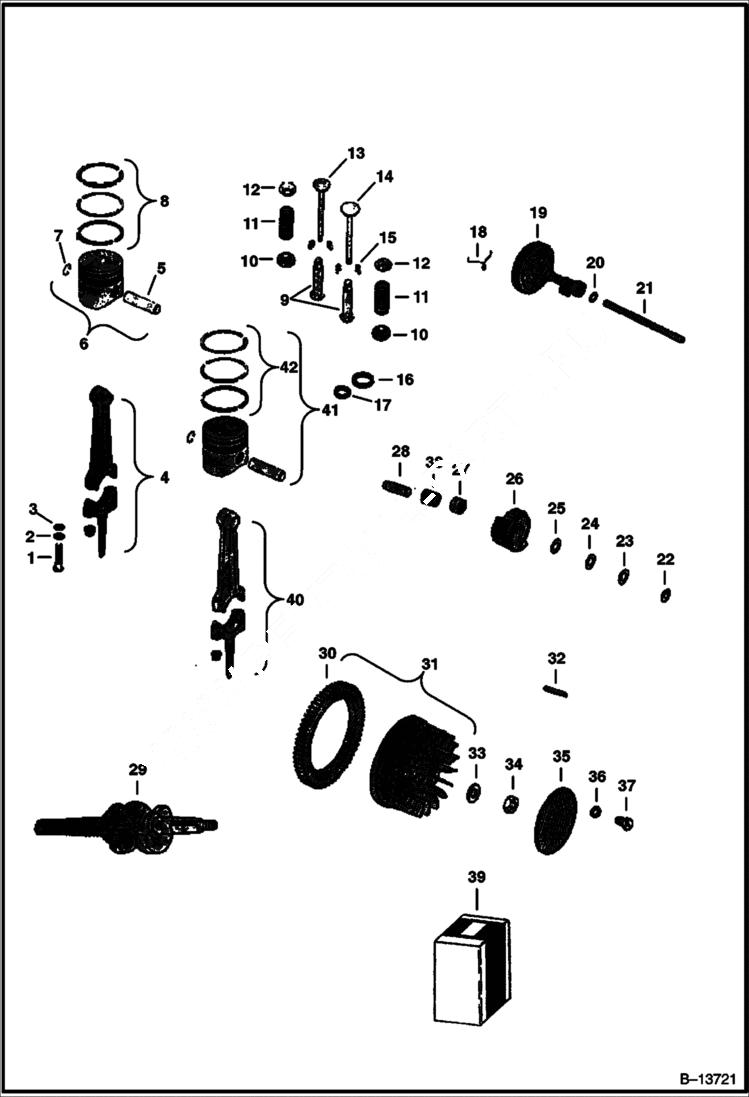

Запчасти Bobcat 300s INTERNAL PARTS POWER UNIT

1

BOLT NSS

2

4E6

WASHER

3

890414

WASHER

4

6518848

ROD STD. - WHEN REPLACING W/Ref. 1-3

4

6518849

ROD .010 - W/Ref. 1-3

5

PISTON PIN NSS

6

6632350

PISTON ASSY. STD. - W/Ref. 5, 7 & 8

6

6632352

PISTON ASSY. .010 - W/Ref. 5 & 7

6

6632353

PISTON ASSY. .020 - W/Ref. 5, 7 & 8

6

6632354

PISTON ASSY. .030 - W/Ref. 5, 7 & 8

6

6632351

PISTON ASSY. .003 - W/Ref. 5, 7 & 8

7

6513949

RETAINER

8

RING KIT NLA - Std. - For one piston - Was 6512228 - A

8

RING KIT NLA - .010 - For one piston - Was 6512229 - A

8

RING KIT NLA - .020 - For one piston - Was 6512230 - A

8

RING KIT NLA - .030 - For one piston - Was 6512231 - A

9

6518901

TAPPET valve

10

6632091

ROTATOR intake and exhaust valve - Was 6518870 - A

11

6518898

SPRING valve

12

6518883

RETAINER valve spring

13

6518822

VALVE exhaust - Engines W/Spec Suffix A, B or C

13

6519668

VALVE exhaust - Engines W/Spec No. 60134, Suffix D and Above

14

6518906

VALVE intake

15

6518861

KEY RETAINER retainer

16

6518872

INSERT intake valve, also used for exhaust valve on engines with Spec. #60134, suffix D & above

17

6518871

INSERT exhaust valve - Engines W/Spec Suffix A, B or C

18

SPRING NLA - actuating - Was 6510627 - A

19

6518910

CAMSHAFT

20

6518863

SPACER camshaft - .005

20

6518864

SPACER camshaft - .010

21

6518889

PIN camshaft

22

RETAINER NSS - balance gear - W/Ref. 38

23

SPACER NSS - balance gear - W/Ref. 38

24

SPACER NSS - W/Ref. 38

25

SPACER NSS - Engines W/Spec Suffix A, B or C - W/Ref. 38

26

6518827

GEAR balance - W/Ref. 27

27

6630175

BEARING Torrington - .6825-.6828 O.D.

28

6518824

SHAFT balance gear

29

6518859

CRANKSHAFT

30

RING GEAR NSS

31

6518846

FLYWHEEL W/Ref. 30

32

KEY NLA - Was 7J2106 - A

33

WASHER NLA - Was 6518953 - A

34

111592

NUT

35

6518832

AIR SCREEN

36

6518952

WASHER flat

37

6G410

SCREW truss

38

SPACER NSS

39

6511796

SPACER KIT W/Ref. 22-25 & 38

40

6661115

ROD Std. - Use W/Ref. 41

40

6661128

ROD .010 - Use W/Ref. 41

41

6661129

PISTON ASSY. STD. - W/Ref. 5, 7 & 42

41

6661130

PISTON ASSY. .003 - W/Ref. 5, 7 & 42

41

6661131

PISTON ASSY. .010 - W/Ref. 5, 7 & 42

41

PISTON ASSY. NLA - .020 - W/Ref. 5, 7 & 42 - Was 6661132 - A

41

6661133

PISTON ASSY. .030 - W/Ref. 5, 7 & 42

42

6661181

RING SET Std.

42

6661134

RING SET 0.01

42

6661135

RING SET 0.02

42

6661136

RING SET 0.03
