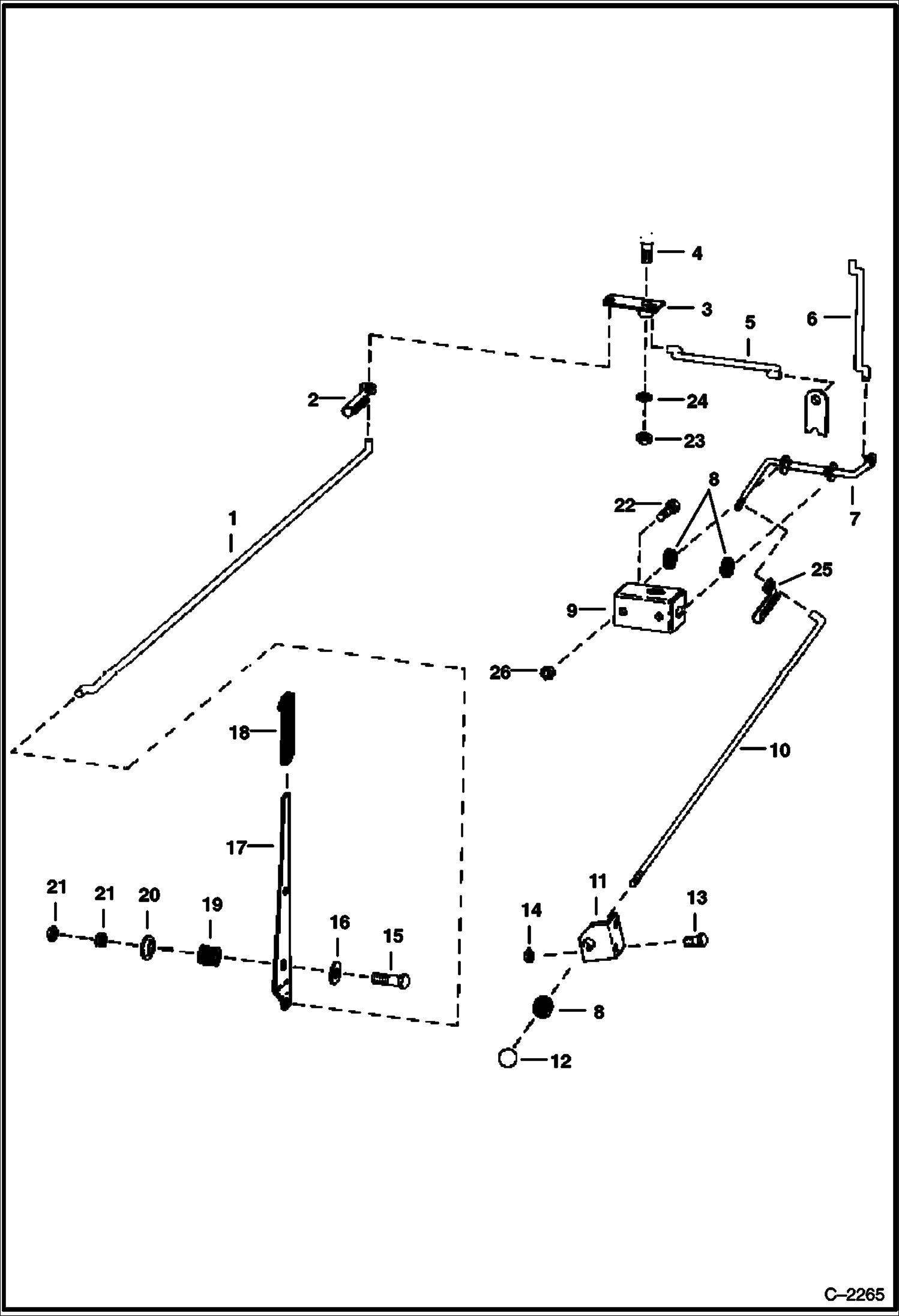

Запчасти Bobcat 300s CHOKE & THROTTLE POWER UNIT

1

6555549

ROD

2

6519479

CLIP

3

6552769

ARM

4

1312710

SCREW

5

6552770

ROD throttle

6

6552764

ROD choke

7

6552761

ROD choke

8

6519484

GROMMET

9

6552767

BRACKET

10

6559497

ROD choke

11

BRACKET NLA - Was 6552760 - A

12

6519552

KNOB

13

17C512

BOLT 5

14

61D5

NUT

15

17C628

BOLT

16

6562127

WASHER

17

6555550

LEVER throttle

18

6553557

GRIP

19

6704453

SPRING Was 6503387 - A

20

6505623

WASHER centering

21

61D6

NUT 5

22

17C408

BOLT

23

91D5

NUT 5 Was 81D000005B - A

24

25E14

WSHR

25

6519480

CLIP

26

61D4

NUT 5
