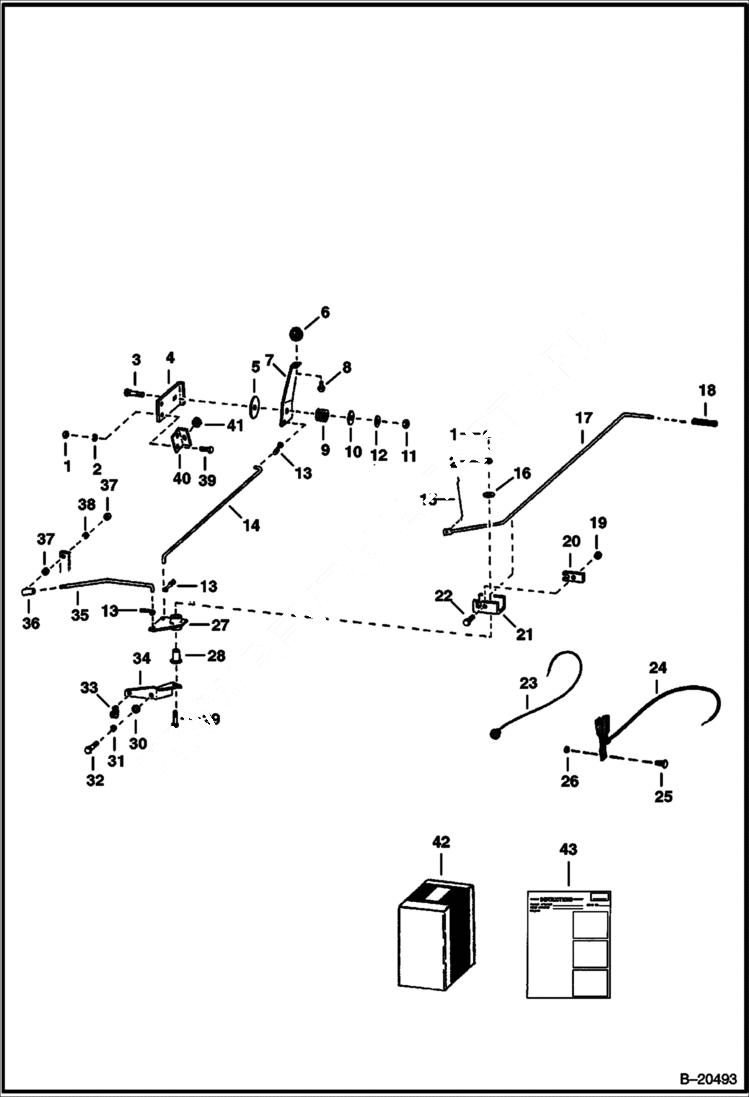

Запчасти Bobcat 300s THROTTLE & CHOKE POWER UNIT

1

61D5

NUT

2

4E5

WASHER

3

7C524

SCREW carriage

4

6546127

PLATE

5

6562127

WASHER

6

KNOB NLA - Was 641084 - A

7

6546128

ARM throttle control

8

18C508

BOLT

9

6704453

SPRING compression - Was 6503387 - A

10

6505623

WASHER centering

11

91D5

NUT 5 Was 81D000005B - A

12

25E17

WASHER 5

13

6519479

CLIP Rod

14

6546130

ROD

15

6546944

LINK wire

16

25E16

WSHR

17

6546845

ROD choke

18

GRIP NLA - Was 6510299 - A

19

81D4

NUT

20

6546844

BRACKET choke rod

21

6546846

BRACKET choke mounting

22

17C410

BOLT 10

23

6500756

CABLE choke

24

6500755

THROTTLE assy.

25

SCREW NLA - Was 5G001008B - A

26

81D6

NUT Was 44D-6 - A

27

6546123

PLATE

28

6515202

BUSHING flange

29

17C532

BOLT 5

30

25E14

WSHR

31

4E4

WASHER

32

17C412

BOLT 5

33

30H7

CLAMP

34

6546129

BRACKET

35

6546126

ROD

36

6515194

BALL JOINT

37

12D10

NUT

38

17E10

WASHER

39

17C512

BOLT 5

40

6546847

BRACKET

41

6518242

GROMMET

42

6546806

KIT throttle conversion - Ref. 1-14, 16 & 27-39

42

6543862

KIT choke conversion - Includes Ref. 15, 17-22, 40 & 41 Plus 6545758 Decal

43

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6545893 - A
