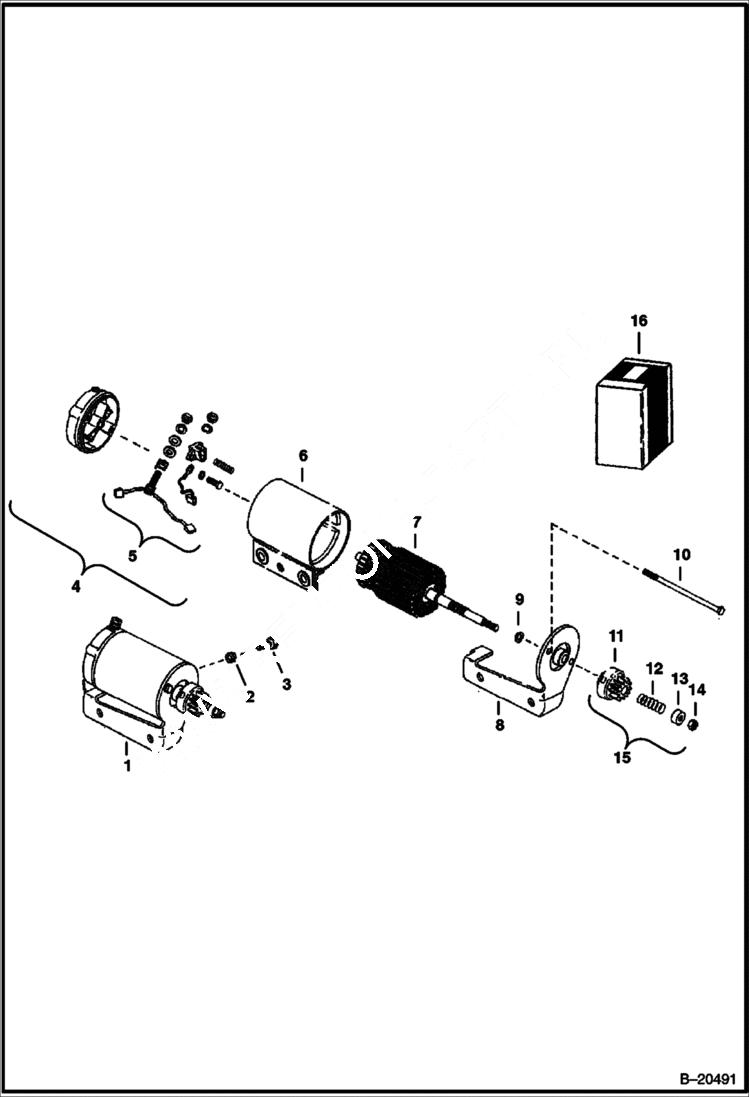

Запчасти Bobcat 300s STARTER ELECTRICAL SYSTEM

1

STARTER NLA - W/Ref. 4-14 - Order 6662906 - Was 6518265 - A

2

4E6

WASHER lock

3

6518881

BOLT

4

KIT NLA - end cap & holder - Was 6518979 - A

5

6512193

KIT brush and spring

6

HOUSING NLA - armature

7

6518980

ARMATURE

8

6518981

BRACKET mounting

9

6518982

WASHER thrust

10

6518983

BOLT

11

GEAR NSS

12

SPRING NSS - anti-drift

13

SPACER NSS - gear stop

14

NUT NSS

15

6513267

KIT drive assembly - W/Ref. 11-14

16

6518995

KIT dust shield
