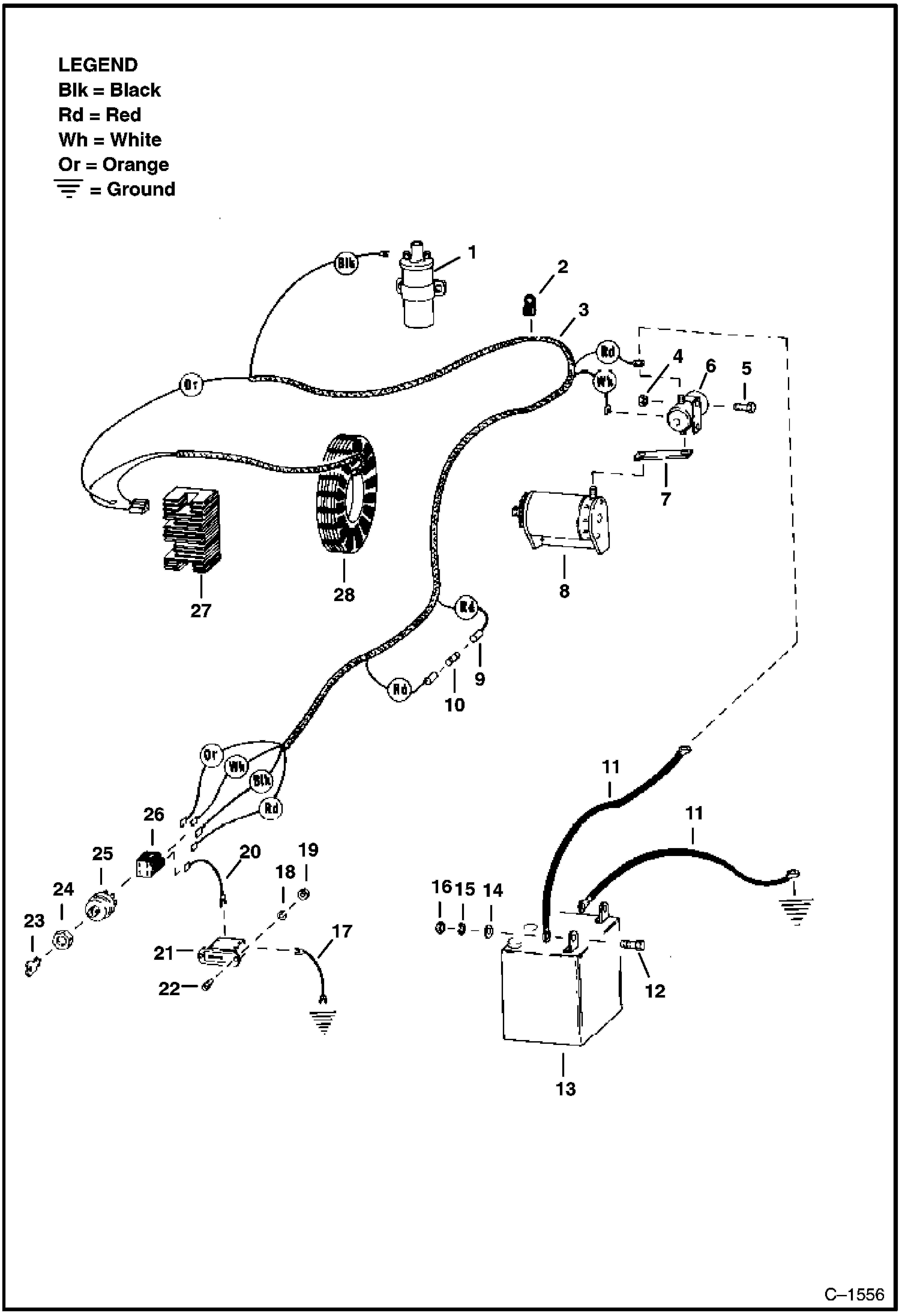

Запчасти Bobcat 300s MAIN FRAME ELECTRICAL CIRCUITRY S/N 4953-B-1577-UGM & Above ELECTRICAL SYSTEM

1

2503976

IGN COIL ignition

2

30H27

CLAMP cable

3

6540304

HARNESS wiring

4

81D4

NUT

5

17C408

BOLT

6

6659319

SOLENOID starter - Was 6632186 - A

7

STRAP NLA - starter - Was 6506080 - A

8

STARTER See Illustration STARTER/ B13723 See Illustration STARTER/ B20491

9

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

10

608869

FUSE 30 amp.

11

743367

CABLE battery

12

17C416

BOLT

13

6547383

BATTERY

13

6630152

CAP battery

14

25E13

WASHER 5 flat

15

4E4

WASHER lock

16

61D4

NUT 5

17

WIRE NLA - ground

18

12E6

WASHER lock - Was 14E000006B - A

19

12D6

NUT 10

20

WIRE NLA - jumper

21

6664886

HOURMETER Was 6631657 - A

22

85G608

SCREW

23

KEY NSS - ignition

24

6502904

NUT ignition switch

25

6519070

SWITCH ignition - W/Key & Hardware

26

6519041

CONNECTOR switch

27

RECTIFIER See Illustration ALTERNATOR/ B1310 W/RECTIFIER NLA - W/Rectifier - Order 7015346 - Was 6518263 - A

28

6518264

STATOR See Illustration ALTERNATOR/ B1310
