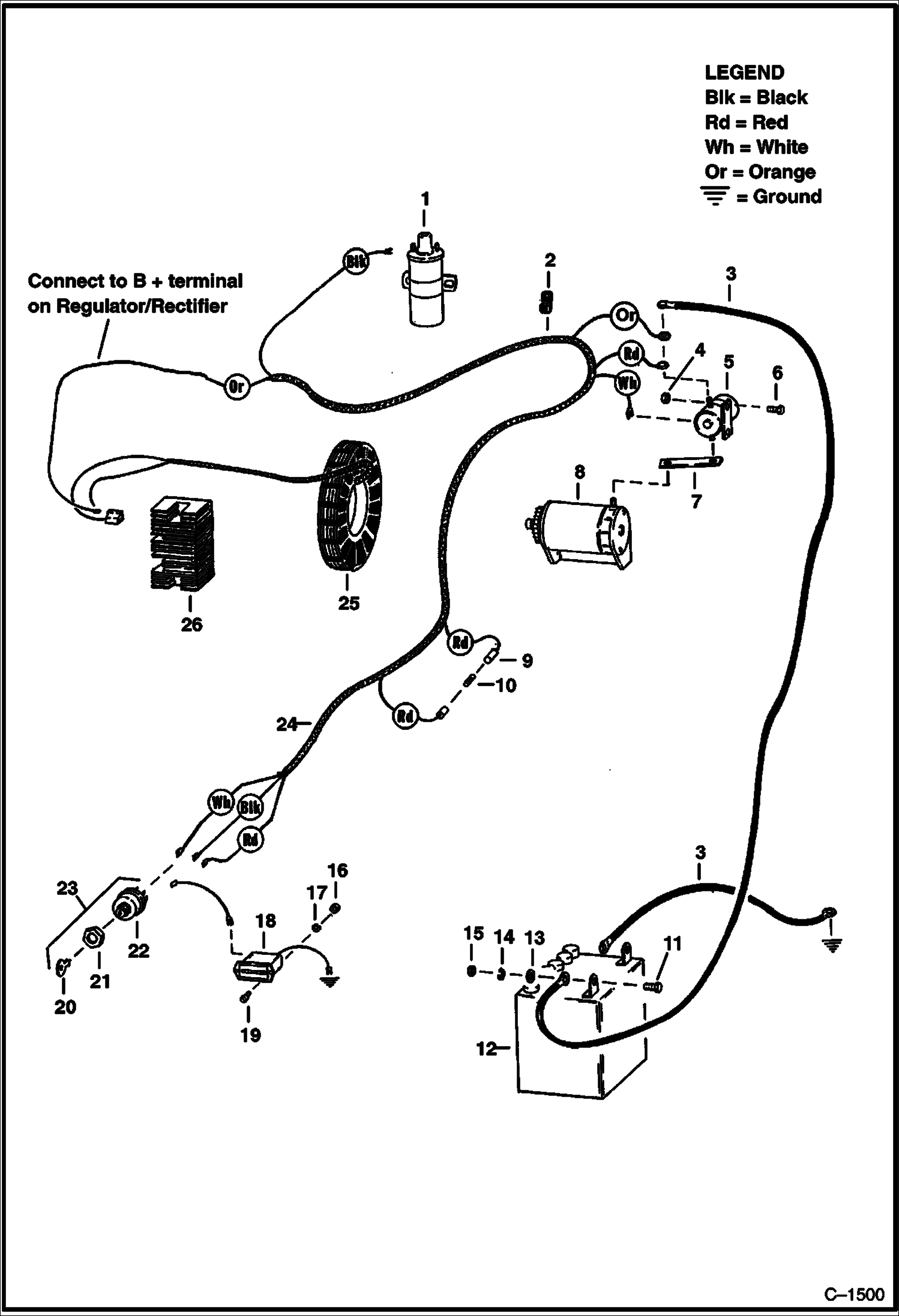

Запчасти Bobcat 300s MAIN FRAME ELECTRICAL CIRCUITRY S/N 4953-B-1576-UGM & Below ELECTRICAL SYSTEM

1

2503976

IGN COIL ignition

2

30H27

CLAMP cable

3

743367

CABLE battery

4

81D4

NUT

5

6659319

SOLENOID starter - Was 6632186 - A

6

17C408

BOLT

7

STRAP NLA - starter - Was 6506080 - A

8

STARTER See Illustration STARTER/ B13723 See Illustration STARTER/ B20491

9

HOLDER NLA - W/40 amp. fuse - Was 733642 - A

10

608869

FUSE 30 amp.

11

17C416

BOLT

12

6547383

BATTERY 12 volt

12

6630152

CAP battery

13

25E13

WASHER 5 flat

14

4E4

WASHER lock

15

61D4

NUT 5

16

12D6

NUT 10

17

12E6

WASHER lock - Was 14E000006B - A

18

6664886

HOURMETER Was 6631657 - A

19

85G608

SCREW

20

6505412

KEY ignition

21

NUT NSS - ignition switch

22

SWITCH NSS - ignition

23

6519070

SWITCH ignition - Key Start - W/Key & Hardware

24

HARNESS See Illustration MAIN FRAME ELECTRICAL CIRCUITRY/ C1556 NLA - WIRING - ORDER 6540304 HARNESS, 6519041 CONNECTOR & 6519070 SWITCH

25

6518264

STATOR See Illustration ALTERNATOR/ B1310

26

RECTIFIER See Illustration ALTERNATOR/ B1310 W/RECTIFIER NLA - W/Rectifier - Order 7015346 - Was 6518263 - A
