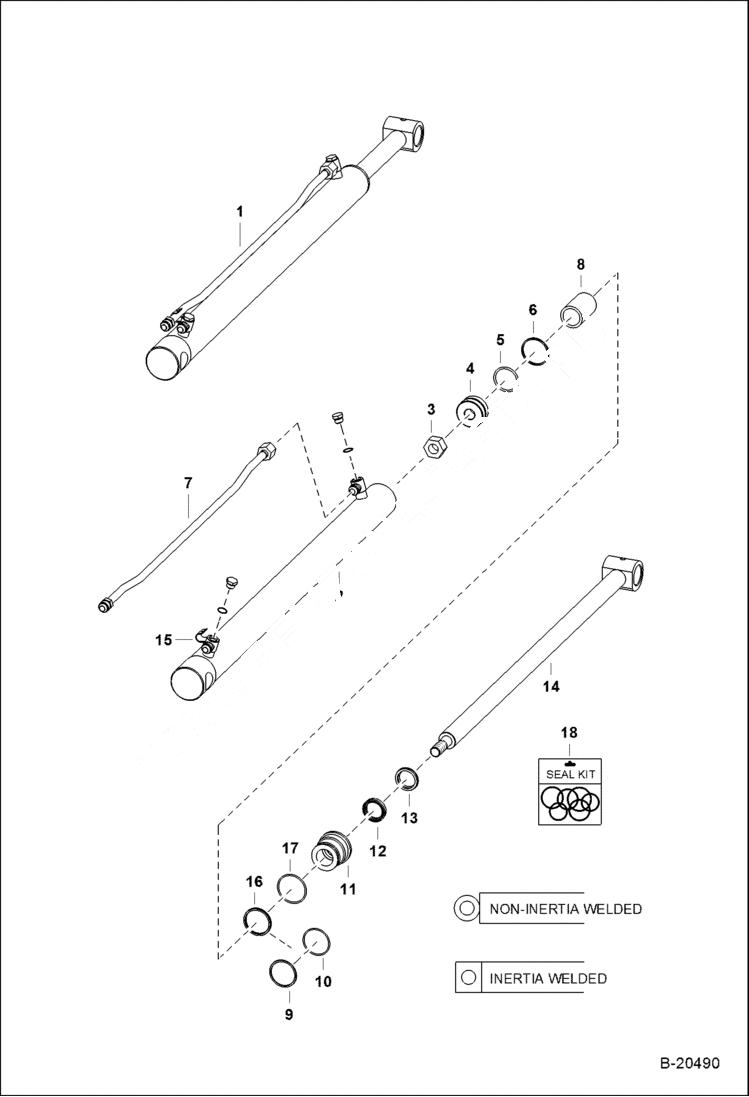

Запчасти Bobcat 300s LIFT CYLINDER W/Replacement Tube HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-14 - Order 6587789 - Was 6592983 - A

1

6587789

CYLINDER, LIFT

2

CASE NLA - Cylinder - Order 6587792 & 6588189 - Was 6592989 - A

2

6587792

CASE

3

92D12

NUT Was 86D000012B - B

4

6661694

PISTON Was 6558196 - B

5

6516231

SEAL Was NSS - D

6

54K30118

O-RING Was 25K030118B - A

7

6529382

TUBE For Non Inertia Welded - See note - Was 6592984 - A

7

6588189

TUBE For Inertia Welded - See note

8

6500892

SPACER

9

54K40124

O-RING Was 25K040124B - A

10

73K224

RING Back-up - Was NSS - D

11

6504933

HEAD

12

6667323

SEAL rod - Was 6704243 - A

13

6666542

SEAL, WIPER ROD Was NSS - D

14

6592903

ROD

15

6690910

CLAMP

16

7008781

SEAL, QUAD

17

82K136

O-RING

18

7137771

SEAL KIT Ref. 3, 5, 6, 12, 13, 16, & 17 - Was 6803472 - A
