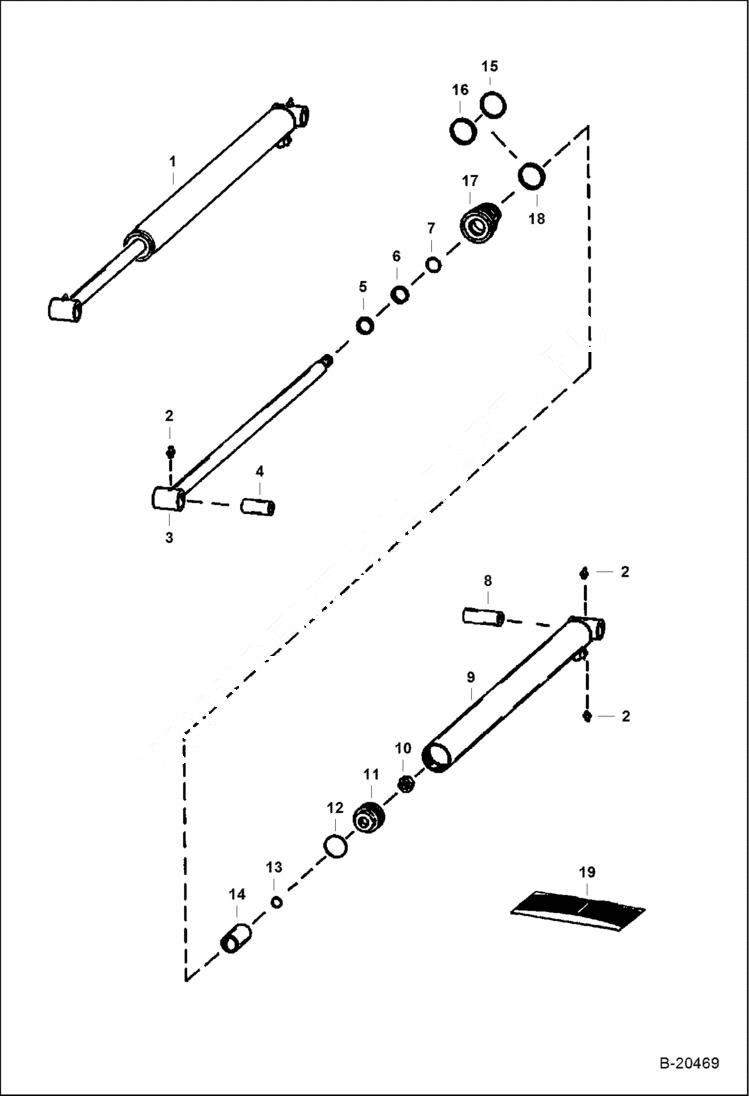

Запчасти Bobcat 300s LIFT CYLINDER W/Weld on Tube HYDRAULIC SYSTEM

1

CYLINDER NLA - lift - Ref. 3, 5-7 & 9-17 - Order 6587789 - Was 6500768 - A

2

10H25

FITTING, GREASE 5

3

6592903

ROD Piston

4

6500820

BEARING

5

1657083

WIPER ROD Wiper - Was NSS - D

6

6667323

SEAL U-cup - Was 6704243 - A

7

O-RING NSS

8

6500821

BEARING

9

CASE NLA - Order 6592989 & 6529382

10

92D12

NUT Was 86D000012B - B

11

6558196

PISTON

12

54K30118

O-RING Was 25K030118B - A

13

6516231

SEAL Was NSS - D

14

6500892

SPACER

15

54K40124

O-RING Was 25K040124B - A

16

73K224

RING Back-up - Was NSS - D

17

6504933

HEAD

18

7008781

SEAL, QUAD

19

7137771

SEAL KIT Ref. 6, 10, 12, 13, 18 - Was 6803472 - A
