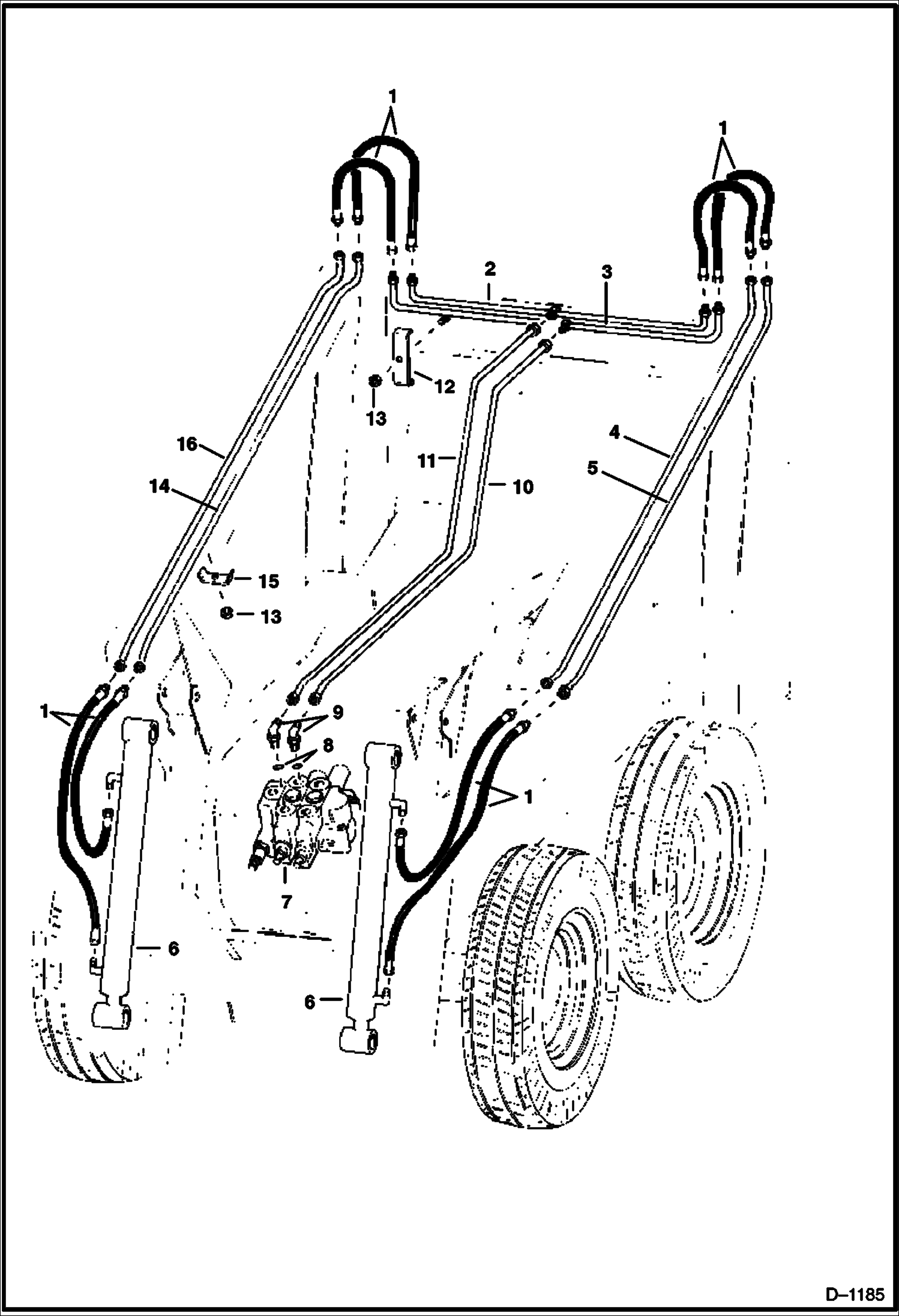

Запчасти Bobcat 300s TILT CYLINDER CIRCUITRY W/Ward or Cessna Valve HYDRAULIC SYSTEM

1

6500832

HOSE

2

TUBE NLA - Was 6500742 - A

3

TUBE NLA - Was 6500740 - A

4

TUBE NLA - Was 6500772 - A

5

TUBE NLA - Was 6500797 - A

6

CYLINDER See Illustration TILT CYLINDER/ C1456 TILT NLA - tilt - Was 6560924 - A

7

CONTROL VALVE See Illustration VALVE SECTION - INLET/ B1648 NLA - WARD - WAS 6512017 - A

7

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ C1674 NLA - CESSNA - WAS 6510798 - A

8

79K6

O RING 10

9

17K5

ELBOW W/Ref. 8

10

TUBE NLA - Was 6500734 - A

11

6500726

TUBE

12

6502773

CLAMP tube

13

81D6

NUT

14

TUBE NLA - Was 6500854 - A

15

6500989

CLAMP tube

16

TUBE NLA - Was 6500890 - A
