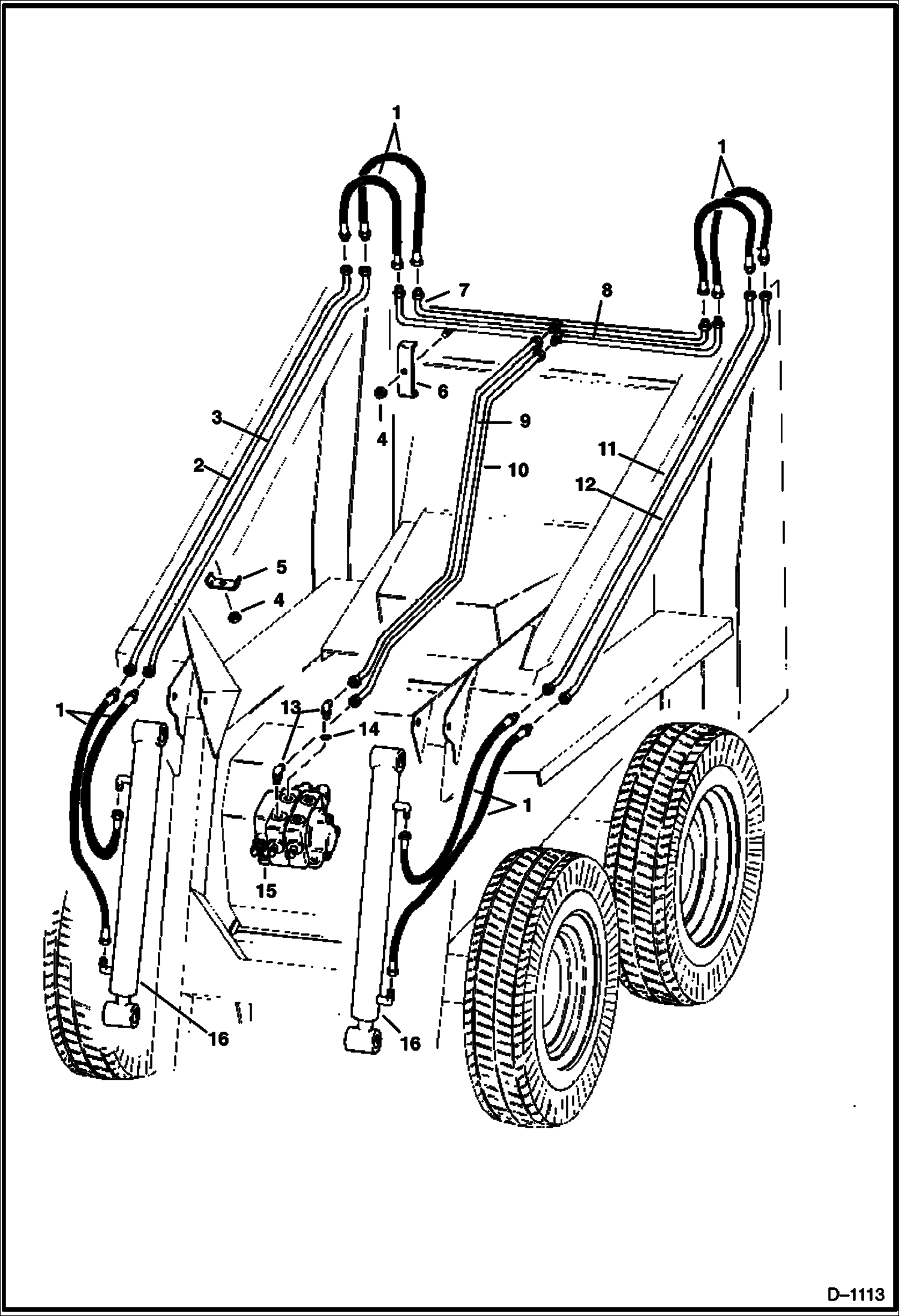

Запчасти Bobcat 300s TILT CYLINDER CIRCUITRY W/Husco Valve - S/N 4953-B-3130 & Below & B-3141 thru B-3160 HYDRAULIC SYSTEM

1

6500832

HOSE

2

TUBE NLA - Was 6500890 - A

3

TUBE NLA - Was 6500854 - A

4

81D6

NUT

5

6500989

CLAMP tube

6

6502773

CLAMP tube

7

TUBE NLA - Was 6500742 - A

8

TUBE NLA - Was 6500740 - A

9

6500726

TUBE

10

TUBE NLA - Was 6500734 - A

11

TUBE NLA - Was 6500772 - A

12

TUBE NLA - Was 6500797 - A

13

1300059

ELBOW

13

1300059

ELBOW

13

17K5

ELBOW

13

17K5

ELBOW

14

79K6

O RING 10

14

79K6

O RING 10

14

79K8

O RING 10

14

79K8

O RING 10

15

CONTROL VALVE See Illustration VALVE SECTION - INLET/ B1305 See Illustration VALVE SECTION - LIFT CONTROL/ B1307 See Illustration VALVE SECTION - OUTLET/ A1457 See Illustration VALVE SECTION - AUXILIA

16

CYLINDER See Illustration TILT CYLINDER/ C1456 TILT NLA - tilt - Was 6560924 - A
