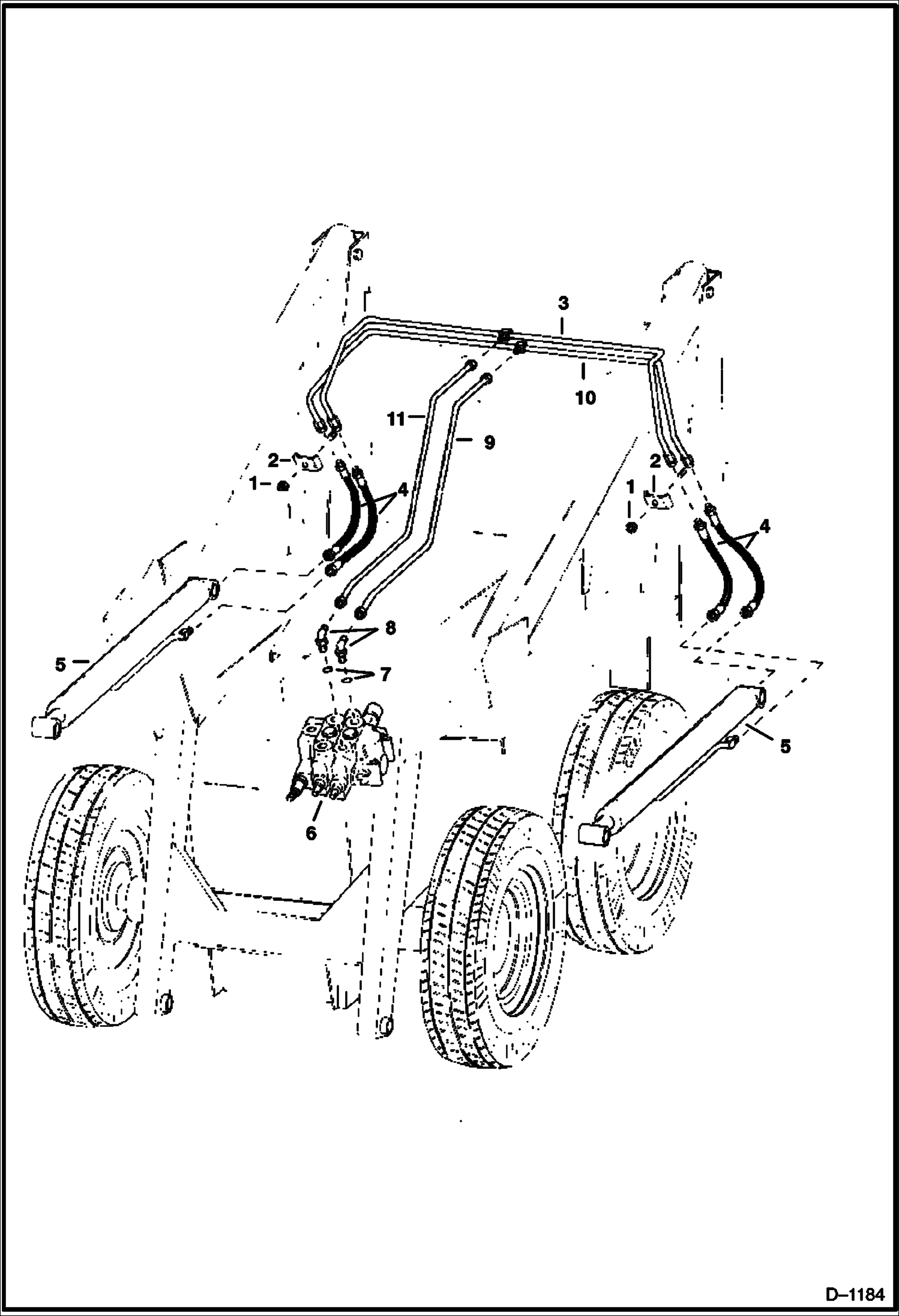

Запчасти Bobcat 300s LIFT CYLINDER CIRCUITRY W/Ward or Cessna Valve HYDRAULIC SYSTEM

1

81D6

NUT

2

6502203

CLAMP tube

3

TUBE NLA - Was 6500544 - A

4

6500832

HOSE

5

CYLINDER See Illustration LIFT CYLINDER/ B20490 See Illustration LIFT CYLINDER/ B20469 LIFT

6

CONTROL VALVE See Illustration VALVE SECTION - INLET/ B1648 NLA - WARD - WAS 6512017 - A

6

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ C1674 NLA - CESSNA - WAS 6510798 - A

7

79K6

O RING 10

8

17K5

ELBOW W/Ref. 7

9

6541573

TUBE

10

6541571

TUBE

11

TUBE NLA - Was 6541572 - A
