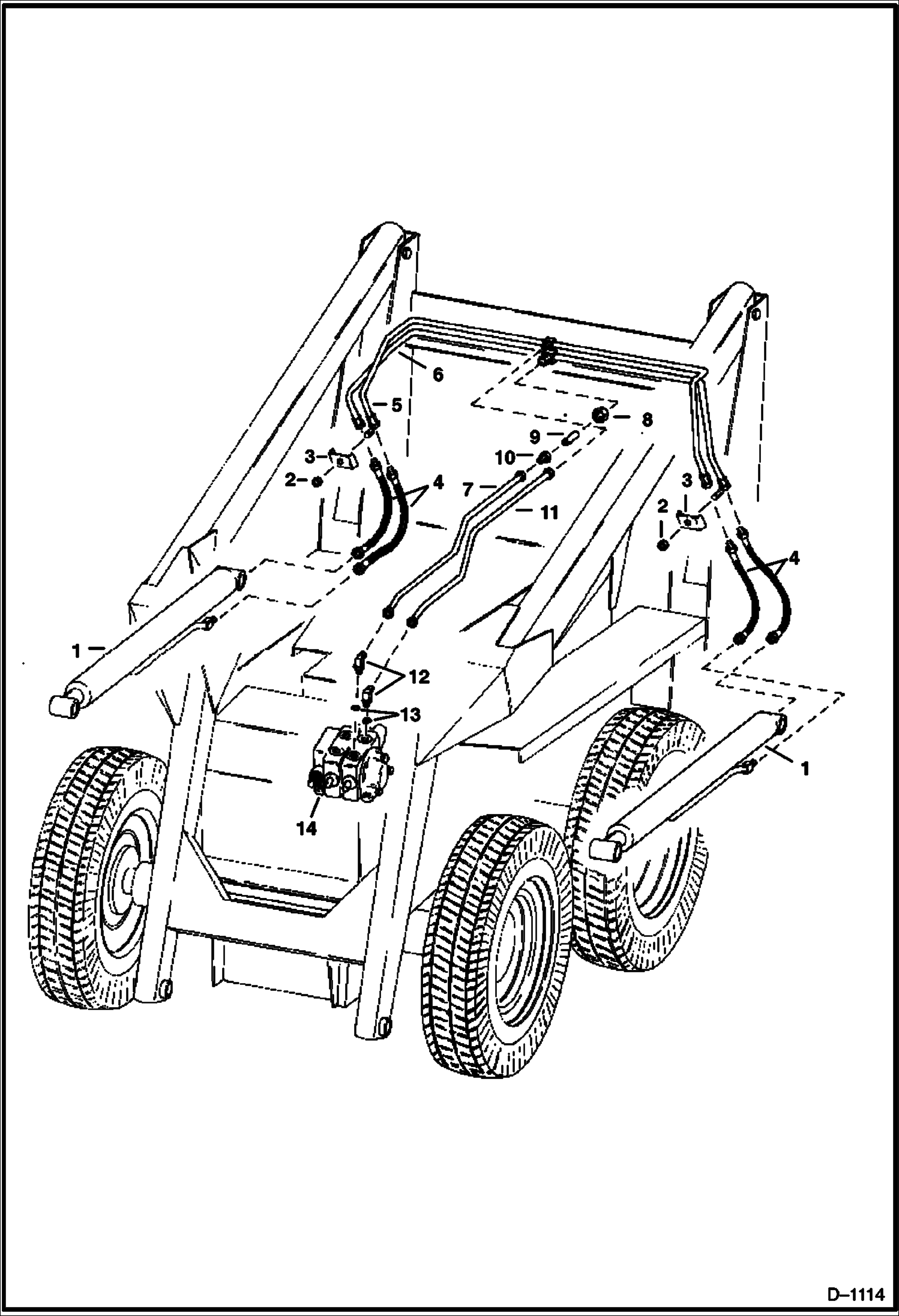

Запчасти Bobcat 300s LIFT CYLINDER CIRCUITRY W/Husco Valve - S/N 4953-B-3130 & Below HYDRAULIC SYSTEM

1

6500768

CYLINDER See Illustration LIFT CYLINDER/ B20490 See Illustration LIFT CYLINDER/ B20469 LIFT

2

81D6

NUT

3

6500989

CLAMP

4

6500832

HOSE

5

TUBE NLA - Was 6500544 - A

6

TUBE NLA - Was 6500745 - A

7

TUBE NLA - Was 6500711 - A

8

80F6

NUT

9

SPOOL NLA - line check - Was 6500344 - A

10

9K3

REDUCER

11

TUBE NLA - Was 6500717 - A

12

17K5

ELBOW

12

17K5

ELBOW

12

1300059

ELBOW

12

1300059

ELBOW

13

79K6

O RING 10

13

79K6

O RING 10

13

79K8

O RING 10

13

79K8

O RING 10

14

CONTROL VALVE See Illustration VALVE SECTION - INLET/ B1305 See Illustration VALVE SECTION - LIFT CONTROL/ B1307 See Illustration VALVE SECTION - OUTLET/ A1457 See Illustration VALVE SECTION - AUXILIA
