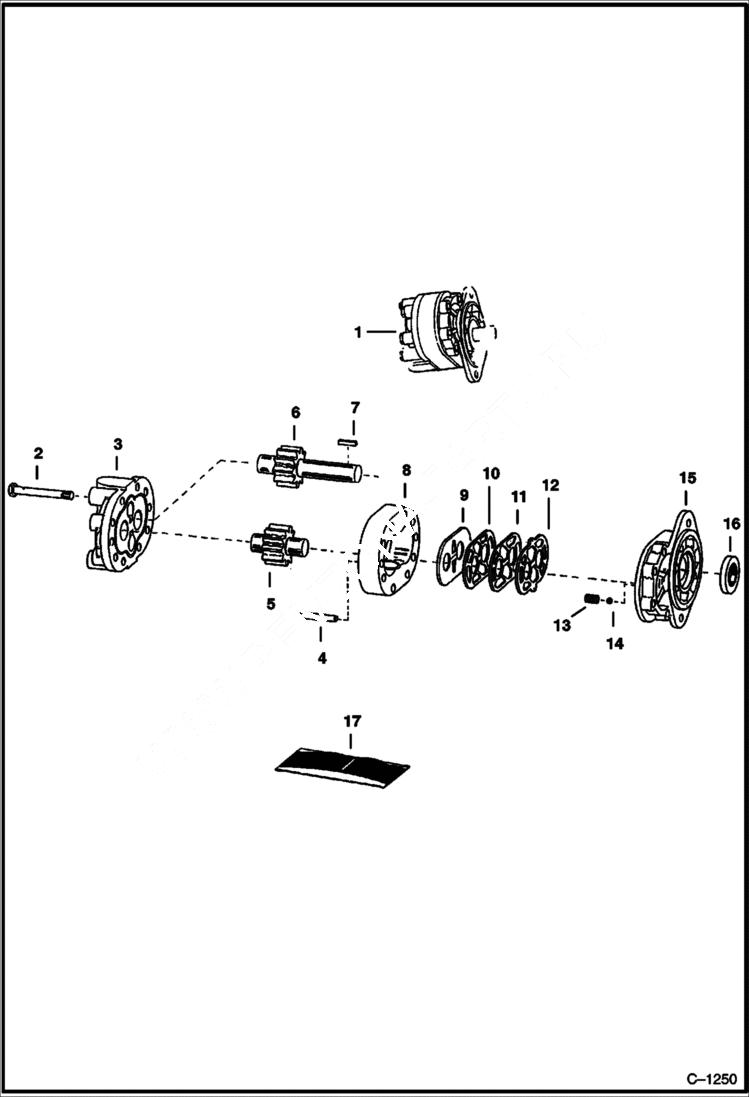

Запчасти Bobcat 300s HYDRAULIC PUMP (Cessna) HYDRAULIC SYSTEM

1

PUMP NLA - Cessna No. 24205 - LAC - Was 6508434 - A

2

93G536

BOLT

3

PLATE NLA - back - W/Bushings - Was 6598368 - A

4

6518740

DOWEL PIN

5

GEAR NLA - idler - Was 6598295 - A

6

6518739

GEAR Drive

7

6598370

KEY Square

8

6518735

BODY

9

DIAPHRAGM NSS

10

GASKET NSS - Phenolic

11

GASKET NSS - Protector

12

SEAL NSS - Molded

13

3490588

SPRING Compression

14

10J7

BALL Steel

15

6598369

PLATE Shaft

16

SEAL NSS - Shaft

17

6516318

SEAL KIT Repair - Ref. 9-14 & 16
