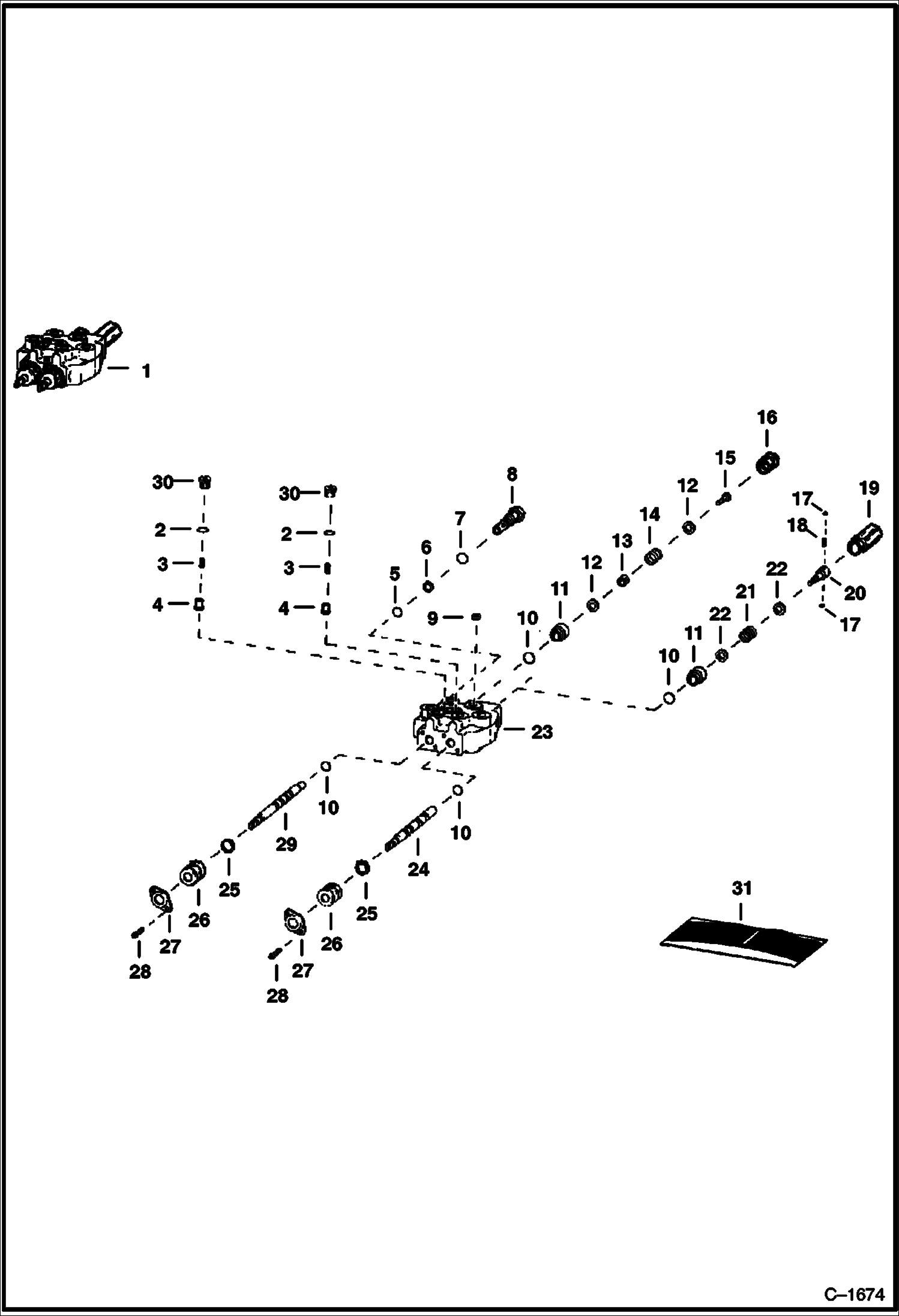

Запчасти Bobcat 300s HYDRAULIC CONTROL VALVE Cessna-S/N 5111 & Above HYDRAULIC SYSTEM

1

VALVE NLA - hydraulic - 2 Spool - Was 6510798 - A

2

58K112

O RING 10

3

1550482

SPRING lift check

4

4149071

PLUNGER L lift check

5

O-RING NSS

6

5290281

WASHER back-up

7

O-RING NSS

8

RELIEF VALVE NLA - Was 6511186 - A

9

ORIFICE NLA - 0.125 - Was 6510805 - A

10

O-RING NSS

11

6510809

BUSHING

12

5290338

WSH steel

13

SPACER NLA - spool

14

6510807

SPRING spool centering

15

6511039

BOLT spool - Was NLA - D

16

6510811

CAP spool

17

949093

BALL chrome

18

6510806

SPRING detent

19

6510810

CAP spool detent

20

6511037

SCREW spool detent - Was NLA - D

21

6510858

SPRING spool centering

22

6510804

WASHER steel

23

BODY NLA

24

SPOOL NLA - float

25

WASHER NLA - breather - Was 5290347B - A

26

5290349

SEAL dust

27

RETAINER NLA - dust seal

28

87G1005

SCREW

29

SPOOL NLA

30

6632473

PLUG lift check - Was 947754B - A

31

SEAL KIT NLA - Ref. 2, 5, 6, 7 & 10 - Was 6510860 - A
