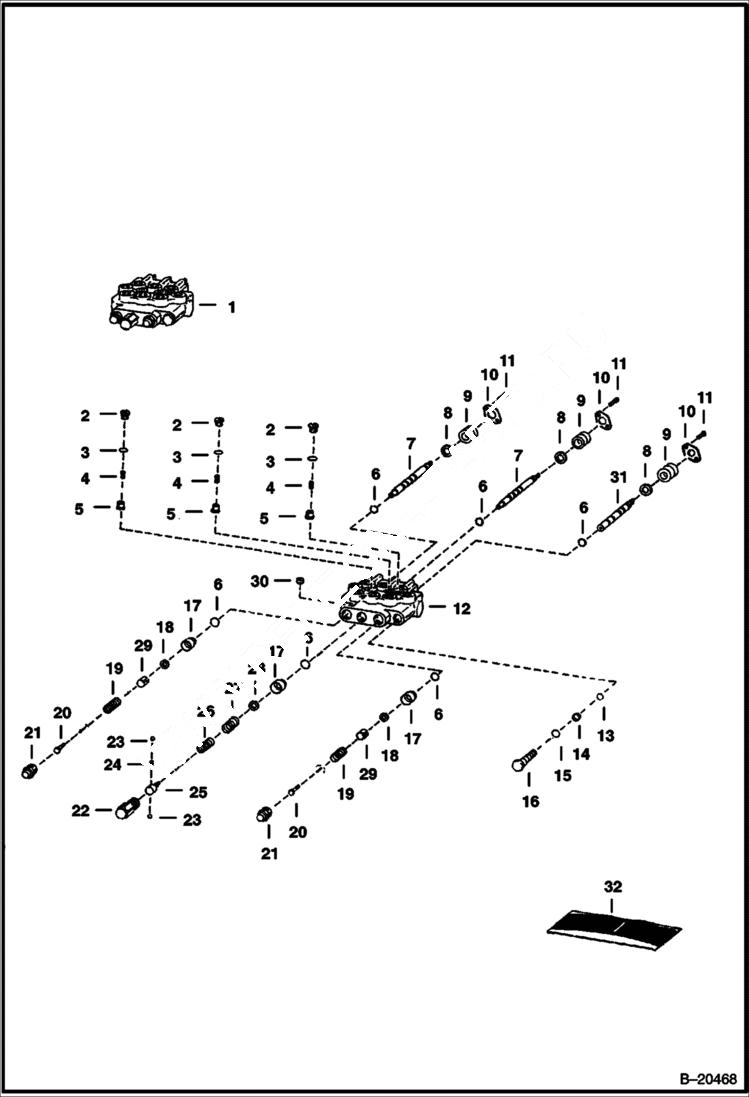

Запчасти Bobcat 300s HYDRAULIC VALVE Cessna HYDRAULIC SYSTEM

1

VALVE NLA - hydraulic - Was 6510735 - A

2

6632473

PLUG W/Ref. 3

3

58K112

O RING 10

4

1550482

SPRING

5

4149071

PLUNGER L

6

25K40020

O RING 10

7

SPOOL NLA

8

WASHER NLA - breather - Was 5290347B - A

9

5290349

SEAL dust

10

RETAINER NSS

11

87G1005

SCREW

12

HOUSING NLA

13

25K30020

O-RING 10

14

73K114

RING back-up

15

25K30024

O RING 10

16

RELIEF VALVE NLA - Was 6511186 - A

17

6510809

BUSHING

18

5290338

WSH

19

6510858

SPRING

20

6511039

BOLT spool

21

6510811

CAP

22

6510810

CAP

23

949093

BALL

24

6510806

SPRING

25

6511038

SCREW spool detent

26

6510807

SPRING

27

6510806

SPRING

28

6511034

WASHER

29

SPACER NLA

30

ORIFICE NLA - 0.125 - Was 6510805 - A

31

SPOOL NLA

32

SEAL KIT NLA - Order Ref. 3, 6 & 13-15 - Was 6511621 - A
