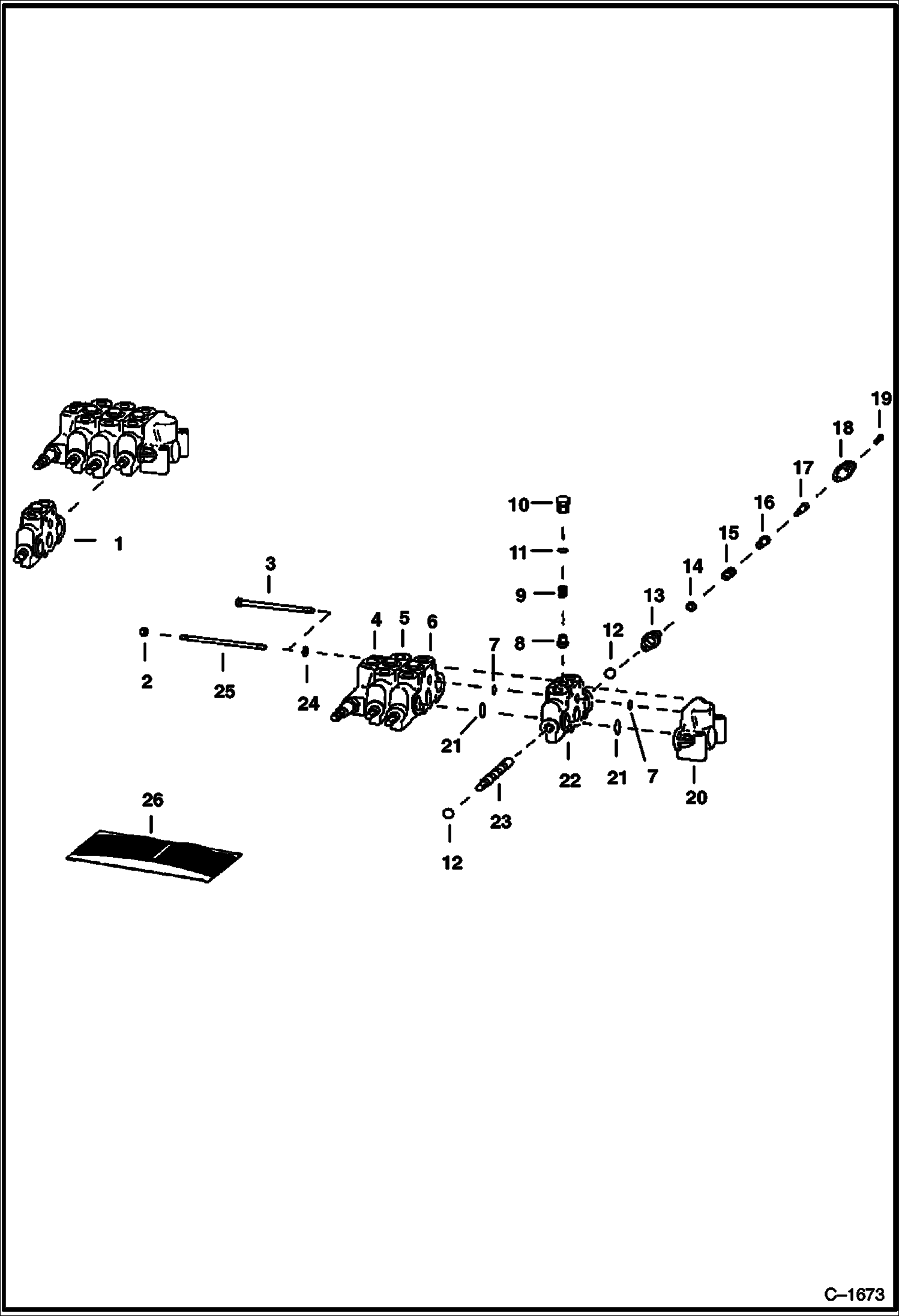

Запчасти Bobcat 300s VALVE SECTION - AUXILIARY CONTROL Ward HYDRAULIC SYSTEM

1

SECTION NLA - valve - Aux. - Was 6519474 - A

2

61D5

NUT

3

17C580

BOLT Use on 2 section valve

4

6511911

SECTION See Illustration VALVE SECTION - INLET/ B1648 VALVE - INLET

5

SECTION See Illustration VALVE SECTION - TILT CONTROL/ B1652 NSS - VALVE - TILT

6

SECTION See Illustration VALVE SECTION - LIFT CONTROL/ C1672 NLA - VALVE - LIFT

7

O-RING NSS

8

6519468

POPPET load check

9

6519467

SPRING

10

6510183

PLUG check

11

79K8

O RING 10 Was NSS - D

12

25K40020

O RING 10 Was NSS - D

13

6510184

SPACER

14

6510185

WASHER

15

SPRING NLA - Was 6519469 - A

16

RETAINER NLA - spring - Was 6519471 - A

17

SCREW NSS

18

COVER NSS - spool - Was 6519465 - A

19

42G1010

SCREW

20

SECTION NLA - Valve - Outlet - Was 6511910 - A

21

O-RING NSS

22

HOUSING NLA

23

SPOOL NLA

24

4E5

WASHER lock

25

ROD NLA - tie - Use on 3 section valve - Was 6510301 - A

26

SEAL KIT NLA - ref. 7 & 21 - Was 6512007 - A
