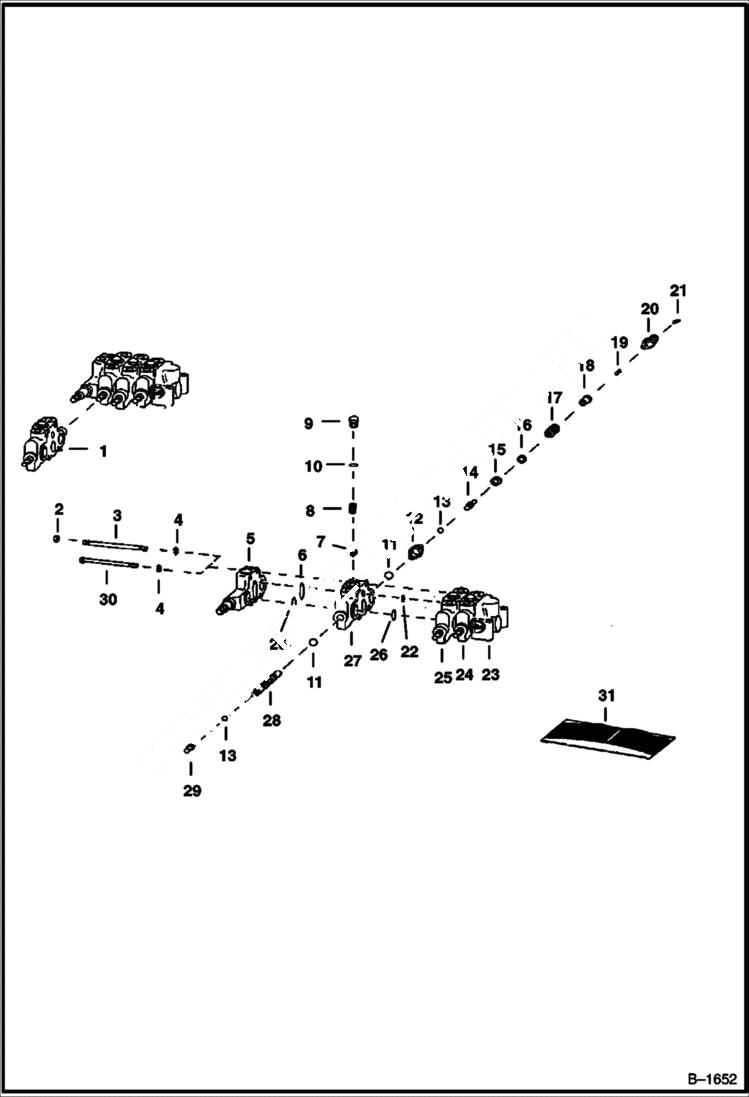

Запчасти Bobcat 300s VALVE SECTION - TILT CONTROL Ward HYDRAULIC SYSTEM

1

SECTION NSS - valve - Tilt

2

61D5

NUT

3

ROD NLA - tie - Use on 3 section valve - Was 6510301 - A

4

4E5

WASHER lock

5

6511911

SECTION See Illustration VALVE SECTION - INLET/ B1648 VALVE - INLET

6

O-RING NSS

7

6519468

POPPET load check

8

6519467

SPRING

9

6510183

PLUG check

10

79K8

O RING 10 Was NSS - D

11

25K40020

O RING 10 Was NSS - D

12

6510184

SPACER

13

25K20012

O RING 10 Was NSS - D

14

6519470

CAP spool

15

6510185

WASHER

16

6510276

WASHER

17

SPRING NLA - Was 6519469 - A

18

RETAINER NLA - spring - Was 6519471 - A

19

6510213

SCREW machine

20

COVER NSS - spool - Was 6519465 - A

21

42G1010

SCREW

22

O-RING NSS

23

SECTION NLA - Valve - Outlet - Was 6511910 - A

24

SECTION See Illustration VALVE SECTION - AUXILIARY CONTROL/ C1673 NLA - VALVE - AUX. - WAS 6519474 - A

25

SECTION See Illustration VALVE SECTION - LIFT CONTROL/ C1672 NLA - VALVE - LIFT

26

O-RING NSS

27

HOUSING NLA - valve

28

SPOOL NLA

29

6519466

CAP spool

30

17C580

BOLT Use on 2 section valve

31

SEAL KIT NLA - ref. 6, 22 & 26 - Between Sections for 2 and 3 section valve - Was 6512007 - A
